Pagina 1/1

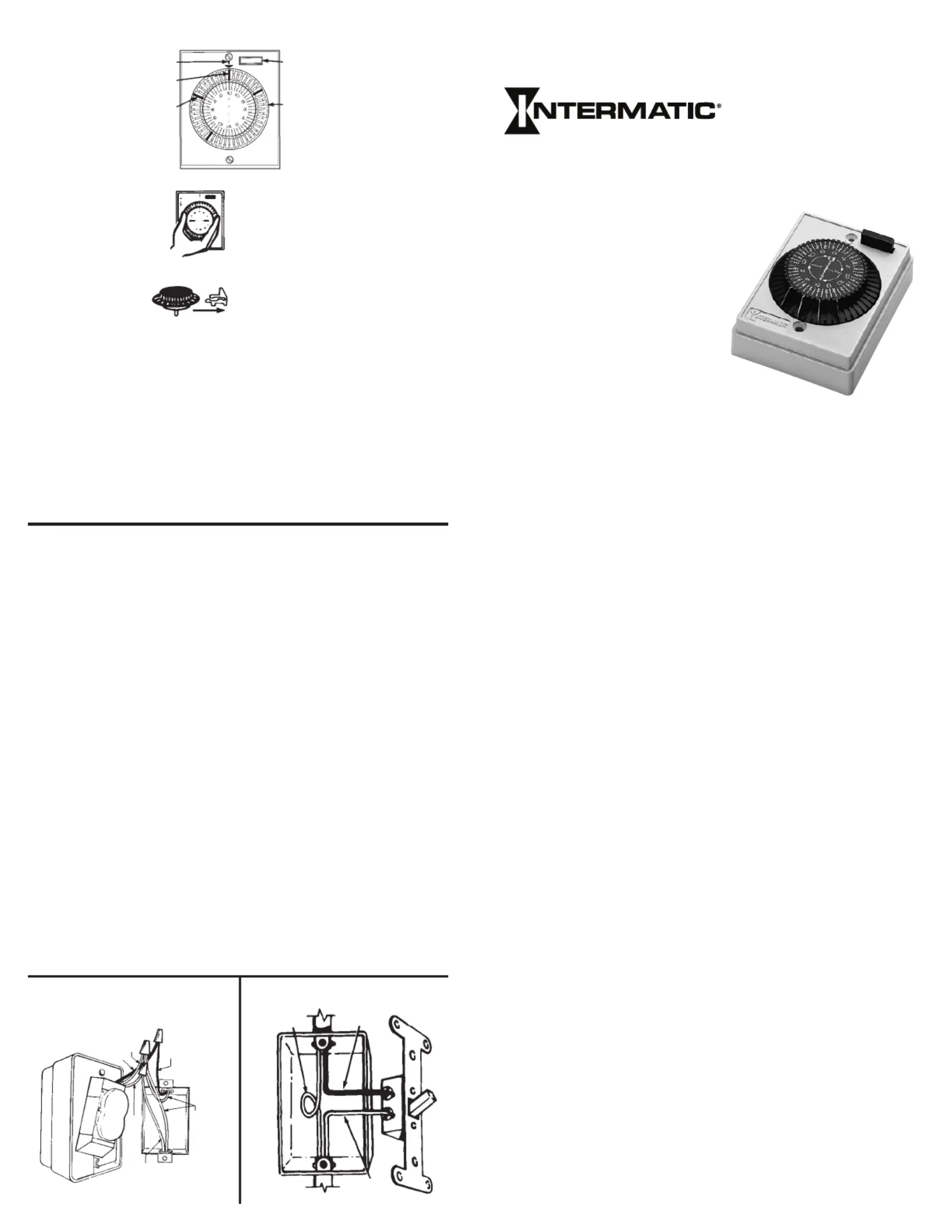

How to install and
operate your NEW
2
4
automatic
in-wall
multiple
program
timer
model: E-1020
FOR AUTOMATIC PROGRAMMING: (REPEATS EVERY 24 HOURS)
1. GRASP TIME-DIAL
FIRMLY, ANDPULL
REMOVE COMPLETE-
LY FROM TIMER.
2. REMOVE ALL ON
TRIPPERS (SILVER) AND OFF
TRIPPERS (BRASS).
USE PENCIL OR
PAPER CLIP IF
NECESSARY.
3. TO PROGRAM TIMER:
FIRST, INSERT TRIPPERSOFF
(BRASS) IN SLOTS FOR DESIR-
ED TIMES, BUT OFF NOT CLO-
SER THAN 2 HOURS APART.
SECOND, INSERT TRIPPERSON
(SILVER) IN SLOTS FOR DESIRED
ON TIMES, BUT NOT CLOSER
THAN 2 HOURS APART. AND ON
OFF TRIPPERS MAY BE SPACED
1/2 HOUR APART FROM EACH
OTHER.
4. REPLACE TIME DIAL, PUSH IN
FIRMLY. IF ANY TRIPPERS ARE
NEAR THE TIME-LINE, ROTATE
TIME-DIAL TO AVOID
INTERFERENCE WITH
MECHANISM INSIDE.
5. TURN TIME DIAL CLOCKWISE
ONE OR MORE REVOLUTIONS
UNTIL CORRECT TIME-OF-DAY IS
OPPOSITE TIME-LINE.
• TO TURN LAMP OR APPLI-
ANCE ON OR OFF MANUALLY
AT ANY TIME, USE MANUAL
CONTROL AS INDICATED.
THIS WILL NOT EFFECT NEXT
AUTOMATIC OPERATION.
• TO STOP AUTOMATIC
OPERATION, (BUT KEEP TIMER
RUNNING) OUTWARD ON PULL
TIME DIAL UNTIL IT CLICKS.
• TO RESUME AUTOMATIC
OPERATION, PUSH INWARD ON
TIME-DIAL.
TO SECURE EXTRA TRIPPERS
ORDER NO., 156EB1945A. FOR
A SET OF 2 ON AND 2 OFF
TRIPPERS.
CAUTION: WATTAGE OF LAMPS OR APPLIANCES BEING CONTROLLED SHOULD
NOT EXCEED CAPACITY OF TIMER.
I
NTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
158EB12392
HOW TO OPERATE YOUR TIMER. . . .
TIME-LINE
“ON” TRIPPER
(SILVER)
“OFF” TRIPPER
(BRASS)
MANUAL CONTROL
TIME-DIAL
THIS IN-WALL TIMER. . . .
. . .is designed to be easily installed in an electrical junction box
to replace a wall switch. The unique MULTIPLE Program feature
enables the user to automatically turn lamps or appliances ON and
OFF several times a day. Functioning as an “automatic” wall switch,
it will follow a preset program and will repeat it every 24 hours.
Nevertheless, the program can be easily changed, manually inter-
rupted or suspended at any time.
HOW TO INSTALL. . .
1. Disconnect your electrical power for safety during installation.
2. Remove wall plate and disconnect light switch. Make sure both
“hot” and neutral wires are present in the junction box. (See
Fig. 1.). If both wires are not present, additional wiring will be neces-
sary before installation can be completed.
3. Connect red timer wire to wire from fixture using wire connector.
Connect black timer wire to the (usually black or red) wire in “hot”
junction box using wire connector. Cut white wire in junction box (or
open splice) and strip 1/2” of insulation on both wires. Connect white
timer wire to white wires in junction box using wire connector. (See
Fig. 2)
4. If the wall switch you are replacing had separate grounding con-
ductors connected to the screw on the switch, make sure GREEN
these wires are now securely connected to the wall box, METAL
or, if your box is non-metallic (plastic) the wires are securely tied
together.
5. Check that all wire connections are secure.
6. Place all wires inside junction box. Fit timer over junction box
first, making sure that all wires and twist on wire connectors clear
the back of timer motor. DO NOT FORCE. Next, install timer using
(2) mounting screws furnished.
7. Reconnect your electrical power. Set timer - see operating
instructions.
FIGURE 1
FIGURE 2
Wire From
Fixture
“HOT”
(Black or Red)
Uncut
white
wire
(or splice)
WIRE
FROM
FIXTURE
WHITE
BLACK
BLACK
WHITE
ONE YEAR LIMITED WARRANTY
If within the warranty period specified, this product fails due to a defect in material
or workmanship, Intermatic Incorporated will repair or replace, at its sole option, the
unit free of charge. This warranty applies only to the original purchaser and is not
transferable. This warranty does not apply to: (a) damage caused by accident, abuse,
mishandling, dropping, acts of God, or any negligent use; (b) units which have been
subject to unauthorized repair, opened, taken apart, or otherwise modified; (c) units not
used in accordance with instructions; (d) damages exceeding the cost of the product.
Some states do not allow a limitation of damages, so the foregoing limitation may not
apply to you.
This warranty gives you specific legal rights and you may have other rights that vary
from state to state.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. THIS WARRANTY IS IN LIEU OF ALL OTHER
EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING
THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY
AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME
DURATION AS THE WARRANTY PERIOD STATED ABOVE.
This warranty service is available by either (a) returning the product to the dealer from
whom the unit was purchased, or (b) mailing postage prepaid to the nearest authorized
service center listed. Please be sure to wrap the product securely when mailing to avoid
shipping damage. This warranty is made by: Intermatic Incorporated / After Sales
Service, 7777 Winn Rd., Spring Grove, IL 60081-9698 / 815-675-7000
http://www.intermatic.com
All wiring and installation must conform to national and / or local electrical codes.
HOUR
FOR SINGLE POLE WALL SWITCH
APPLICATION/REPLACEMENT ONLY
RATED: 15 AMP. MAXIMUM. 12 AMP.
(1500 WATT) TUNGSTEN, 12 FULL LOAD
AMPERES - 125 VOLTS, 60 HZ.
