Pagina 1/28

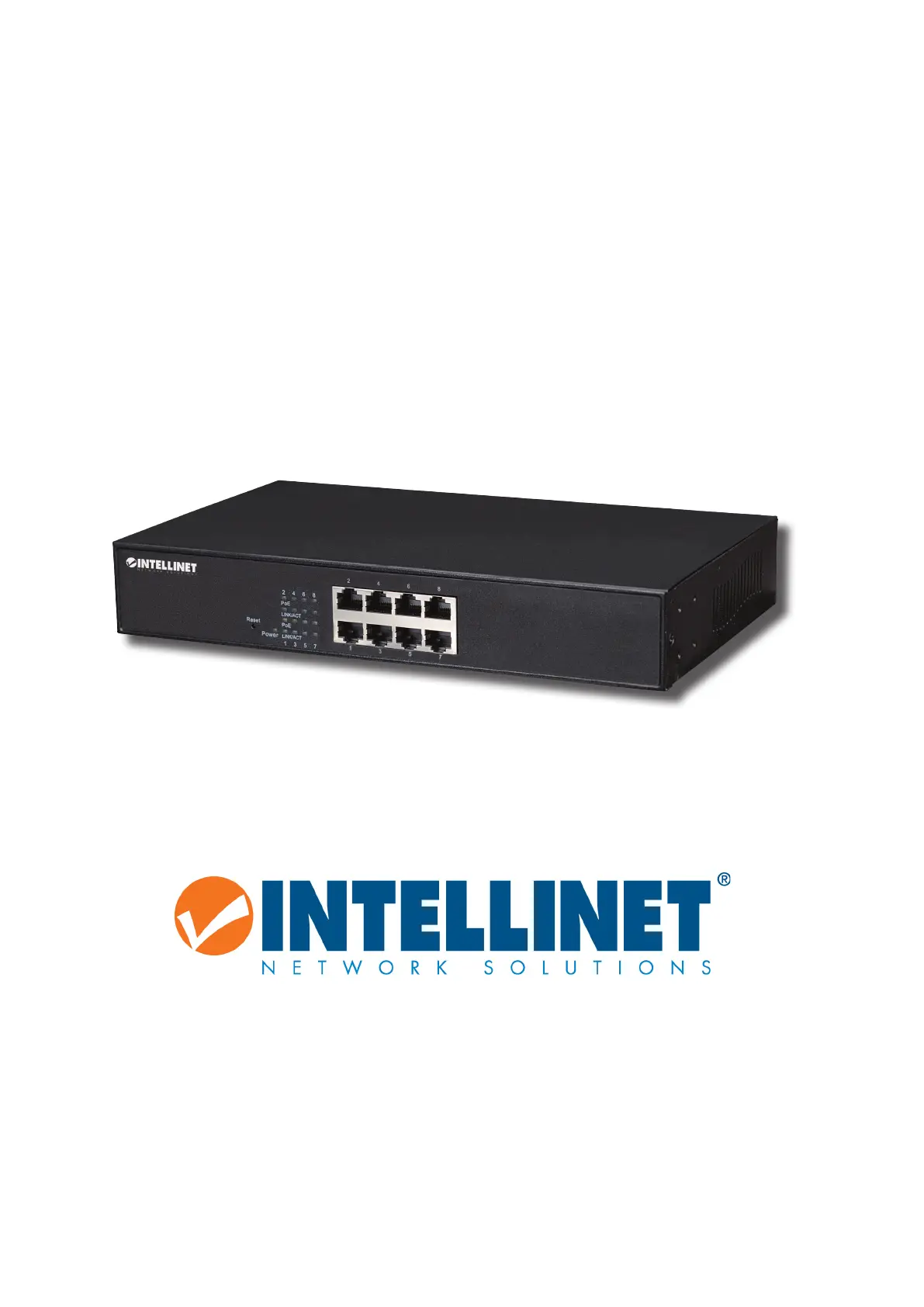

8-PORT PoE

WEB-MANAGED

DESKTOP GIGABIT

SWITCH

USER

MANUAL

MODEL 560542

INT-560542-UM-0314-04

intellinet- network.com

INTRODUCTION

Thank you for purchasing the Intellinet Network Solutions

™

8-Port PoE Web-

Managed Desktop Gigabit Switch, Model 560542.

This handy switch is designed to pass both data and electrical power to a number

of PoE-compatible devices via standard Cat5e or Cat6 network cables.

Easy-to-follow instructions in this user manual help make installation quick and

simple, so you’ll also soon be enjoying the benets of these additional features:

• 10/100/1000 auto-sensing ports automatically detect optimal network speeds

• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports

• Power output up to 30 watts per port*

• Total power budget of 123 watts

• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless

access points, VoIP phones, IP cameras)

• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage

protection

• All RJ45 ports with Auto-MDIX (auto uplink) support

• Web-based conguration

• Provides detailed trafc and power use statistics

• Supports SNMP management

• Supports VLAN (tag-based and port-based)

• Provides IEEE 802.1x port-based security

• Supports link aggregation (trunking)

• Supports port mirroring

• Supports two types of QoS: 802.1p and DSCP

• Broadcast storm control with multicast packet rate settings

• Store and forward switching architecture

• Supports jumbo frames up to 9.6 kBytes

• Supports Rapid Spanning Tree/Spanning Tree protocol

• IEEE 802.3x ow control for full duplex

• Supports up to 8192 MAC address entries

• 176 kBytes buffer memory

• Desktop-size metal case

• Three-Year Warranty

* Total PoE budget for this switch is 123 watts. Per-port average power distribution

is 15 watts; maximum per-port power usage cannot exceed 30 watts.

Some of the following screen images have been modied to t the format of this

user manual.

NOTE: For a quick install procedure, refer to the printed quick install guide enclosed

with this product.

Product specificaties

Merk:	Intellinet
Categorie:	Schakelaar
Model:	560542
Kleur van het product:	Zwart
Gewicht:	1600 g
Breedte:	266 mm
Diepte:	160 mm
Hoogte:	44 mm
Materiaal behuizing:	Metaal
LED-indicatoren:	Ja
Certificering:	FCC Class A, CE
Netwerkstandaard:	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Web-gebaseerd management:	Ja
Luchtvochtigheid bij opslag:	20 - 90 procent
Quality of Service (QoS):	Ja
VLAN=ondersteuning:	Ja
Auto MDI/MDI-X:	Ja
Power over Ethernet (PoE):	Ja
Switchingcapaciteit:	16 Gbit/s
MAC-adrestabel:	8192 entries
10G support:	Nee
Datastroombeheer:	Ja
IGMP snooping:	Ja
Switch type:	Managed
Aantal basis-switching RJ-45 Ethernet-poorten:	8
Aantal Gigabit Ethernet (koper)-poorten:	8
Switch-laag:	L2
Type basis-switching RJ-45 Ethernet-poorten:	Gigabit Ethernet (10/100/1000)
Packet buffergeheugen:	0.176 MB
Jumbo Frames ondersteuning:	Ja
Port mirroring:	Ja
Spanning tree protocol:	Ja
Verbindingsaggregatie:	Ja
Full duplex:	Ja
Koperen ethernetbekabelingstechnologie:	1000BASE-T, 100BASE-TX, 10BASE-T
Beheerprotocollen:	SNMPv1/v2c
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Stroomverbruik (typisch):	130 W
Bedrijfstemperatuur (T-T):	0 - 45 °C
Relatieve vochtigheid in bedrijf (V-V):	10 - 90 procent
Totaal Power over Ethernet (PoE)-budget:	123 W
Aantal Power over Ethernet plus (PoE +)-poorten:	8
Broadcast stormbeheer:	Ja
Store-and-forward:	Ja
Auto-sensing:	Ja
