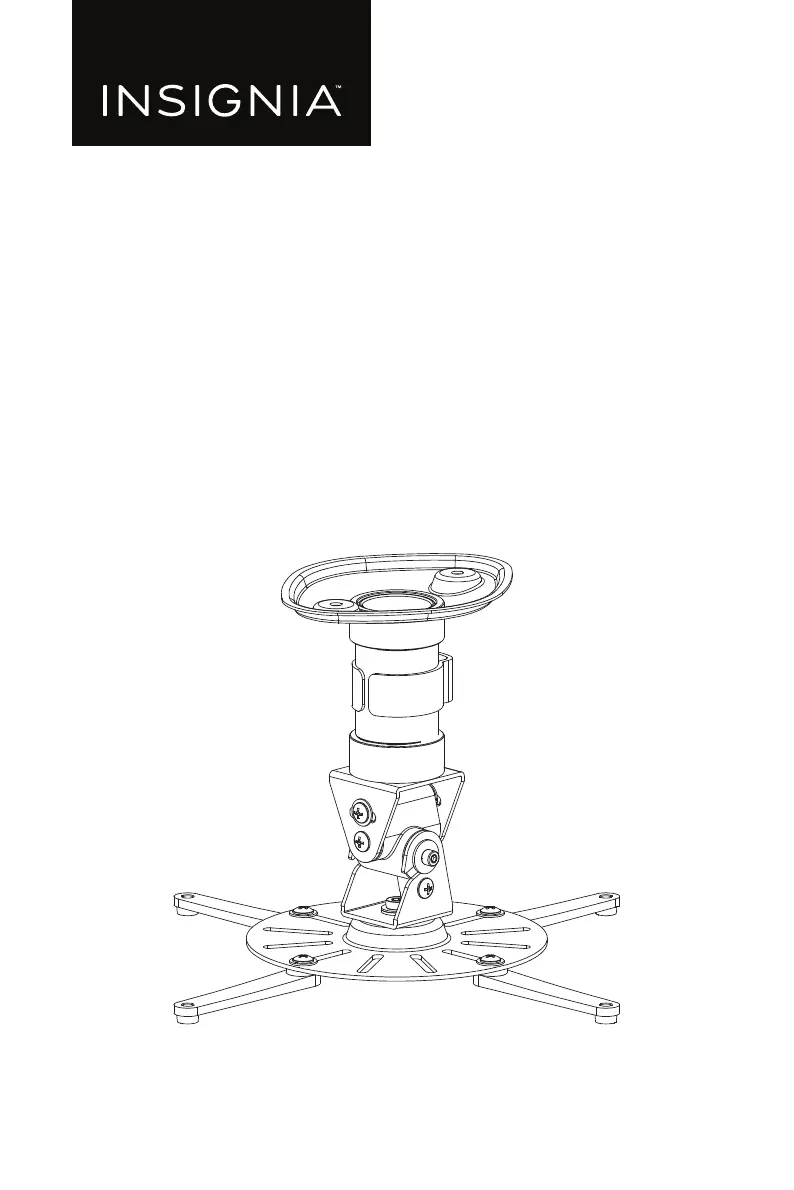

Before using your new product, please read these instructions to prevent any damage.
INSTALLATION GUIDE
Universal Projector
Ceiling Mount
NS-PROJ25
www.insigniaproducts.com
2
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Mounting options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dimensions and mounting hole patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation tools required (not provided) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Step 1: Option 1 - Mounting on a drywall ceiling. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 1: Option 2 - Mounting on a concrete ceiling . . . . . . . . . . . . . . . . . . . . . . .10
Step 2: Assembling the mounting body with the ceiling plate. . . . . . . . . . . .12
Step 3: Attaching your projector to the mounting base . . . . . . . . . . . . . . . . . .14
Step 4: Mounting the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Step 5: Installing the cable clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Step 6: Adjusting your projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Removing your projector from the mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Maintaining your projector mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Introduction
Congratulations on your purchase of a high-quality Insignia product! Your
NS-PROJ25 represents the state of the art in projector mount design and is
designed for reliable and trouble-free performance.
IMPORTANT SAFEGUARDS
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
WARNINGS: To reduce the risk of fire, electrical shock, or injury follow
these basic precautions when using your projector mount.
• Read all instructions before using the projector mount.
• Do not use this product for any purpose not explicitly specified by the
manufacturer. Improper installation may cause property damage or personal
injury. If you do not understand the directions, or have doubts about the
safety of the installation, contact the manufacturer or call a qualified
contractor. The manufacturer is not liable for damage or injury caused by
incorrect mounting, assembly, or use.
