kappa series
10.2t
Thank you
for purchasing the Infinity Kappa Series 10.2t
tweeter. We’ve organized this manual to make your installation as
simple and trouble-free as possible. Please read it thoroughly
before proceeding. Remember to keep your sales receipt with this
manual in a safe place so both are available for future reference.
instructions
1
2
Figure 2.
Mounting the Kappa 10.2t tweeter
using the I-Mount flush-mounting kit.
- 2 -
IMPORTANT:
Installation of automotive
stereo components can require extensive
experience with a variety of mechanical and
electrical procedures. Although these instruc-
tions explain how to install a Kappa 10.2t in a
general sense, they do not show the exact
installation methods for your particular
vehicle. If you do not feel you have the
necessary experience, do not attempt the
installation yourself, but instead ask your
authorized Infinity car-audio dealer about
professional installation options.
WARNING:
Playing loud music in an automo-
bile can permanently damage your hearing,
as well as hinder your ability to hear traffic.
The maximum volume levels achievable
with Infinity speakers, combined with high
power amplification, may exceed safe levels
for extended listening. We recommend
using low volume levels when driving.
Infinity accepts no liability for hearing loss,
bodily injury or property damage as a result
of use or misuse of this product.
S PPEAKER LACEMENT
Kappa speakers are designed to be easily
installed in stock speaker locations. While
mounting your speakers in the original fac-
tory locations will, in most cases, provide
excellent sonic results, the best-sounding
installations are a result of adherence to a
few basic rules.
• For the most spacious stereo image,
place the left and right speakers as far
apart as possible.
• For enhanced center image, place the
left and right speakers so they are
equidistant from the listening position.
If possible, try to place them as far
forward as possible.
• For best treble response when tweeters
are flush-mounted in the I-Mount™
(pat. 5,859,917), aim them at the listening
position by adjusting the tweeter angle in
the cup, tightening the small metal lock-
ing nut behind the assembly and rotating
the entire assembly in its mounting
location before tightening the large
plastic locking nut behind the panel
(see Fig. 2).
INSTALLATION ARNINGS ANDW TIPS
• Always wear protective eyewear when using
any tools.
• Turn off all audio systems and other electrical
devices before you start. Disconnect the (–)
negative lead from your vehicle’s battery.
• Keep components in their package until final
installation. When moving a speaker, always
rest it with the cone or dome facing up. Never
use force to install any speaker.
• Check clearances on both sides of a planned
mounting surface before drilling any holes or
installing any screws. Remember that the
screws can extend behind the surface.
• At the installation sites, locate and make a
note of all fuel lines, hydraulic brake lines, vac-
uum lines and electrical wiring. Use extreme
caution when cutting or drilling in and around
these areas.
CAUTION: In some cars, fuel tanks may be
located directly beneath the rear deck. Check
for adequate speaker basket clearance before
considering this location!
• Before drilling or cutting holes, use a utility
knife to remove unwanted fabric or vinyl, to
keep material from snagging in a drill bit
or saw.
• For door installations, check the clearance with
the windows throughout the range of the win-
dow’s travel, and verify that a mounted speaker
will not interfere with the window crank or
power window mechanism.
• If mounting components elsewhere, check for
clearance around rear-deck torsion bars, glove
box or other structural elements.
• Do not mount components where they
will get wet.
1
2
–
+
T IWEETER NSTALLATION

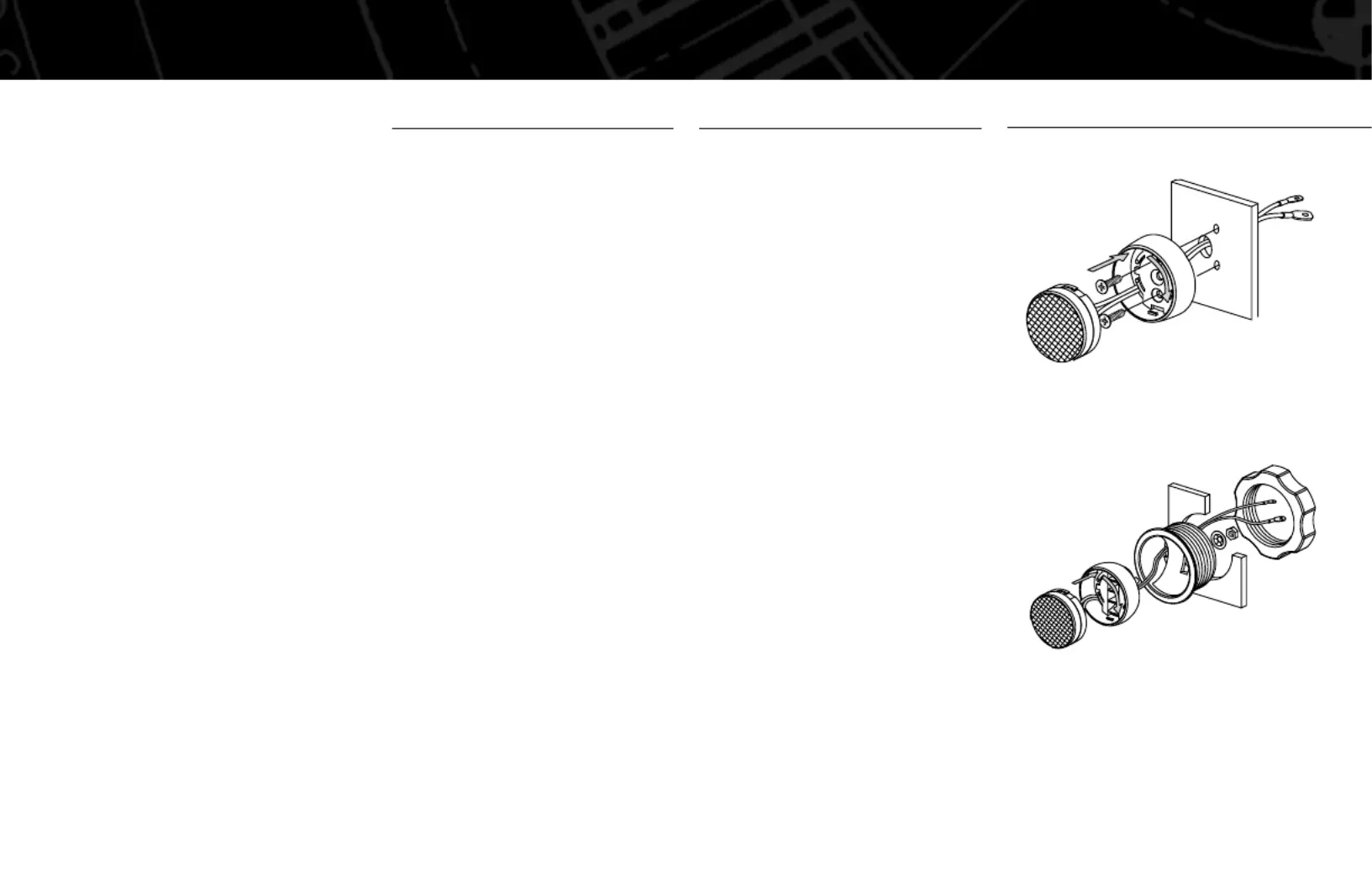

Figure 1. Mounting the Kappa 10.2t tweeter using
the I-Mount surface-mounting kit.
SLIDE UP OR DOWN
TO ADJUST TWEETER
ANGLE
ROTATE TO AIM
ANGLED TWEETER
TO LISTENER
TIGHTEN NUT AND
WASHER TO LOCK
THE ANGLE SETTINGS
1
2
3
- 3 -

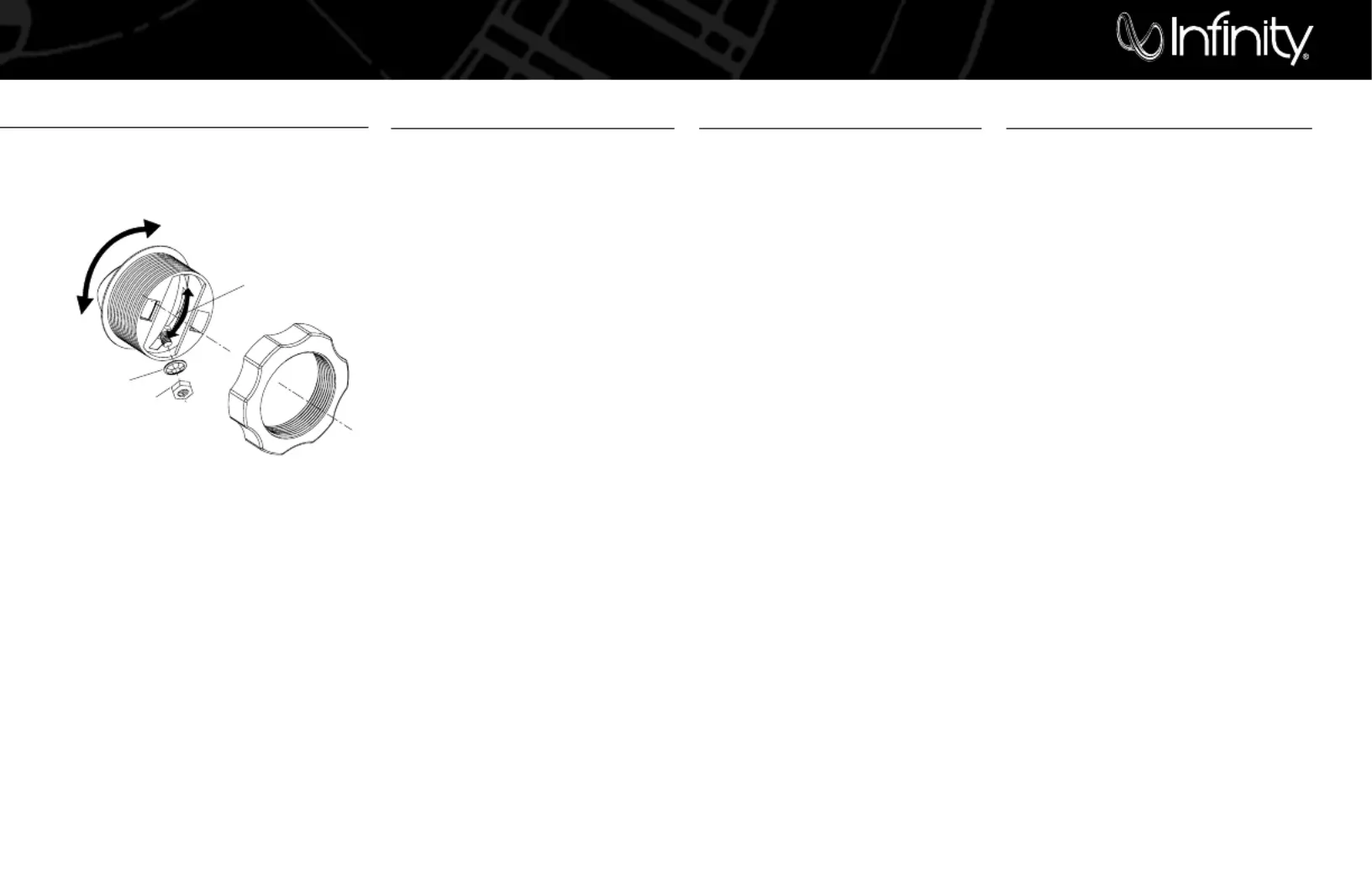

Figure 3. Aim the tweeter at the listening posi-
tion by sliding the stud in the groove on the
back of the tweeter cup and rotating the entire
assembly in the mounting surface. Lock the
tweeter in place using the small retaining nut
and the large plastic mounting nut.
NOTE:
You must use the crossover supplied
with the 10.2t tweeter. The crossover is
contained in the shrink tube attached to the
included speaker wire. If you must shorten
the wire, do not remove the crossover, and
be sure that its orientation is correct (indi-
cated by position of connectors).
A NOTE ON OWER ANDLINGP H
The Kappa 10.2t tweeters are designed to
produce reasonable volume levels with little
amplifier power. However, the addition of
an amplifier to drive your speakers and a
subwoofer will enhance the dynamic range
of your system, and help overcome the
ambient noise in a moving vehicle. Kappa
speakers are designed to handle the power
of a dedicated amplifier driven at or below
its rated power. If an amplifier is driven far
above its rated power, the output signal will
“clip,” and the additional power present in a
clipped signal can damage any speaker.
Distorted or “ ”fuzzy sound from your
speakers is an indication that the amplifier
has exceeded its rated power, and you
should reduce the volume level.
G CENERAL ARE
The loudspeaker grilles may be cleaned
with a slightly damp cloth. Do not use any
cleaners or solvents on the grilles or the
speaker diaphragms.
SPECIFICATIONS
10.2t
Type: Component Tweeter
Speaker Impedance: 4Ω
Power Handling: 50W RMS, 150W peak
with supplied crossover
Frequency
Response (± 3dB): 3.5Hz ~ 21kHz
Sensitivity: 91dB
Crossover Frequency: 3.5kHz
Cutout Diameter: 1-3/4" (45mm)
Mounting Depth: 1-3/16" (31mm)
