Pagina 1/5
ADA-WS-SEC
SECURITY HANDICAP
HAND SINK
INSTALLATION
GUIDE
For Design and Installation Assistance
Call: 800-221-5644
info@imcteddy.com
50 Ranick Drive East Amityville, NY 11701
(P) 800-221-5644 (F) 631-789-8881
www.imcteddy.com
Project Name:
Item #:
Model #:
INTRODUCTION
Installing the IMC Teddy Security Handicap Hand Sink is a straightforward procedure that can be accomplished
with normal construction materials and techniques. Installation procedures may vary due to eld conditions and
state regulations. Please note that the following instructions are recommendations only. These instructions
apply to all Wall Mounted Hand Sink Models. The installer is responsible for proper setting and making sure the
appropriate codes are followed. Please contact the IMC Teddy Engineering Department (800-221-5644) prior
to considering retrot installations. Click here for a video on mounting your equipment on a Z-Clip: https://bit.
ly/3lmZBr2
Please read the attached information carefully, as much of the information provided is reecting proven installa-
tion techniques used in previous installations.

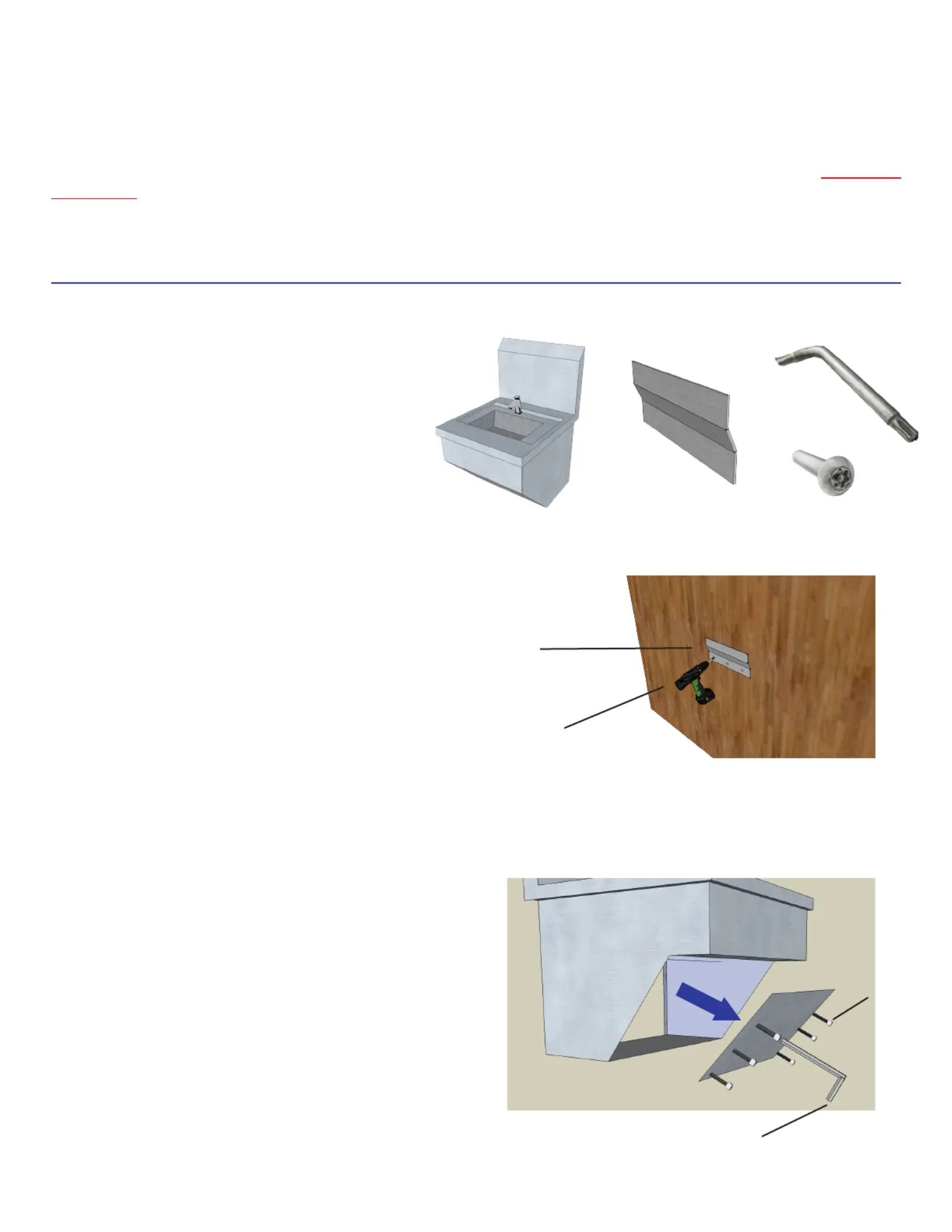

Parts Included
Position z-bracket onto wall at the
appropriate height above the oor
and mark holes for drilling. (Make
sure bracket is level.) Once holes are
drilled screw bracket to wall.
(Hardware not included.)
In preparation for mounting, remove
the bottom apron cover of the sink.
Use the tamper proof screwdriver to
safely remove the screws.
• WS-SEC Hand Sink
• “Z clip” Mounting Bracket
• Tamper Proof Screws (part of apron
cover)
• Tamper Proof Screwdriver
Step 1:
Step 2:
WS-SEC Hand Sink
Z-Clip
Z-Clip
Wall
Drill
Tamper Proof Screwdriver
Tamper
Proof
Screws
Tamper Proof
Screwdriver
Tamper Proof
Screws

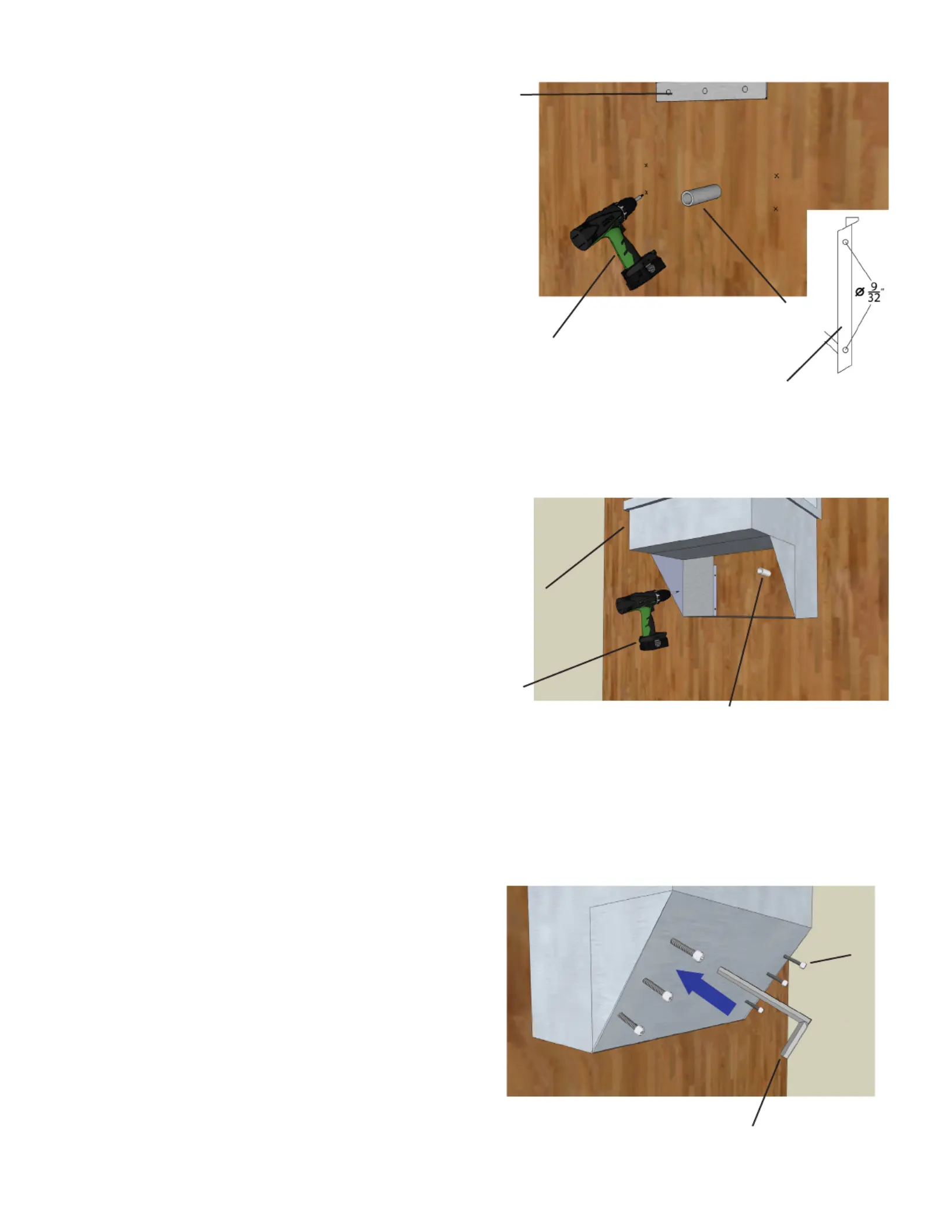

Re-insert the apron cover of the
sink, using the previously removed
tamper proof screws.
Tighten the screws fully with the
tamper proof screwdriver.
Place sink on z-bracket and locate
holes on apron ange at the back of
the sink, mark for drilling. Remove
sink to drill holes.
Place sink back on the bracket, align
the holes and screw apron securely
to the wall.
Step 5:
Step 3:
Step 4:
Drill
Plumbing Pipe
Wall
WS-SEC Hand Sink
Tamper Proof Screwdriver
Tamper
Proof
Screws
Z-Clip
Plumbing Pipe
Wall
Drill
Flange
of Sink
