5. Steam Burst can also be used when holding the iron in a vertical position.
6. After use, discard the remaining water from the water tank.
TABLE GUIDE:
1. Unplug the iron after every use.
2. Allow the iron to cool OFF.
3. Wipe the soleplate with soft damp cloth.
4. From time to time clean the water tank by lling it with water and shake well,
and then discard the water.
5. Never leave the water inside the water tank for long period of time.
Self-Clean Function
The Self-Clean function helps maintain the performance and cleanliness of your iron's
soleplate. It is recommended to use this feature approximately every six months,
depending on usage.
How to Use the Self-Clean Function:
1. Fill the water tank and plug in the iron.
2. Set the temperature control to MAX and allow the iron to fully heat up.
3. Once the iron reaches the maximum temperature, switch to Self-Clean
function for approximately 1 minute.
4. Unplug the iron to allow the remaining water in the soleplate to evaporate
and dry.
5. Important: Always perform the self-cleaning process over a basin or sink to
collect the expelled hot water and steam. Failure to do so may result in hot
water spilling, posing a burn risk to the user.
Warning: Never direct the steam or expelled water toward yourself or others
during self-cleaning.
REMINDER: Please do not forget to register your product warranty through
the warranty registration website at
https://imarflex.ph
Distributed By: Evergood Unlimited Corp.
901 G.Masangkay St., Manila
Made in China

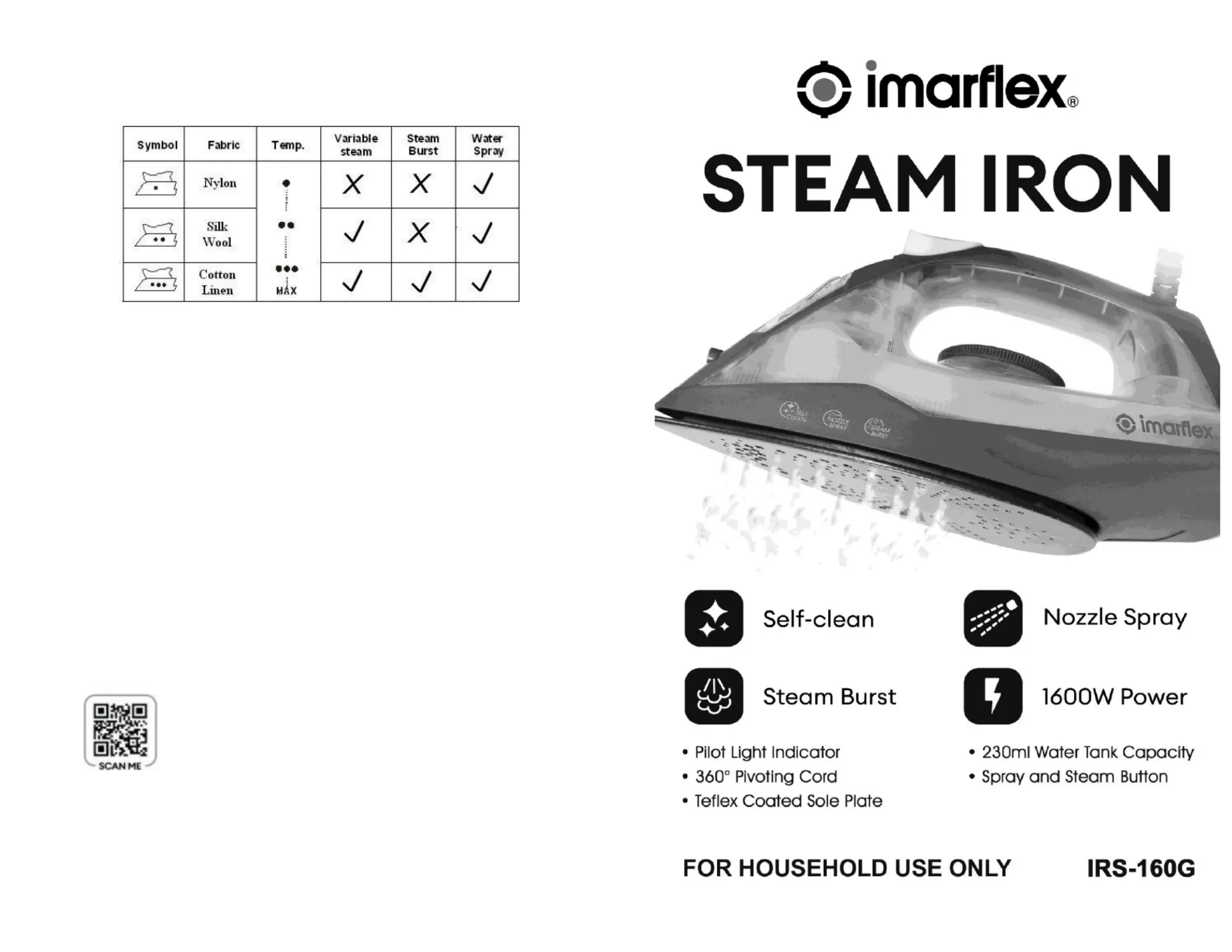

SPECIFICATION:
Model No : IRS-160G
Input Voltage : 0 Va.c. 60Hz 23
Power : 00W 16
Box Dimension : 278x116x138mm
Unit Dimension : 256x112x130mm
Gross Weight : 0.91kgs
Unit Weight : 0.76kgs
IMPORTANT SAFEGUARDS:
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instruction carefully.
2. Before using the unit, check if the voltage indicated corresponds with
convenience outlet (230Va.c. ).
3. Do not use any appliance with a damaged cord or plug. If the cord is
damaged it should be replaced with the same type and size or bring the
unit to the nearest authorized service center.
4. Do not leave the iron unattended while it is connected to the
convenience outlet.
5. Children should be supervised to ensure that they do not play with the
appliance.
6. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliances by a person responsible for
their safety.
7. Do not use two-way socket with another appliance.
8. To protect against electric shock, do not immerse the iron in water.
9. Unplug the iron when lling with water; emptying the tank or after using
the iron.
10. The iron should always be turned OFF before plugging or unplugging
from the outlet.
11. Do not allow cord to touch hot surface of the iron. Loop cord loosely
around the iron before storing.
12. For household use only; not intended for any business purposes
13. Save this instruction for future reference.
DESCRIPTION OF PARTS:
Control Features
1. Steam Burst - Switch to this setting to release a powerful burst of steam—
ideal for eliminating stubborn wrinkles.
2. Spray Button - Press to release a fine mist that helps dampen dicult- -to
iron fabrics.
3. Steam Selector - Slide this button to adjust the continuous steam output.
The "O" position indicates dry ironing (no steam).
4. Water Tank - Used to fill the iron's water reservoir.
5. Nozzle Spray - Directs the water mist when the spray button is pressed.
6. Heat Selector Knob - Turn to select the appropriate temperature for
different fabric types.
Before First Use
1. Remove the protective cover from the soleplate.
2. Set the iron to maximum temperature and iron a piece of damp cloth for
several minutes. This process helps remove any manufacturing residue
from the soleplate.
Note: It is normal for the iron to emit a slight odor during initial use. This will dissipate
after a few uses.
Using as a Dry Iron
1. Plug the iron into a convenience outlet.
2. Set the thermostat control knob to the desired temperature (refer to the
fabric temperature guide).
3. Allow the iron to heat for two minutes while in the heel rest position.
4. The power indicator light will turn ON when the iron is heating.
a. It will turn OFF once the selected temperature is reached.
b. The light will stay o while the temperature is maintained, and will turn
back ON when the thermostat activates to reheat.
5. Always iron synthetic fabrics first at low temperatures. As the temperature
increases, move on to wool, cotton, and finally linen.
Note: The iron heats faster than it cool, so plan the ironing order
accordingly.
6. Allow sufcient time for the iron to reheat when switching from a low to high
temperature setting.
Using as a Steam Iron
1. While the iron is in an upright (heel rest) position, ll the water tank through
the water inlet.
a. Ensure water does not exceed the MAX level indicator (230 ml).
b. Press down the inlet cover securely after filling.
2. Plug the iron into the wall outlet and set the thermostat control knob to the
desired temperature.
3. Keep the iron on its heel rest position while heating.
4. Adjust the variable steam selector to your preferred steam output level.
a. Begin ironing once the soleplate reaches the set temperature.
5. Steam options:
a. Use the Steam Burst Control for intermittent bursts of steam.
b. Press the Spray Button to apply a fine mist of water for tough wrinkles.
6. This iron is equipped with an Anti-Drip Function:
a. During extended use, if the soleplate temperature drops, the iron will
automatically stop water ow to prevent dripping.
b. This ensures no water droplets are released from the soleplate.
Product specificaties
| Merk: | Imarflex |
| Categorie: | Strijkijzer |
| Model: | IRS-160G |
