Quick Start Guide

USB 3-2-1 Raven

™

3204C Pro

4-Port USB 3 (5Gbps), 10GbE LAN or CAT 6a/7 USB-C Extender System

Package Contents:



USB 3-2-1 Raven 3204C Pro LEX



USB 3-2-1 Raven 3204C Pro REX



USB-C Cable



24V 1A AC Adapter



24V 2.71A AC Adapter



2x Country Specic Power Cords



Quick Start Guide

LEX = Local Extender

REX = Remote Extender

For more information about conguring and operating this product,

refer to the complete online user guide aticron.com/3204Cpro.

For technical support, visit icron.com/support.

For sales/general inquiries, visiticron.com/contact.

Before starting, install any required drivers for your USB device(s).

Max 100m

(CAT cable not included)

USB Devices

USB-C Cable

24V 1A AC Adapter

Network ConnectDirect Connect

Host

Max 100m CAT 6a/7 Cable (not included)

Max 100m between extender

and network switch.

Back View

24V 2.71A AC Adapter

USB

USB

USB-CUSB-C

REX

1Gb Ethernet

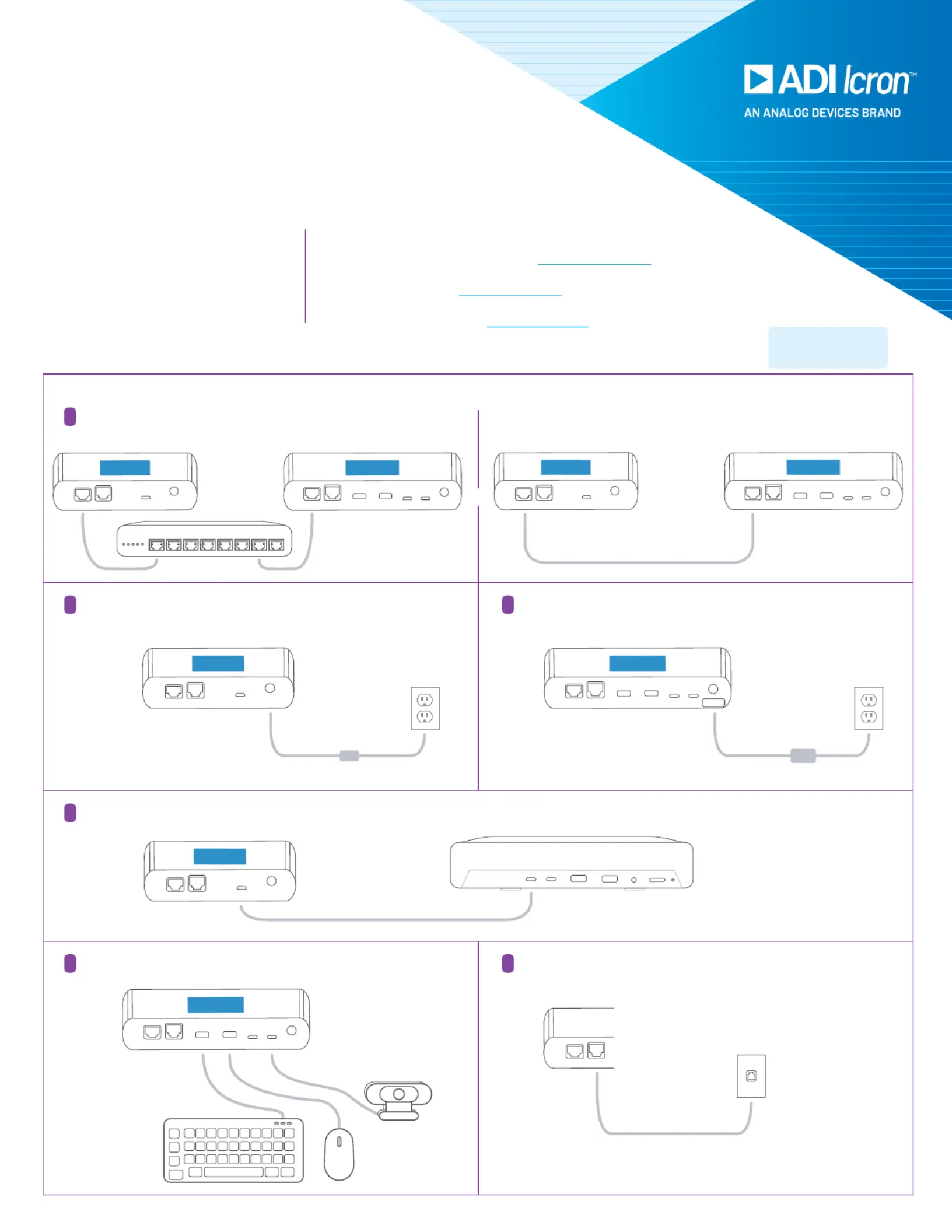

Connect the LEX to the host computer’s USB-C port using the included USB-C cable.

Place LEX and REX where desired and Link in one of two ways:

Power the REX with the included 24V 2.A AC adapter and tighten the 71

locking ring.

Power the LEX with the included 24V 1A AC adapter and tighten the

locking ring.

1

4

23

Optional:Connect the LEX and REX 1Gb Ethernet ports (inner RJ45

connector) to a network or device as necessary for pass-through LAN.

Attach the USB device(s) to the REX.

5

6

Host

LEX

24V 1A

LEX

24V 2.71A

REX

Note: If an outlet is unavailable,

refer to the online user guide for

an alternate LEX powering option.

(b) Connect a CAT 6a/7 cable to the Link ports (outermost RJ45

connector) on the LEX and REX.

Link

LEX

Link

REX

LEX

Link

REX

(a) Connect the Link ports (outermost RJ45 connector) on the

LEX and REX to a 10GBASE-T LAN using a CAT 6a/7 cable.

Link

Network Switch

or
