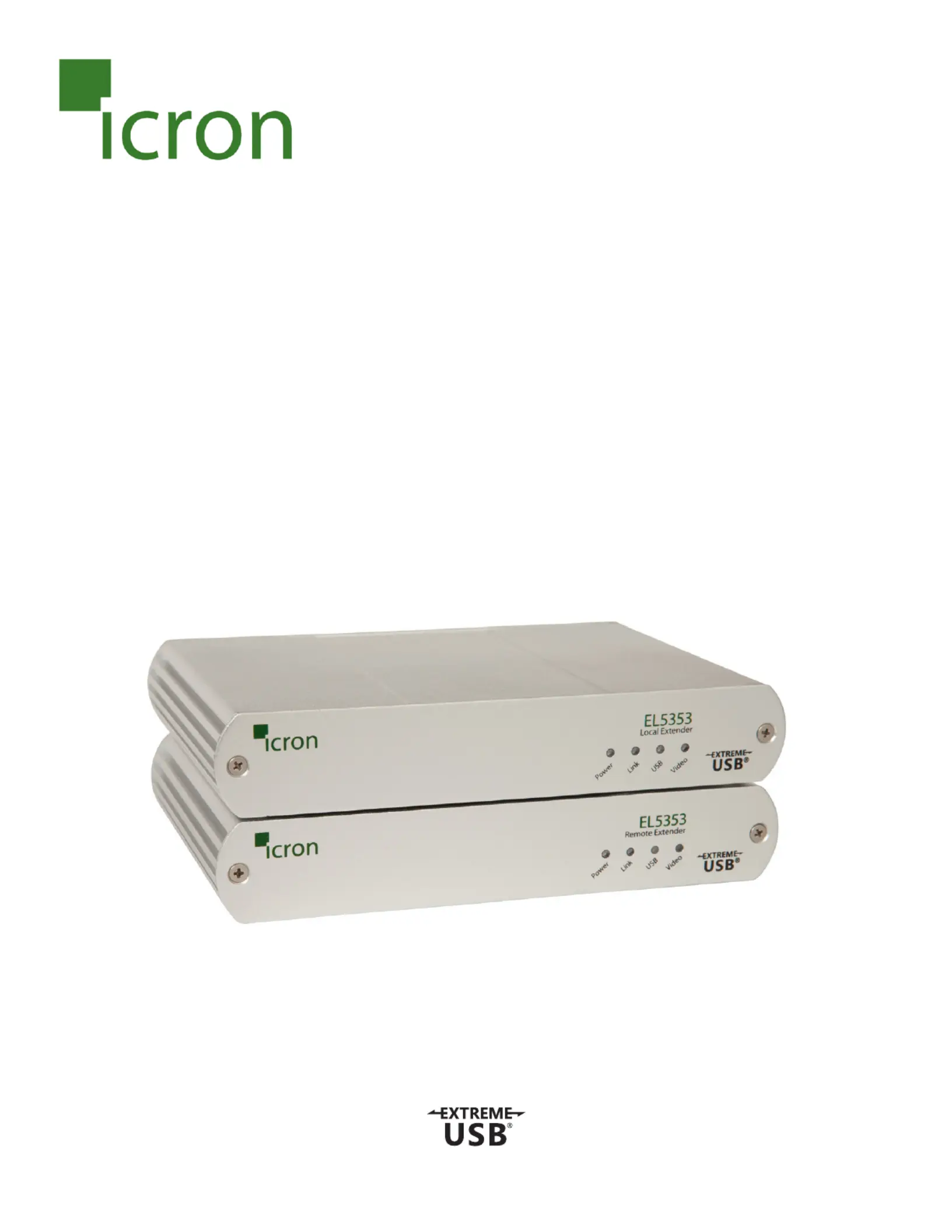

EL5353 DVI + USB 2.0 Extender

DVI and USB 2.0 100m CAT 5e/6/7 KVM Extender System

User Guide

Thank you for purchasing the EL5353 KVM Extender.

Please read this guide thoroughly.

This document applies to Part Numbers: 00-00381, 00-00382, 00-00383, 00-00384, 00-00385.

FCC Radio Frequency Interference Statement Warning

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received

including interference that may cause undesired operation.

CE Statement

We, Icron Technologies Corporation, declare under our sole responsibility that the EL5353, to which

this declaration relates, is in conformity with European Standard EN 55022, EN 61000, and EN 55024.

IC Statement

This Class A digital apparatus complies with Canadian ICES-003.

WEEE Statement

The European Union has established regulations for the collection and recycling of all waste electrical

and electronic equipment (WEEE). Implementation of WEEE regulations may vary slightly by individual EU

member states. Please check with your local and state government guidelines for safe disposal and recycling

or contact your national WEEE recycling agency for more information.

Product Operation and Storage

Please read and follow all instructions provided with this product, and operate for intended use only.

Do not attempt to open the product casing as this may cause damage and will void warranty. Use only the

power supplies provided with this product. When not in use, product should be stored in a dry location

between -20°C and 70°C.

Technologies Corporation logo, and the Icron Technologies Corporation products referred to herein are

either the trademarks or the registered trademarks of Icron Technologies Corporation. All other trademarks

are property of their respective owners. Icron Technologies Corporation assumes no responsibility for errors

that may appear in this manual. Information contained herein is subject to change without notice.

Document #90-01423-A02

Contents

Introduction ...................................................................................................................... 4

Product Contents ...........................................................................................................................................................................4

Requirements .................................................................................................................................................................................. 4

About the EL5353 KVM Extender 4 .............................................................................................................................................

Compatibility and Recommended Setup 5 ............................................................................................................................

The LEX Unit 6 ....................................................................................................................................................................................

The REX Unit 7 ....................................................................................................................................................................................

Installation Guide ............................................................................................................. 8

Installing the LEX Unit ..................................................................................................................................................................8

Installing the REX Unit 8 .................................................................................................................................................................

Connecting the LEX to the REX 9 ................................................................................................................................................

Connecting a USB device 9 ...........................................................................................................................................................

Powering the Extender System 9 ................................................................................................................................................

Checking the Installation 10 .........................................................................................................................................................

Powering the Extender Systems

Troubleshooting Guide .................................................................................................. 11

Specifications .................................................................................................................. 13

Contacting Technical Support ....................................................................................... 14

Warranty Information .................................................................................................... 14

Obtaining Warranty Service ..........................................................................................15

Technical Glossary 16 ..........................................................................................................
