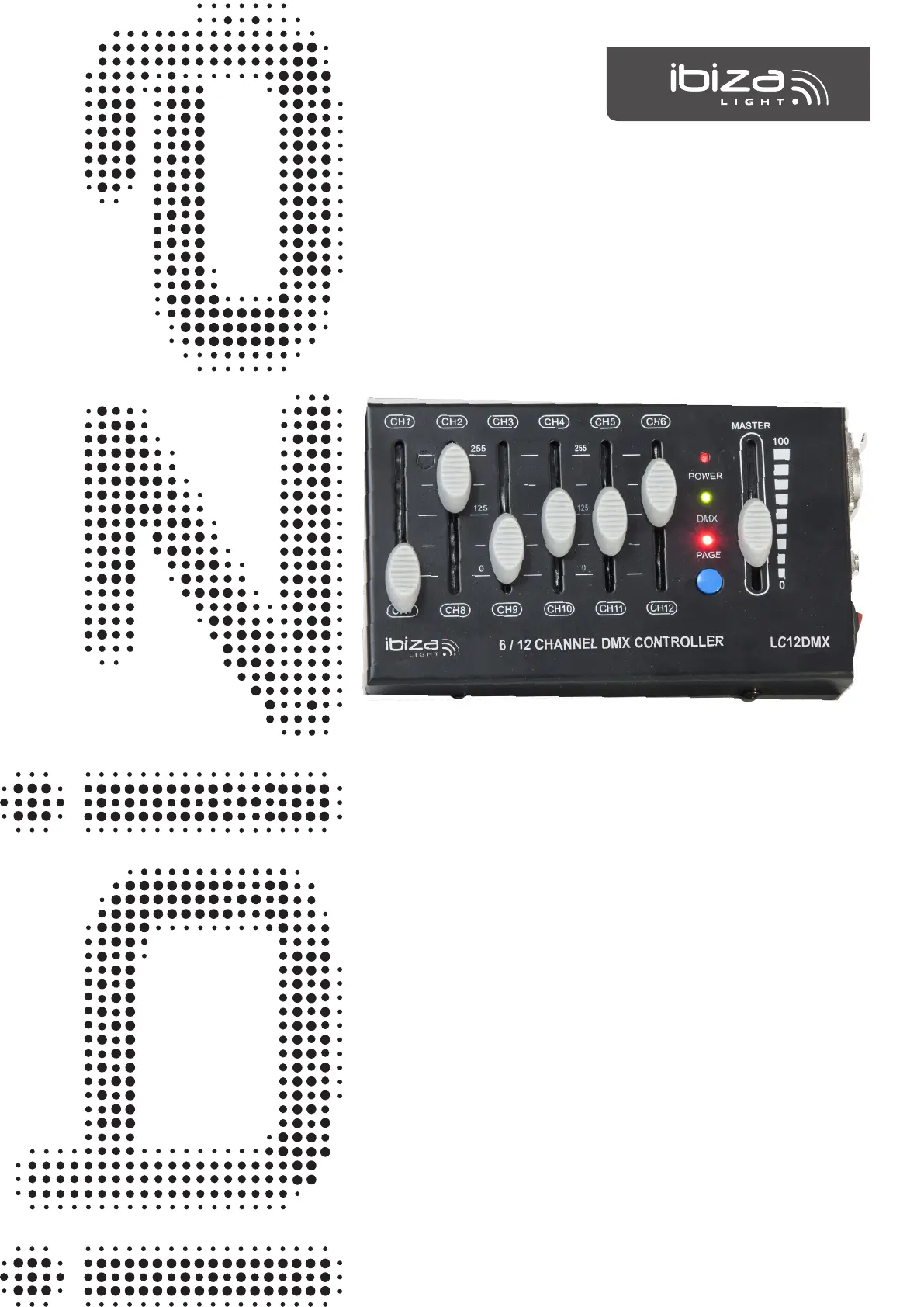

Ref.: LC12DMX

Code: 16-2320

6/12-CHANNEL DMX CONTROLLER

MANUAL

EN - User Manual - p. 2

FR - Manuel d'Utilisation - p. 3

DE - Bedienungsanleitung - S. 4

NL - Handleiding - p. 5

ES - Manual de Uso - p. 6

SI - Navodila za uporabo - p. 7

PL - Instrukcja obsługi - s. 8

IT - Istruzioni per l’uso - p. 9

RO - Manual de Utilizare - p. 10

SW - Användarmanual - s. 11

TR - Kullanım Kılavuzu- s. 12

MANUAL - LC12DMX

©Copyright LOTRONIC 2024

INSTRUCTIONS FOR USE

EXPLANATION OF SIGNS

In accordance with the requirements of UK standards

The product is for indoor use only

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To

prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to

promote the sustainable reuse of material resources. To return your used device, please use the return and collection

systems or contact the retailer where the product was purchased. They can take this product for environmental safe

recycling.

INTRODUCTION

Thank you for using our controller. For your safety, please read the User Manual carefully before operation.

It includes important installation, operation and safety instructions. Please install and operate as requested in

the Manual. Please keep the manual with the controller for any unexpected requirement.

Power the unit o󰊞 when opening the controller or before repair.

We will not take any responsibility to the controller damage, property loss or body injure which is caused by the

incorrect installation, operation and maintenance.

PACKING CONTENT

• DMX controller

• Power supply

• User manual

INSTALLATION

First, put the controller on the desk. Connect the supplied mains adaptor to the DC12V input on the side panel of

the unit.

Connect the unit to a line containing DMX512 compatible light projectors. Plug in the supplied mains adaptor.

OPERATION

• Switch the unit ON via the POWER button on the side panel of the unit.

• The controller will make a self-test.

• The POWER indicator lights up.

• The DMX indicator will 󰊠ash.

• In the initial status, the controller is set on PAGE

1 (CH1-CH6) and the PAGE indicator lights up in

RED.

• If you want to control channels 7-12, press the

PAGE button until the PAGE indicator lights up in

BLUE.

• The Master faders control the total DMX output

values of all channels. Value 0 means that all

DMX outputs are closed.

MAINTENANCE

Please make sure the controller is powered o󰊞 before cleaning or maintaining. Wipe the controller with a soft,

dry cloth. Don’t use alcohol or detergents to clean the housing.

Do not open the housing!

SPECIFICATIONS

Power supply ................................................................................................................................ 12Vdc 0.5A

............................................................................................ via supplied 100-240V~ 50/60Hz mains adaptor

Consumption ............................................................................................................................. 0.7 W / 59 mA

Number of channels .................................................................................................................................. 12

Number of channels per page ....................................................................................................................... 6

Standard control ...............................................................................................................................DMX512

Operating temperature ............................................................................................................. -10°C to 50°C

Dimensions LxWxH .......................................................................................................... 180 x 100 x 35mm

Weight ................................................................................................................................................ 0.592kg
