installation manual

Heat detector, interconnectable radio,

lithium battery 10 years

S157-22X

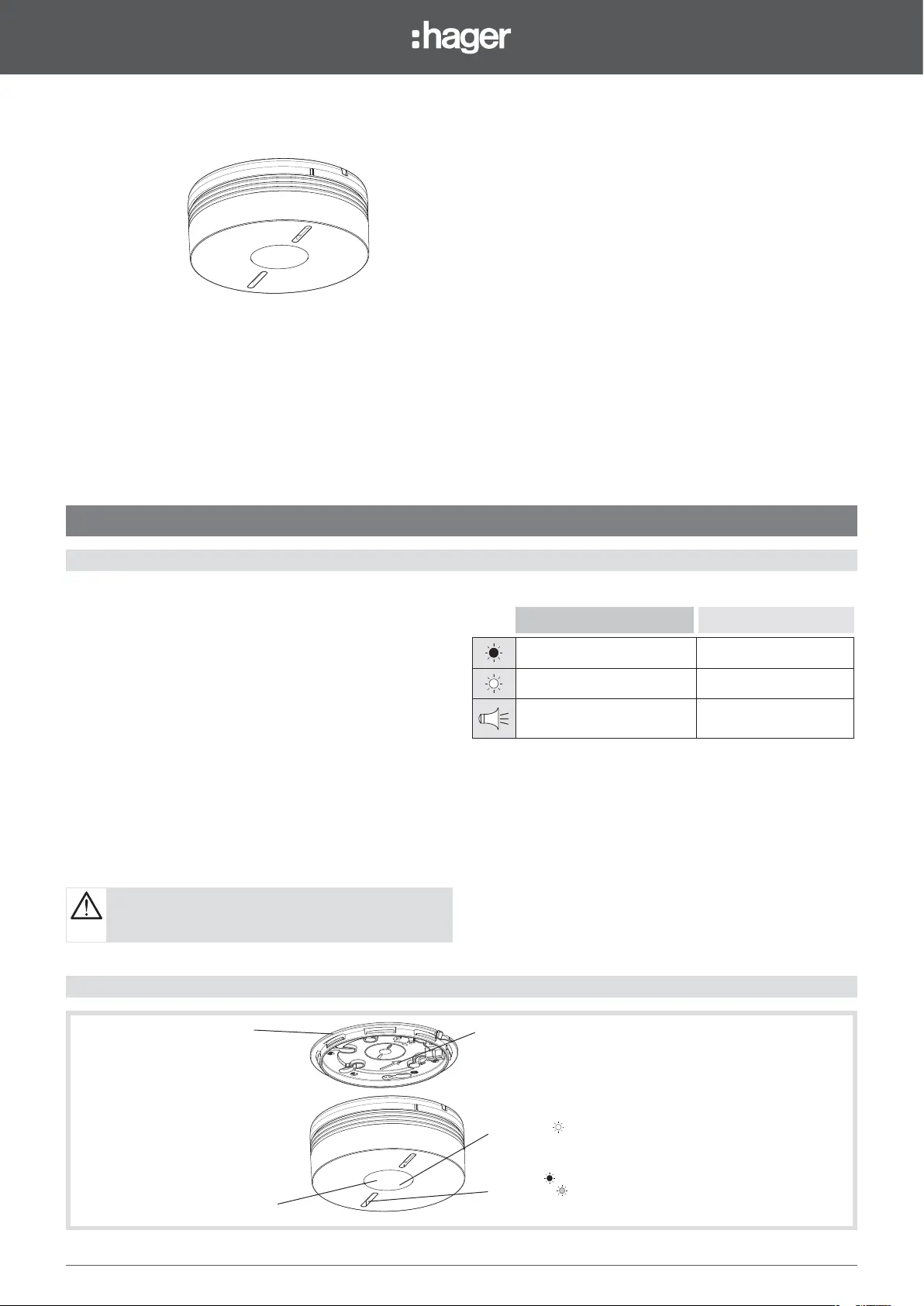

1. Introduction

1.1. How the detector works

1.2. Description

The heat detector is designed to protect the private areas of

apartment buildings, residential properties and mobile

homes.

Heat detection is activated when:

• the rate of elevation of the ambient temperature is

abnormal,

• or the ambient temperature reaches a value between 54

and 70 ° C.

It can be:

• used alone,

• included in a hager alarm system with TwinBand

®

control

panel,

• interconnected in a wireless network with 40 detectors

maximum.

When something is detected, this is indicated as follows:

The detector having detected something sounds until the

smoke have disappeared.

The interconnected detectors trigger in less than one minute

and sound until the smoke detected by the activated

detector have disappeared and for a maximum period of

15minutes.

Connected to a hager alarm system, it causes in addition:

• the triggering of the control panel and radio sirens in fire

modulation for 5 min,

• triggering the phone dialller,

• triggering wired sirens.

Detector activated

Other interconnected

detectors

Rapid flashing

Emergency halo lighting

Triggering of continuous

sounding (85 dB (A) at 3 m)

Triggering of intermittent

sounding (85 dB (A) at 3 m)

Emergency halo lighting

-

Subject to the smoke detector being properly serviced on a

regular basis, it should be replaced according to the

replacement date indicated on the back of the product or

when its battery runs out.

Test button

LED alignment arrow (gives the alignment

axis of the LEDs once the detector has

been locked on to its base)

Red LED (alarm and programming)

Yellow LED (operation)

White LED (emergency halo lighting)

Fixing base

Recommendations

The user must not attempt to access the detector’s internal parts, except areas described in this manual. If the user does access these parts, the product guarantee

will be considered null and void and Hager shall not be held responsible for any problems. Touching the detector’s internal parts and/or electronic components can

damage the product. Furthermore, the detector is designed in such a way that these parts and components do not need to be accessed for operation or

maintenance purposes.
