Pagina 1/5
Step 1
Cabinet /
Back Plate
Installation
Step 2
Connecting the
power section
Step 3
COMMAND /
CONTROL
terminal
connections
Step 4
Power SUPPLY
and
controller
terminal
connections
Step 5
Check
Step 6
Programming
Step 7A
AUT Mode
(Automatic
Control)
Step 7B
AUT Mode
(Remote
Control)
Step 7C
Emergency
Manual
Operation
Step 7D
Padlocking
5. Check
In manual mode,
check the wiring.
If OK power up
the product
LED Green =
“Power”: ON
LED Red =
“Manuel/Defaut”: ON
6LE007764Aa

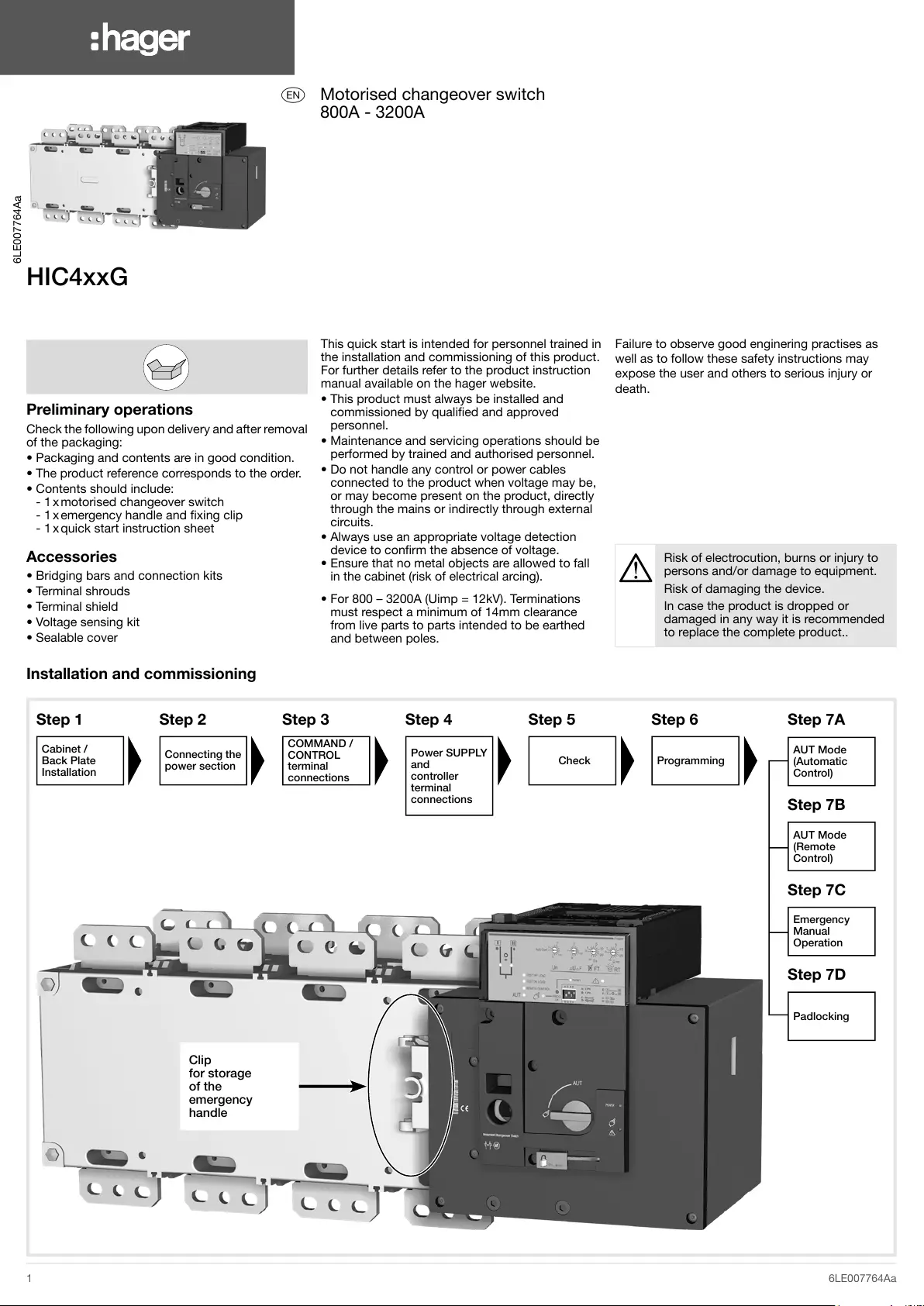

Preliminary operations
Check the following upon delivery and after removal
of the packaging:
• Packaging and contents are in good condition.
• The product reference corresponds to the order.
• Contents should include:
- 1 x motorised changeover switch
- 1 x emergency handle and xing clip
- 1 x quick start instruction sheet
Accessories
• Bridging bars and connection kits
• Terminal shrouds
• Terminal shield
• Voltage sensing kit
• Sealable cover
This quick start is intended for personnel trained in
the installation and commissioning of this product.
For further details refer to the product instruction
manual available on the hager website.
• This product must always be installed and
commissioned by qualied and approved
personnel.
• Maintenance and servicing operations should be
performed by trained and authorised personnel.
• Do not handle any control or power cables
connected to the product when voltage may be,
or may become present on the product, directly
through the mains or indirectly through external
circuits.
• Always use an appropriate voltage detection
device to conrm the absence of voltage.
• Ensure that no metal objects are allowed to fall
in the cabinet (risk of electrical arcing).
• For 800 – 3200A (Uimp = 12kV). Terminations
must respect a minimum of 14mm clearance
from live parts to parts intended to be earthed
and between poles.
Failure to observe good enginering practises as
well as to follow these safety instructions may
expose the user and others to serious injury or
death.
Installation and commissioning
z
Motorised changeover switch
800A - 3200A
1
Preferred source
2
Alternate source
& Position 0 order
éPosition 1 order
" Position 2 order
' Zero position priority order
( Remote Control Enable (Priority over Auto)
§ Product Available output (Motor)
è Position II aux contact
! Position I aux contact
ç Position 0 aux contact
a O/P to HZI910 remote display
z Product available output (ATS)
e I/P Inhibition of the ATS controls
r I/P Manual retransfer
tS2 Stability Time Bypass: 2AT
yPriority to TEST ON LOAD: TON
uTEST OFF LOAD Signal: TOF
iTEST ON LOAD Signal: TON
oNot used
pContact “Start/Stop Genset”: if S1
is not available the NC contact le
contact (71-72) is close
qContact “Start/Stop Genset”: if S1
is not available the NO contact le
contact (71-74) is open
sVoltage Sensing Inputs
dPower Supply Inputs
fOption module slots 1 to 4
Example: control wiring for a 400VAC application having a 3 phase and neutral supply
4. Power supply, sensing and control wiring
Use cables with 1,5 to 2,5 mm
2
section.Screw M3Tightening torque: min.: 0.5 Nm - max.: 0.6 Nm
Recommanded to use
the voltage sensing kit
ATS Power Supply input II
Power Supply II - L
Power Supply II - N
208-277 VAC ±20%:
50/60 Hz
ATS Voltage Sensing input
Source supply II
S II - Phase 1
S II - Phase 2
S II - Phase 3
600 VAC (ph-ph) max
S II - Neutral
332 VAC (ph-n) max
ATS Module Control Inputs
(Fixed)
Contact
Genset Start/Stop
(Product available)
Signal
ATS Power Supply input I
Power Supply II - L
Power Supply II - N
208-277 VAC ±20%:
50/60 Hz
ATS Voltage Sensing input
Source supply II
S I - Phase 1
S I - Phase 2
S I - Phase 3
600 VAC (ph-ph) max
S I - Neutral
332 VAC (ph-n) max
ATS Module Control Inputs
(Fixed)
ATS Module Output Contact
(Product available)
Remote interface
RJ45 - to HZI910
2
104103
31231331431531631763A64A24140413
RJ
102101
105106
414413415416417
64B63B
72
201
71
202
205206204203
210209208207
74
1
F1
F2
L1L2L3N
L1L2L3N
HZI910
Clip
for storage
of the
emergency
handle
4.
3.
3. CONTROL/COMMAND terminals
Ensure that the product is in Manual Mode.
Orientation
RecommendedOK
OKNO
Dimensions in mm
Door cut-out for front panel
T
250
C2
1
280
C21
250
M
T
51,5
M51.5
2000A to 3200A
800A to 1600A
800A1000A1250A1600A2000A2500A3200A
4P
M
335467
T
80120
C
391523
338.58.5
50
3310
ø 9
ø 15
800A to 1000A
16 x 11
60
28.515.7515.75
28.515
1250A
15
5
5
12.5
25
25
30
30
45
45
90
ø12.5
1600A to 3200A
1. Installation
2. Power terminal connections
Use terminal lugs, rigid or exible busbars.
800 A1000 A1250 A1600 A2000 A2500 A3200 A
Minimum Cu
cable section
at Ith
(mm
2
)
2 x 185-
Minimum Cu
busbar section
at Ith
(mm
2
)
2x50x52x63x52x63x72x100x5 3x100x52x100x103x100x10
Maximum Cu
cable section
(mm
2
)
4 x 1856 x 185-
Maximum Cu
busbar width
(mm)
63100
Type of screw
M8M10M12
Recommended
tightening
torque
(N.m)
8,32040
Maximum
tightening
torque
(N.m)
132645
Risk of electrocution, burns or injury to
persons and/or damage to equipment.
Risk of damaging the device.
In case the product is dropped or
damaged in any way it is recommended
to replace the complete product.
.
Ensure that the product is
installed on a at rigid surface.
HIC4xxG
6LE007764Aa16LE007764Aa26LE007764Aa3
Slot for optional modules
