Hager ADX420T Handleiding

Bekijk gratis de handleiding van Hager ADX420T (2 pagina’s), behorend tot de categorie Stroomonderbreker. Deze gids werd als nuttig beoordeeld door 15 mensen. Heb je een vraag over Hager ADX420T of wil je andere gebruikers van dit product iets vragen? Stel een vraag

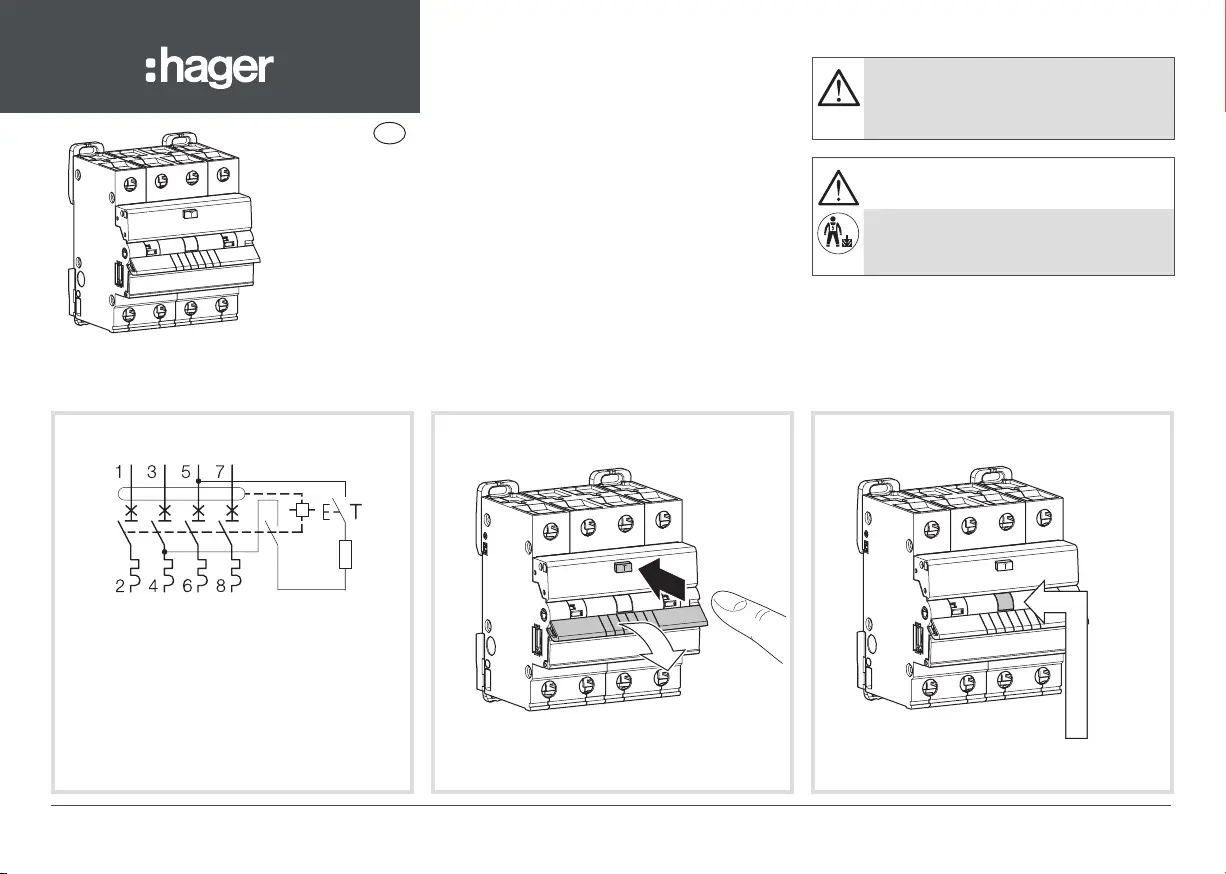

6LE003161Aa

6LE003161Aa1

AU

Miniature circuit breakers

residual current devices

RCBO 6 to 40A

N

N

Positive contact indication

N

N

A

B

N

Electrical connectionEarth leakage fault indication

This device is to be installed only by a

professional electrician tter according to

local applicable installation standards.

For use with neutral on the right only.

Protection against dust

In case of work activities nearby, make sure

that the electrical installation is protected

against dust if the enclosure is not IP5x.

If the RCBO trips OFF, the yellow window

indicates an earth fault.

Please note the following:

1- If RCBO trips OFF after installation,

2 possibilities:

- overloads/short-circuits ➡ MCB trips,

- fault to earth ➡ RCD trips.

2- The “main neutral” and “main earth” should be

checked to ensure good connection.

3- If test button test fails, check for a presence of

voltage on line side terminals.

Test the Safety Switch periodically (approxi-

mately every three months) by pressing Test

button marked “T”.
