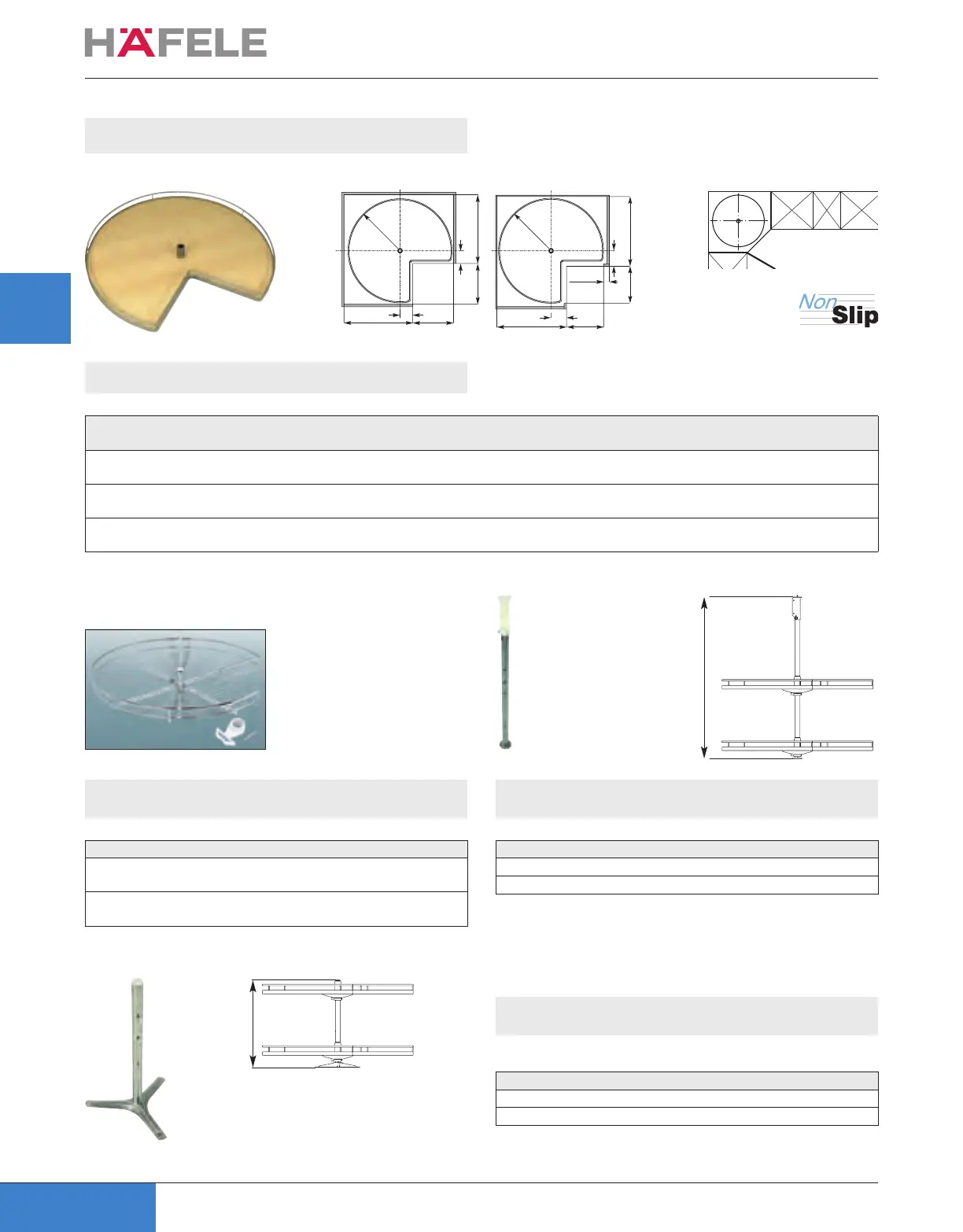

Dimensional data not binding. We reserve the right to alter specifications without notice.

Dimensions in mm

Inches are approximate

www.hafele.com

3

FC 3.10

Kitchen Organization

Corner Solutions

477 (18 13/16”)

655 - 745 (25 13/16” - 29 1/4”)

R

C

Frameless

BA

AB

C

R

F

ED

(1 3/4”)

DE

F

Framed

Arena Plus Tray Set

•Post-mounted

•Withself-centeringcamandpin

Material: Shelf: Melamine; Surround: Steel, powder-coated

SizeRadius RABCDEF

Champagne/

Maple

Chrome/

Maple

Chrome/

White

610

(24")

305

(12")

279

(10 15/16")

358

(14 1/16")

40

(1 9/16")

256

(10 1/16")

377

(14 13/16")

59

(2 5/16")

541.11.811541.11.111541.11.211

711

(28")

355

(14")

294

(11 9/16")

444.5

(17 1/2")

74.5

(2 15/16")

268

(10 9/16")

464

(18 1/4")

94

(3 11/16")

541.11.812541.11.112541.11.212

813

(32")

410

(16 1/8")

321

(12 1/16")

527

(20 3/4")

102

(4")

269

(11 3/8")

546

(21 1/2")

121

(4 3/4")

541.11.813541.11.113541.11.213

Note

Use with posts below

Three-quarter Round Revolving Wire Shelf

•Withself-centeringcamandpin

Height: 3 1/8"

Material: Steel; Finish: chrome

For corner base unitsDiameterItem No.

800 × 800

(31 1/2 × 31 1/2")

Ø700

(27 9/16")

541.18.222

900 × 900

(35 7/16 x 35 7/16")

Ø820

(32 5/16")

541.18.231

Center Post

•Withstandforcabinetbottommounting

•Internalheightmin:477mm(18 13/16")

Material: Steel, plated

Bearing: Plastic

FinishItem No.

matt nickel541.56.891

chrome541.46.291

Center Post

•Heightadjustable 655 – 745 mm (25 13/16 – 29 1/4")

•Mustbemountedtotopandbottomshelfofcabinet

Material: Steel, powder-coated

FinishItem No.

matt nickel541.17.226

chrome541.17.227

Revolving Three-quarter Round Pie-Cut

•Workswithoverlayandinsetdoors

•Shelvesshouldbepositionedaboveorbelowdoorhinges
