Growatt Export Limitation Guide

1.Inverter model

Inverter series list below support the export limitation function by add a Growatt meter:

Growatt 750-3000-S, Growatt 2500-5500MTL-S

Growatt 3000-6000TL3-S, Growatt 7000-11000TL3-S, Growatt 12000-15000TL3-S

Growatt 17000-25000TL3-S, Growatt 30000-50000TL3-S

Note:

1.Make sure inverter with the latest firmware version.

2.Single-phase inverter, make sure the inverter with RS485 communication port.

2.Meter selection

For export limitation function, only Growatt meter are approved.

1-phase meter is Growatt SPM, 3-phase meter is Growatt TPM, 1-phase meter is for single-phase

system export limitation, for 3-phase system, please use Growatt 3-phase meter.

3.Meter connection

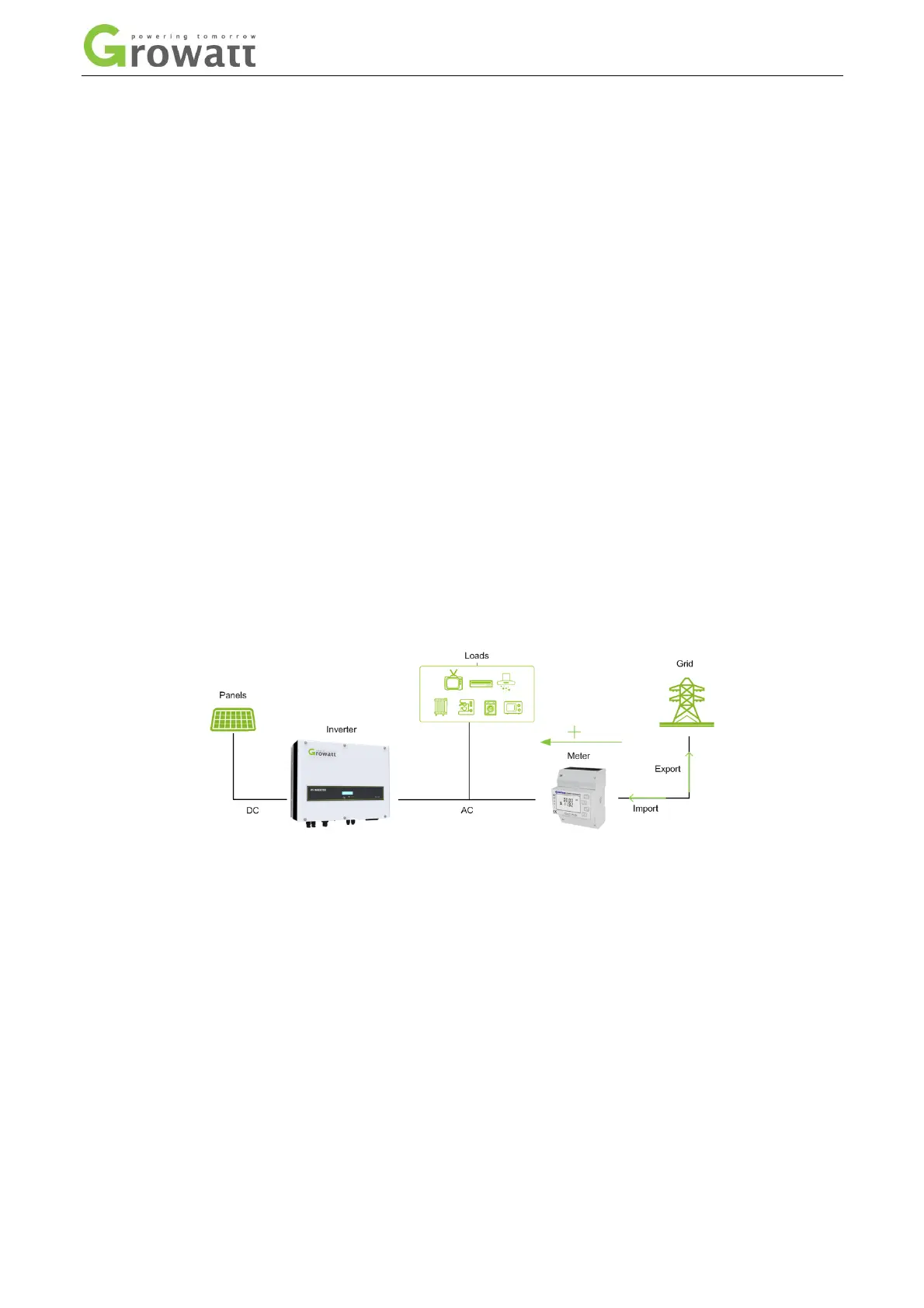

Follow the guide of direction on the meter, follow the arrows on the meter, input side connect to

grid side, output connect to home load side, meter install between grid and load applications as

below picture.

4.Communication with inverter

Inverter and meter communication via RS485 communication port, connect meter RS485 to inverter

RS485 connector as below picture.

Note: check the RS485 ports define in the manual.
