OH 150—USER MANUAL

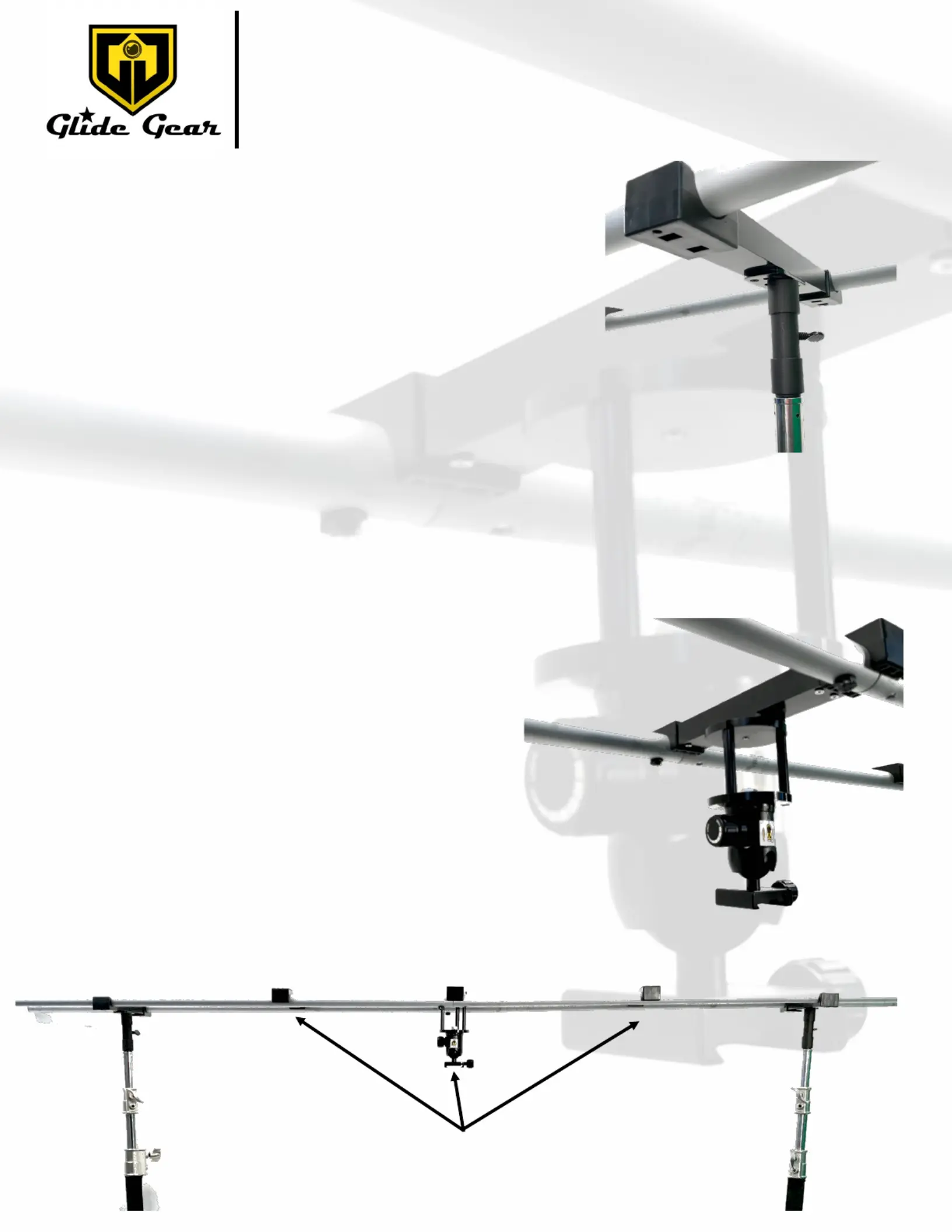

Fig. A

For more informaon please visit our website: www.glidegear.net

Setup

Track Holder with

light stand adapter

Accessory Holders

(1)The OH 150 includes 2 kinds of spacers:

 2x Track Holders: the end caps are facing in the opposite direc-

on than the plate with the 1/420 and 3/816 mounng --

holes.

 3x Accessory Holders: the end caps are facing in the same di-

recon than the plate with the 1/420 and 3/816 mounng --

holes.

A Track Holder is pictured in Fig A. An Accessory Holder is pictured in

Fig. B.

(2) Assemble 2 separate track secons of equal length. The OH 150 comes with 6 x 4 secons so the maximum

length for the OH 150 is 12 ( 2x 12 secons). Make sure to secure the connecon between each track secon

using the supplied hardware

(3)Mount the 2 supplied light stand adapters at the boom of the Track Holders as seen in Fig. A.

Fig. B

(5)Mount the supplied camera plaorm at the boom of one of

the Accessory Holder. See Fig. B.

(6)Place the Accessory Holder at the desired locaon on along

the track. The holders end caps must be facing down. Make ’

sure the track snaps on the end caps.

(7)The OH 150 comes with the GG 33 ball head. Mount the ball

head to the camera plaorm to adjust the camera angle.

(8)The OH 150 comes with a total of 3 Accessory Holders. Use them to mount mulple cameras, lights, mics,

monitors..etc.

(4)Place the 2 Track Holders at the ends of the track. Press in the track

into the end caps unl you hear a snap.

Track Holder with

light stand adapter

Fig. C
