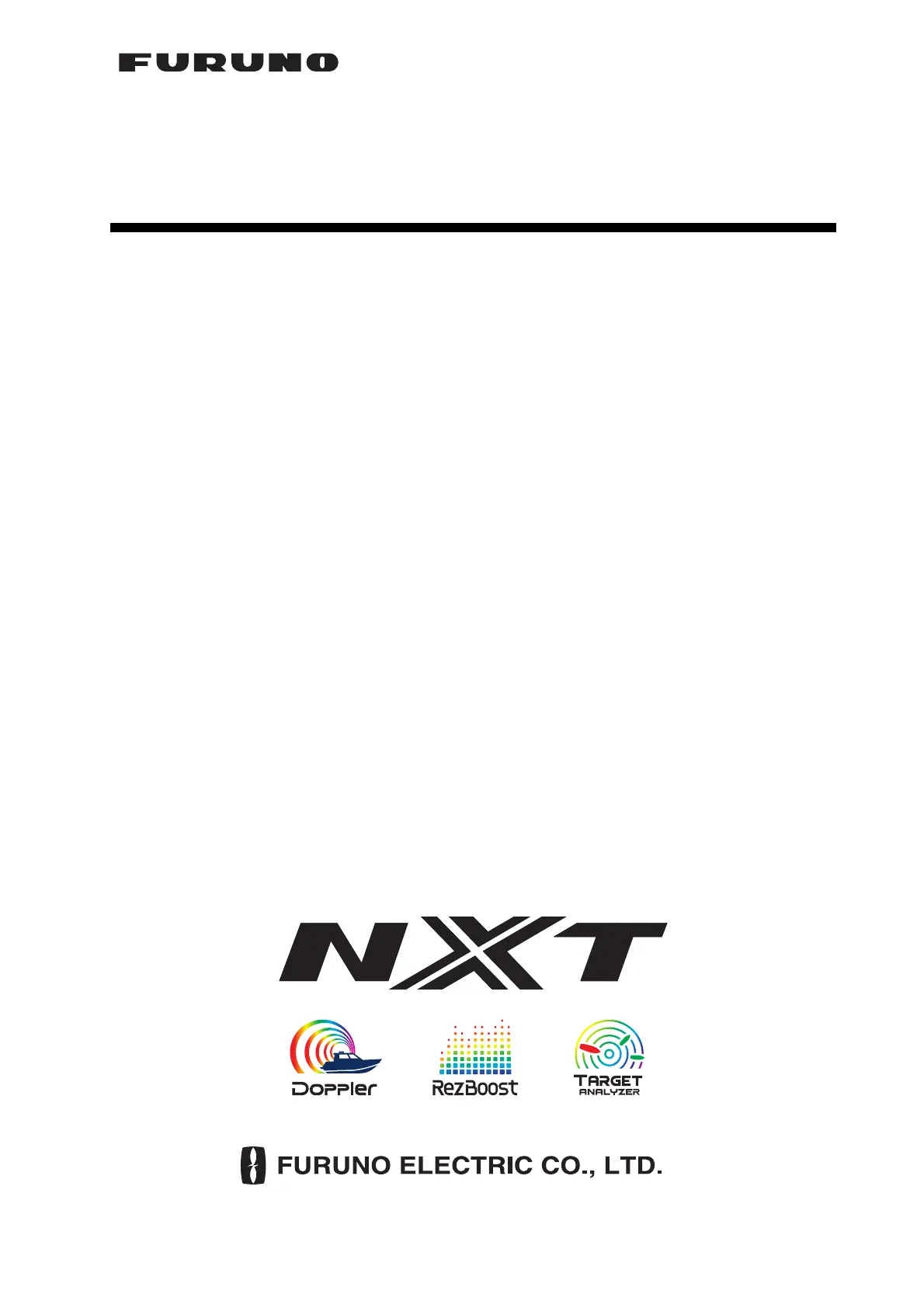

Installation Manual
RADAR SENSOR
Model DRS2D-NXT/DRS4D-NXT
(Product name: SOLID STATE DOPPLER RADAR)
SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION .......................................................................................... iii
EQUIPMENT LISTS........................................................................................................ iv
FOREWORD.................................................................................................................... v
1. INSTALLATION.......................................................................................................... 1
1.1 Installation Considerations....................................................................................................1
1.2 Installation of the Radar Sensor............................................................................................3
1.3 Wiring....................................................................................................................................7
2. INITIAL SETUP........................................................................................................... 8
2.1 Check Points After Installation ..............................................................................................8
2.2 Initial Setup ...........................................................................................................................8
3. MAINTENANCE, TROUBLE- SHOOTING............................................................... 15
3.1 Maintenance .......................................................................................................................15
3.2 Replacement of Fuse..........................................................................................................15
3.3 Troubleshooting ..................................................................................................................16
3.4 Life of Parts.........................................................................................................................16
APPENDIX 1 RADIO REGULATORY INFORMATION ............................................AP-1
SPECIFICATIONS ..................................................................................................... SP-1
PACKING LISTS ......................................................................................................... A-1
OUTLINE DRAWINGS ................................................................................................ D-1
INTERCONNECTION DIAGRAMS.............................................................................. S-1
i
SAFETY INSTRUCTIONS
The installer of the equipment must read the safety instructions before attempting to
install the equipment.
Warning, Caution Prohibitive Action Mandatory Action
Wear a safety belt and hard
hat when working on the
antenna unit.
Serious injury or death can
result if someone falls from the
radar mast.
ELECTRICAL SHOCK HAZARD
Do not open the equipment.
The installation does not require
you to open the radar sensor.
Be sure the power source is
compatible with the voltage
rating of the equipment.
Connection of an incorrect
power source can cause fire or
damage the equipment.
Turn off the power at the power
source before beginning the
installation.
Fire, electrical shock or serious
injury can result if the power is left
on or is applied while the
equipment is being installed.
Do not disassemble or modify
the equipment.
Fire, electrical shock or serious
injury can result.
Use the proper fuse.
Use of a wrong fuse can damage
the equipment or cause fire.
Do not depend one navigation
device for the navigation of the
vessel.
For the safety of vessel and crew,
the navigator must check all aids
available to confirm position.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided,
can result in minor or moderate injury.
CAUTION
WARNING WARNING
WARNING LABEL
A warning label is attached to the antenna unit. Do not remove the label.
If the label is missing or damaged, contact your dealer about replacement.
Name: Warning Label (2)
Type: 03-129-1001-3
Code No: 100-236-743
