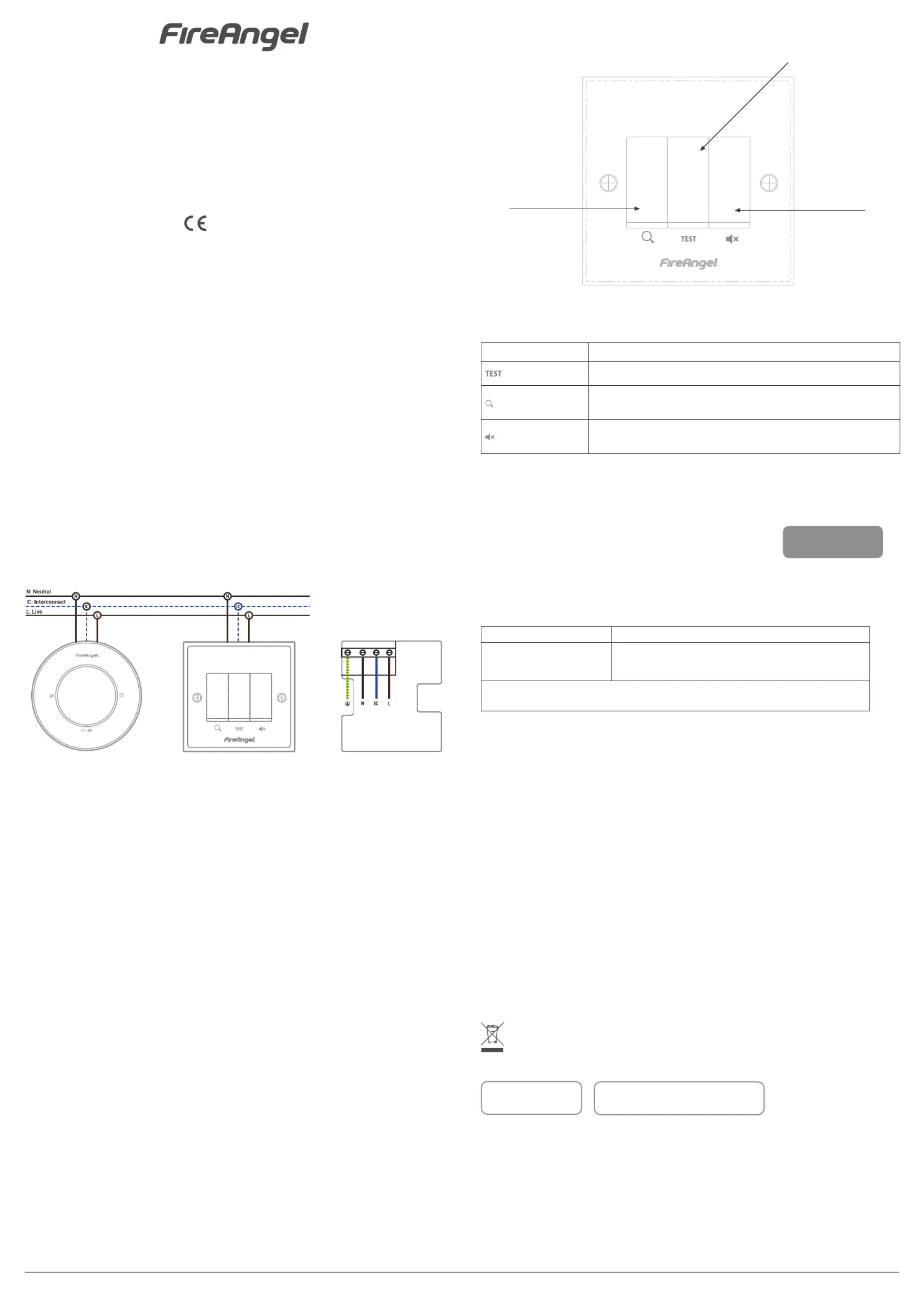

FA4564 HARD WIRED ALARM CONTROLLER

USER MANUAL

5. PRODUCT FUNCTIONALITY

FunctionDescription

- Test switch

This allows you to test all interlinked alarms from one centralised location.

- Locate switch

In an alarm event this will silence all interlinked alarms except the initiating alarm which has sensed

carbon monoxide / smoke / heat. Once located, if you are sure there is no danger, you can silence the

initiating alarm by now pressing the Silence switch.

- Silence switch

This will silence all interlinked alarms, except the initiating alarm, and reduce the system sensitivity.

The initiating alarm can be silenced by pressing the switch a second time.

Warning: if CO levels are above 150ppm, then the alarm cannot be silenced.

6. MAINTENANCE

This Hard Wired Alarm Controller will act as an interface between the alarms in your home when maintained properly. To ensure the

reliability of the Controller:

• Keep the unit free from dust by gently vacuuming the case with a soft brush attachment every 3 months.

• Never use cleaning solutions on the Controller. Simply wipe with a damp cloth.

• Do not paint the Controller.

• Do not spray aerosols on or near the Controller.

• Do not use any solvent based products near the Controller.

• Do not attempt to repair the Controller.

• Do not remove any screws or open the main casing of the Controller. Any attempt to do so may cause malfunction and will

invalidate the warranty.

7. TROUBLESHOOTING

IssueIndication

The alarms don’t sound when

pressing the test switch:

- Check all connections from the controller to the alarms.

- Check the green power LED is illuminated on all alarms.

If you have any questions about the operation of your Hard Wired Alarm Controller, please visit the FireAngel website for FAQs:

www.reangeltech.com alternatively contact Technical Support via email: or by calling: customersupport@reangeltech.com0330

094 5830.

8. TECHNICAL SPECIFICATION

The FA4564 Hard Wired Alarm Controller is designed to be installed by a qualied, competent person.

- Standard UK 1-gang installation (surface box supplied).

- 3 clearly identiable control modes; Test, Locate and Silence.

- Supports up to 50 Interconnected devices.

- For use with FA4150BW Smoke Alarm, FA4250BW Heat Alarm, FA4451BW Heat and CO Alarm, FA4452BW Smoke and Heat Alarm

and FA4453BW Smoke, Heat and CO Alarm.

- Storage and transportation conditions: -20°C to +50°C.

- Operating conditions: -10°C to +40°C.

9. WARRANTY AND DISPOSAL

FireAngel Safety Technology Limited warrants to the original purchaser that its enclosed Hard Wired Alarm Controller be free from defects in materials

and workmanship under normal residential use and service for a period of 5 (ve) years from the date of purchase. Provided the product is sent back

to FireAngel Safety Technology Limited with proof and date of purchase, FireAngel Safety Technology Limited hereby warrants that during the 5 (ve)

year period commencing from the date of purchase FireAngel Safety Technology Limited, at its discretion, agrees to replace the unit free of charge. The

warranty on any replacement FA4564 device will last for the remainder of the period of the original warranty in respect of the alarm originally purchased

– that is from the date of original purchase and not from the date of receipt of the replacement product. FireAngel Safety Technology Limited reserves the

right to oer an alternative product similar to that being replaced if the original model is no longer available or in stock.

This warranty applies to the original retail purchaser from the date of original retail purchase and is not transferable. Proof of purchase is required.

This warranty does not cover damage resulting from accident, misuse, disassembly, abuse or lack of reasonable care of the product, or applications not

in accordance with the user manual. It does not cover events and conditions outside of FireAngel Safety Technology Limited’s control, such as Acts of

God (re, severe weather etc.). It does not apply to retail stores, service centres or any distributors or agents. FireAngel Safety Technology Limited will not

recognise any changes to this warranty by third parties. This warranty does not cover replaceable batteries which are considered user-replaceable parts.

FireAngel Safety Technology Limited shall not be liable for any incidental or consequential damages caused by the breach of any expressed or implied

warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or tness for a particular purpose is limited in

duration for 5 (ve) years.

This warranty does not aect your statutory rights. Except for death or personal injury, FireAngel Safety Technology Limited shall not be liable for any loss

of use, damage, cost or expense relating to this product or for any indirect, or consequential loss, damages or costs incurred by you or any other user of

this product.

DISPOSAL

Waste electrical products should not be disposed of with your other household waste. The device is ideally suited for disposal within the waste

electronic and electrical equipment (WEEE) recycling scheme. All batteries should be removed from the product and disposed of separately in

line with current local regulations. Please recycle where facilities exist. Check with your local authority, retailer or contact our Technical Support

team for recycling/disposal advice as regional variations apply.

Do not attempt to open. Do not burn.

For Technical Support reference, please write the alarm batch number and install date here:

Batch number:

xxxxx

Install date:

xxxxxxxx/ /

230 V AC 50 Hz mains powered unit, Hard Wired Alarm Controller. This FA4564 Hard Wired Alarm Controller is designed to be used in conjunction with

FireAngel alarms. We recommend the device is tted in a room where the temperature is between -10°C (14°F) and 40°C (104°F). Prolonged exposure to

temperatures outside those stated above will reduce product life.

WARNING: Wiring should be installed by a qualied electrician in accordance with BS 7671. The wiring must conform to current regulations for electrical

installations. Check with local building and re regulations for your property, to ensure compliance. This device is not intended for any non-residential,

commercial or industrial application, nor for any other purpose than described above.

Technical Support

Online: www.reangeltech.com/support

E-mail: customersupport@reangeltech.com

Phone: 0330 094 5830

Fire & Rescue Customers: 0800 141 2561

www.reangel.co.uk

FireAngel Safety Technology, Ground Floor, BOURN, 1 Manor House Drive, Coventry, CV1 2TA, UK

Note: This user manual is also available in large text and other formats.

GN6706R1

Privacy Statement

FireAngel Safety Technology Limited takes your privacy seriously. Our devices and products collect data to enable us to provide services (including

product support and notications) and to enable us to predict re risks and create statistics. Details of the data we collect, how we use and how long we

keep that data are contained in our privacy notice which is available at https://www.reangel.co.uk/FACTPP. If you have any queries about how we use

your personal data or would like to exercise any of your rights, including your right to object where we rely on legitimate interests, please contact us at

customersupport@reangeltech.com or call 0330 094 5830.

1. POSITIONING

The Hard Wired Alarm Controller should be located on an easily accessible wall, at light switch height, on a landing or hallway,

possibly next to the master bedroom.

It is recommended that the device is mounted at standard light switch level (1.2 m from the oor).

The device can be either surface mounted or positioned ush against the wall. If the controller is to be recessed the backbox must have a

minimum of at least 35 mm depth.

NOTE:

Up to 4 Hard Wired Controllers can be used on a single system. It is recommended that they are equally spaced apart.

2. INSTALLATION

IMPORTANT: This FireAngel Hard Wired Alarm Controller is only to be connected to FireAngel Bluetooth products. Do not use

with alarms from other manufacturers.

WARNING: This Hard Wired Alarm Controller should be installed by a qualied electrician in accordance with BS7671:2018.

1.Switch o electricity supply.

2.Select a suitable location, based on the positioning advice above.

3. Remove the device cover by using a cross-head screwdriver on the two screws located on the front of the

product.

4.

Feed the wiring through from the alarm network which is to be connected. A minimum of 0.75mm

2

cable should be used.

5. Install the mounting box (or suitable ush mounting box) into the wall.

6.Connect the wires to the correct terminals L: Live (Brown), N: Neutral (Blue), IC: Interconnect (Black/UK or White/ROI). This

controller is equipped with a grounding port, which provides a safe grounding connection for any connected grounding

wire

.

WARNING: Ensure all wiring is correctly connected. If it is not the Hard Wired Alarm Controller and all connected units

may be damaged.

Fire / CO Alarms

Control Switch

7. To complete the installation, screw the cover back into place.

8.Switch on the mains electricity supply.

9. Test the Hard Wired Alarm Controller after installation (and weekly thereafter) by pressing the Test switch,

ensuring all connected alarms sound and the red LEDs ash.

IMPORTANT:The circuit used to power the Hard Wired Controller must be a 24 hour voltage circuit that cannot be turned o by a

switch. In accordance with BS 5839: Part 6, we recommend: For mains powered units, each with an integral standby supply, the mains

electricity supply should take the form of either a) an independent circuit at the dwelling’s main circuit board, in which case no other

electrical equipment should be connected to this circuit (other than a dedicated monitoring device installed to indicate failure of the

mains electricity supply); or b) a separately electrically protected, regularly used local lighting circuit.

Check with local building and

re regulations for your property to ensure compliance.

WARNING: The Hard Wired Alarm Controller must not be exposed to dripping or splashing. Install as late as possible to avoid

contamination during building works.

PLEASE NOTE: A maximum of 50 devices (including the Hard Wired Alarm Controller) can be interlinked on a network. Please

refer to your FireAngel Smoke / Heat / CO Alarm User Manual for interlink instructions.

Please refer to the individual alarm manuals for installation instructions.

3. WHAT TO DO IF AN ALARM SOUNDS

A loud alarm is a warning that potentially lethal levels of carbon monoxide or re is present. NEVER IGNORE AN ALARM.

If there is any doubt about the cause of an alarm activation, assume it was caused by an actual re and evacuate immediately.

If it is safe to do so, press the ‘Locate’ switch to silence all but the source alarm that has been activated. The location of the

activated alarm can now be audibly identied. If certain that there is no danger or risk, the ‘Silence’ switch can be pressed to

silence the activated alarm.

If the ‘Locate’ switch has not been pressed, pressing the ‘Silence’ switch will rst silence the secondary device(s) (the activated

alarm will not be silenced). You can then press the ‘Silence’ switch a second time, within 10 minutes of the rst press, to silence

the activated alarm.

4. TESTING THE ALARM SYSTEM

Press the Test switch to conrm that the Hard Wired Alarm Controller is operating properly. This will instigate a 4 second test. All

networked alarms should sound. To stop the test, simply press the Test switch again. This test should be performed on a weekly

basis.

Pressing the Test switch on the Hard Wired Alarm Controller creates a lot of trac. If you need to use the feature more than once,

please wait 40 seconds to let the network settle down.

EU Importer: FireAngel Safety Technology Europe, B.V., Concertgebouwplein 15-H, 1071 LL, Amsterdam, Netherlands

Email: euenquiries@reangeltech.com

Fire / CO Alarms

Control Switch

Test Switch

Silence Switch

Locate Switch

TEST YOUR

CONTROLLER WEEKLY
