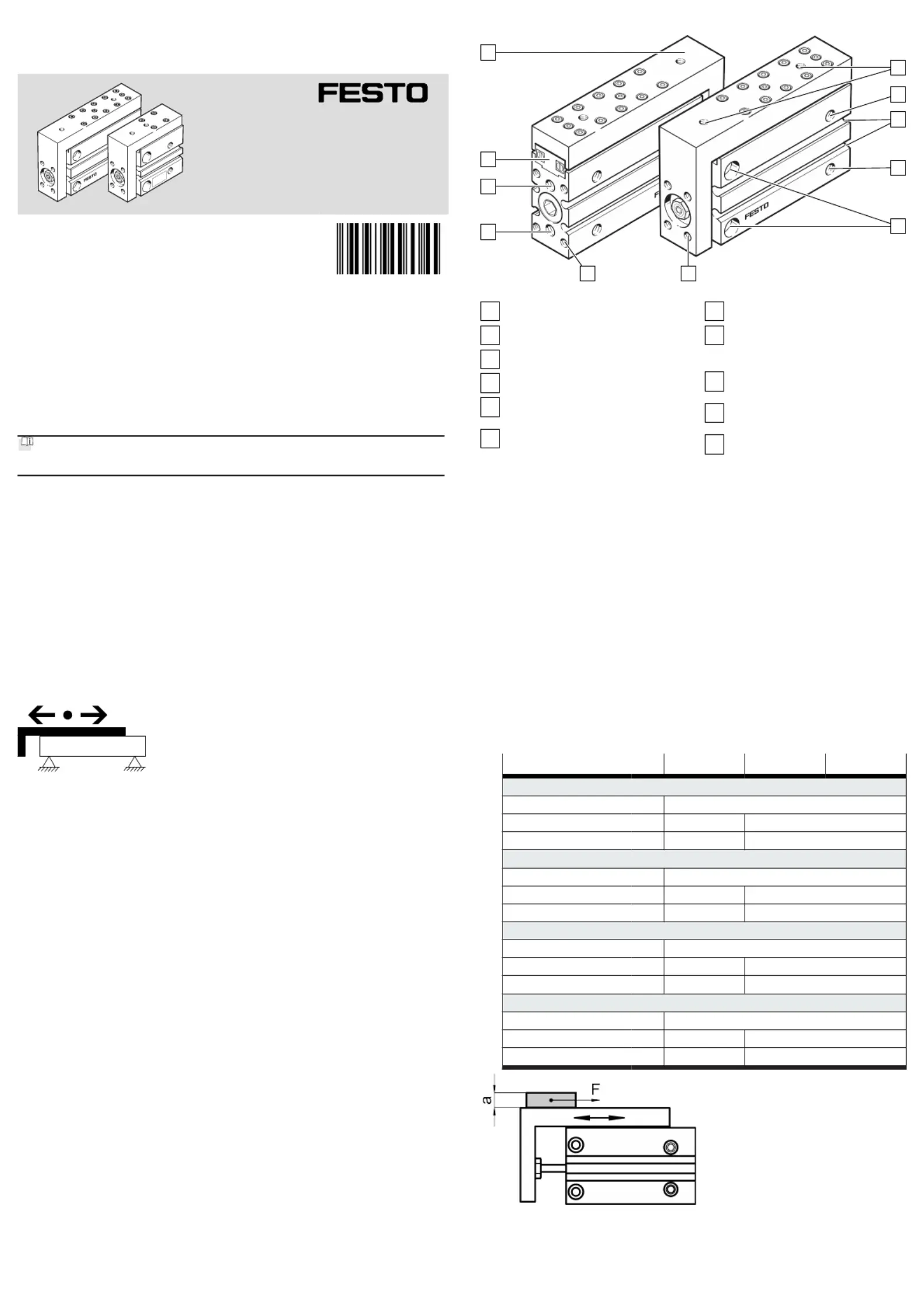

SLS

Mini slide

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

Operating instruction

8166211

2022-11d

[8166213]

8166211

Translation of the original instructions

© 2022 all rights reserved to Festo SE & Co. KG

1

Applicable Documents

All available documents for the product

è

www.festo.com/sp.

2Safety

2.1

Safety instructions

–Only use the product in its original condition without unauthorised modifica-

tions.

–Take into account the ambient conditions at the location of use.

–Observe the identifications on the product.

–

Store the product in a cool, dry environment protected from UV and corrosion.

Keep storage times short.

–

Before working on the product, switch off the compressed air supply and lock it

to prevent it from being switched on again.

2.2

Intended use

The mini slide moves workpieces with a high level of positioning accuracy in the

tightest of spaces.

Fig.1

2.3Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers. The qualified personnel have skills and

experience in dealing with pneumatic (open-loop) control technology.

3

Additional information

–Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–Accessories and spare parts

è

www.festo.com/catalogue.

4Product design

2

3

4

5

7

9

1011

1

6

8

Fig. 2:Product design

1

Supply port, extending

2

Supply port, retracting

3

Rail of the roller bearing guide

4

Slide

5

Thread for mounting the payload,

above (2x)

6

Option for side connection:

supply port, retracting, remove

plug screw

7

Slot for proximity switch (4x)

8

Option for side connection:

supply port, extending, remove

plug screw

9

Holes for mounting the slide unit,

on the side (2x)

10

Thread for mounting the payload,

front (4x)

11

Thread for mounting the slide

unit, rear (4x)

5

Function

The product is a non-rotating, double-acting cylinder with roller bearing guide.

The slide is moved back and forth by alternate pressurisation of the supply ports.

The slide is braked at the end position by internal, elastic cushioning without

end-position adjustment.

6

Assembly

6.1Preparation

1.

Mount the product without torsional stresses.

2.

Mount the product on a mounting surface with a flatness of0.05% of the

stroke length, but max. 0.1mm.

3.

If necessary: select the mounting components or the accessories.

To prevent collisions: mount the mounting components outside the posi-

tioning range.

6.2Mounting the mini slide

•

Tighten the screws evenly.

SLT-6-10-16

Thread for mounting the payload, above[5]

Screws2x

ThreadM3M4

Max. tightening torque[Nm]25

Holes for mounting the slide unit, on the side[9]

Screws2x

ThreadM3M4

Max. tightening torque[Nm]25

Thread for mounting the payload, front[10]

Screws4x

ThreadM3M4

Max. tightening torque[Nm]25

Thread for mounting the slide unit, rear[11]

Screws4x

ThreadM3M4

Max. tightening torque[Nm]25

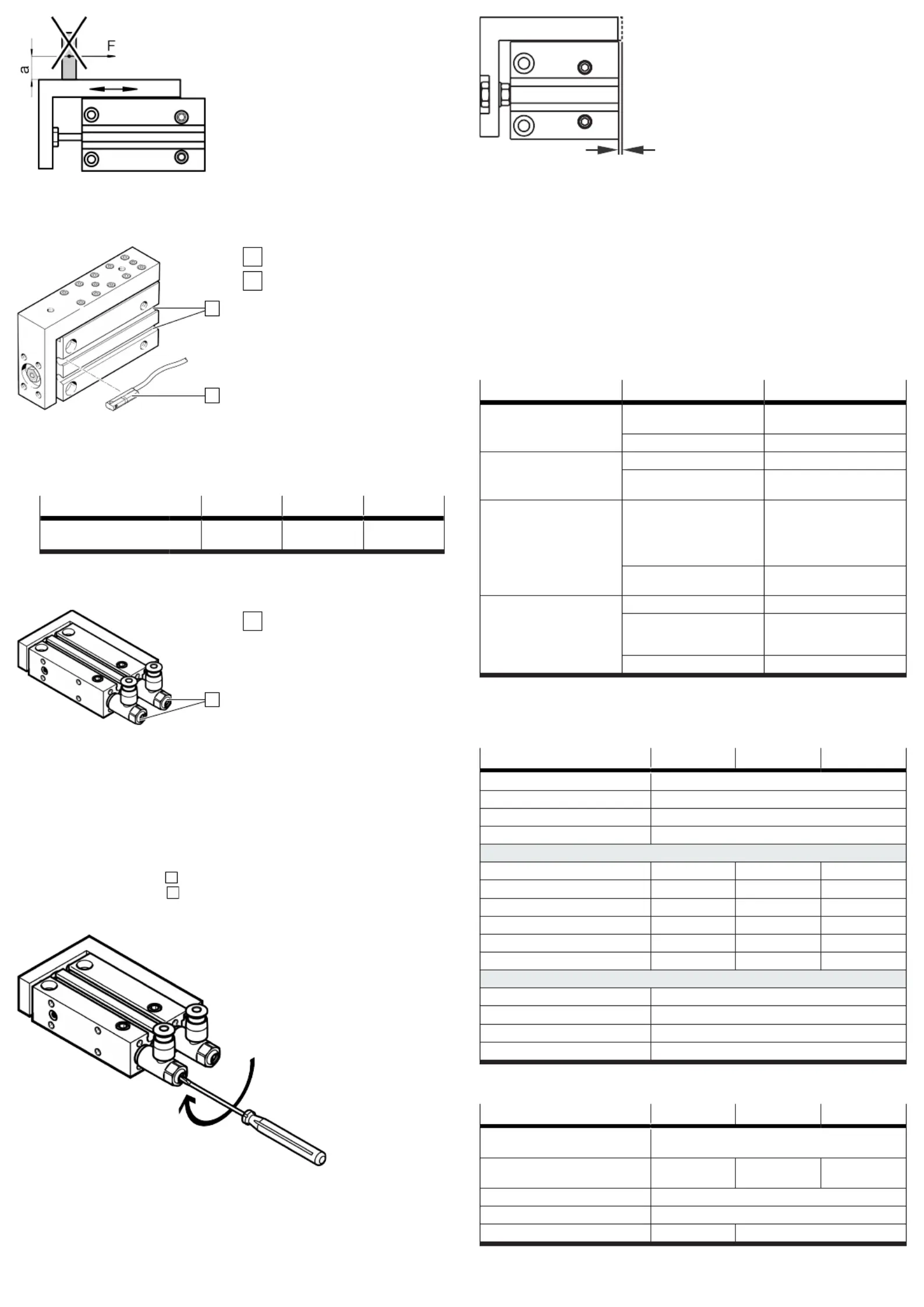

Fig. 3:

Positioning the payload
