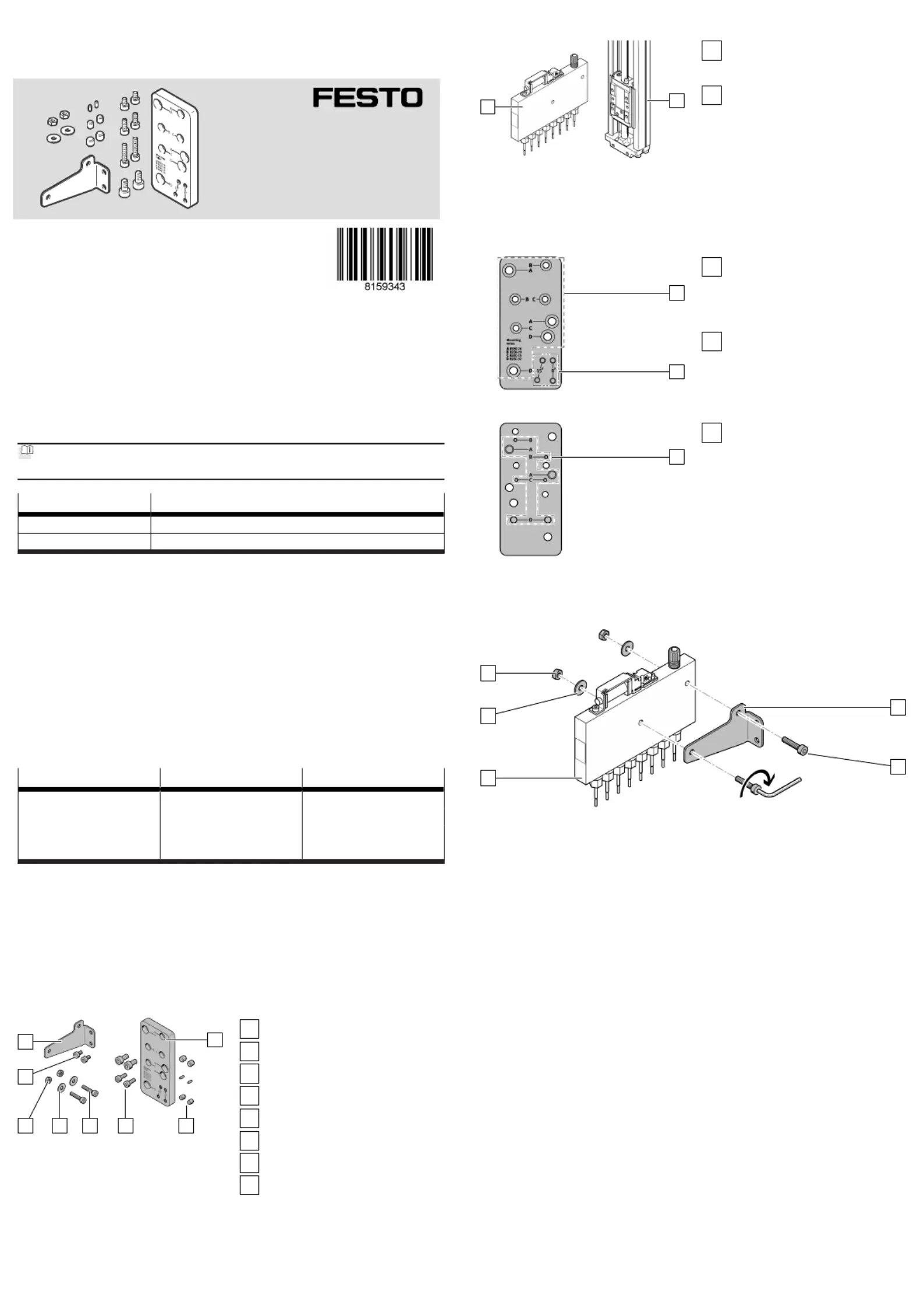

EHAM-MA-E19-25-C14

Adapter plate kit

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Deutschland

+49 711 347-0

www.festo.com

Assembly instructions

8159343

2021-08

[8159345]

Translation of the original instructions

© 2021 all rights reserved to Festo SE & Co. KG

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

DocumentProduct

User documentsActuators

User documentsModules

Tab. 1:

Applicable documents

2Safety

2.1

Safety instructions

–Before working on the product, switch off the power supply and secure it

against being switched on again.

–

Observe further applicable documents.

–Observe tightening torques.

2.2Intended use

2.2.1Use

Connection of modules and actuators.

2.2.2Permissible components

ModuleAdapter plate kitActuator

VTOIEHAM-MA-E19-25-C14EGSC-...-25

EGSC-...-32

EGSK-20

EGSK-26

Tab. 2:

Permissible components

3Additional information

–

Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–

Accessories and spare parts

è

www.festo.com/catalogue.

4Product Range Overview

4.1Scope of delivery

1

23456

7

8

Fig.1

1

Adapter plate (1x)

2

Centring pin (6x)

3

Screw (4x)

4

Screw (2x)

5

Washer (2x)

6

Hex nut (2x)

7

Screw (2x)

8

Mounting bracket (1x)

The kit contains all the mounting attachments that may be required. Some

mounting attachments will be left over.

4.2Not in scope of delivery

9

10

Fig.2

9

Actuator (1x)

Mini slide EGSC

Electrical slide EGSK

10

Modul (1x)

Dispense head VTOI

5Assembly

5.1Preparation

•

Observe the labelling on the adapter plate.

P

Q

Fig. 3:Front side of the adapter plate

P

Drilled holes for screws

A EGSK-26

B EGSK-20

C EGSC-...-25

D EGSC-...-32

Q

Drill holes for VTOI

S

Fig. 4:Rear side of the adapter plate

S

Drilled holes for centring pins

A EGSK-26

B EGSK-20

C EGSC-...-25

D EGSC-...-32

5.2Assembly

5.2.1Preassembly

8

4

5

6

10

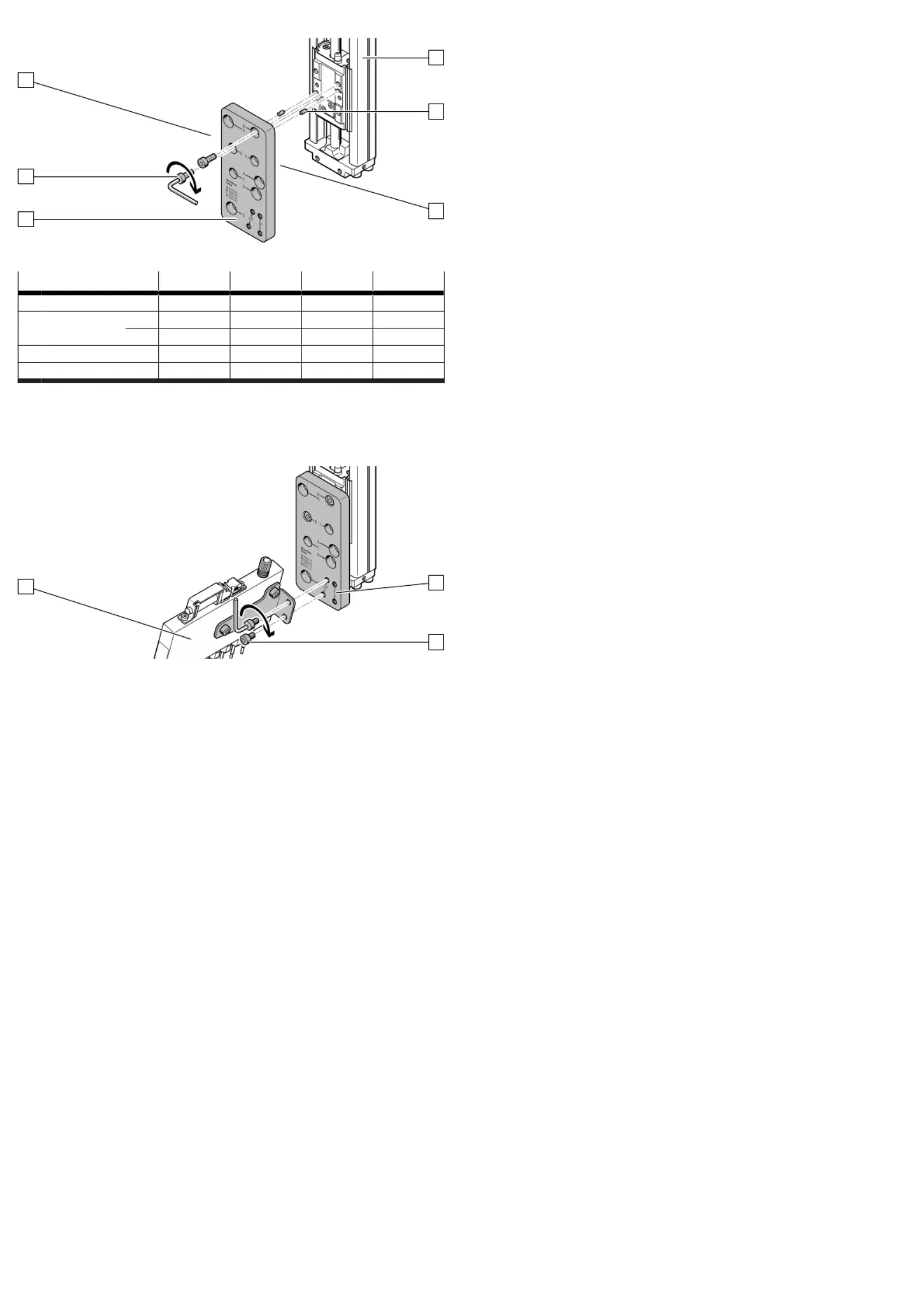

Fig. 5:

Mounting bracket on VTOI

•

Attach the mounting bracket with the screws , the washers and the845

nuts to the module . Tightening torque: 0.5 Nm ± 10% 6aJ
