Brief description

Translation of the original instructions

8101644

2018-11a

[8101646]

Bus node CPX-FB37English............................................

For all available product documentation è www.festo.com/pk

EtherCAT

®

and TORX

®

are registered trademarks of the respective trade

mark owners in certain countries.

1Intended use

The bus node CPX-FB37 is intended exclusively for use in CPX terminals, as a parti

cipant in the EtherCAT network and as follows:

–in excellent technical condition

–in original status, without unauthorised modifications

–within the limits of the product defined through the technical data

–in an industrial environment.

You can find detailed information in the bus node description

(P.BE-CPX-FB37-...) and in the CPX system description (P.BE-CPX-SYS-...).

You can receive information on EtherCAT in the Internet:

EtherCAT Technology Group è www.ethercat.org.

2Target group

The target group of this documentation consists of trained specialists in control

and automation technology.

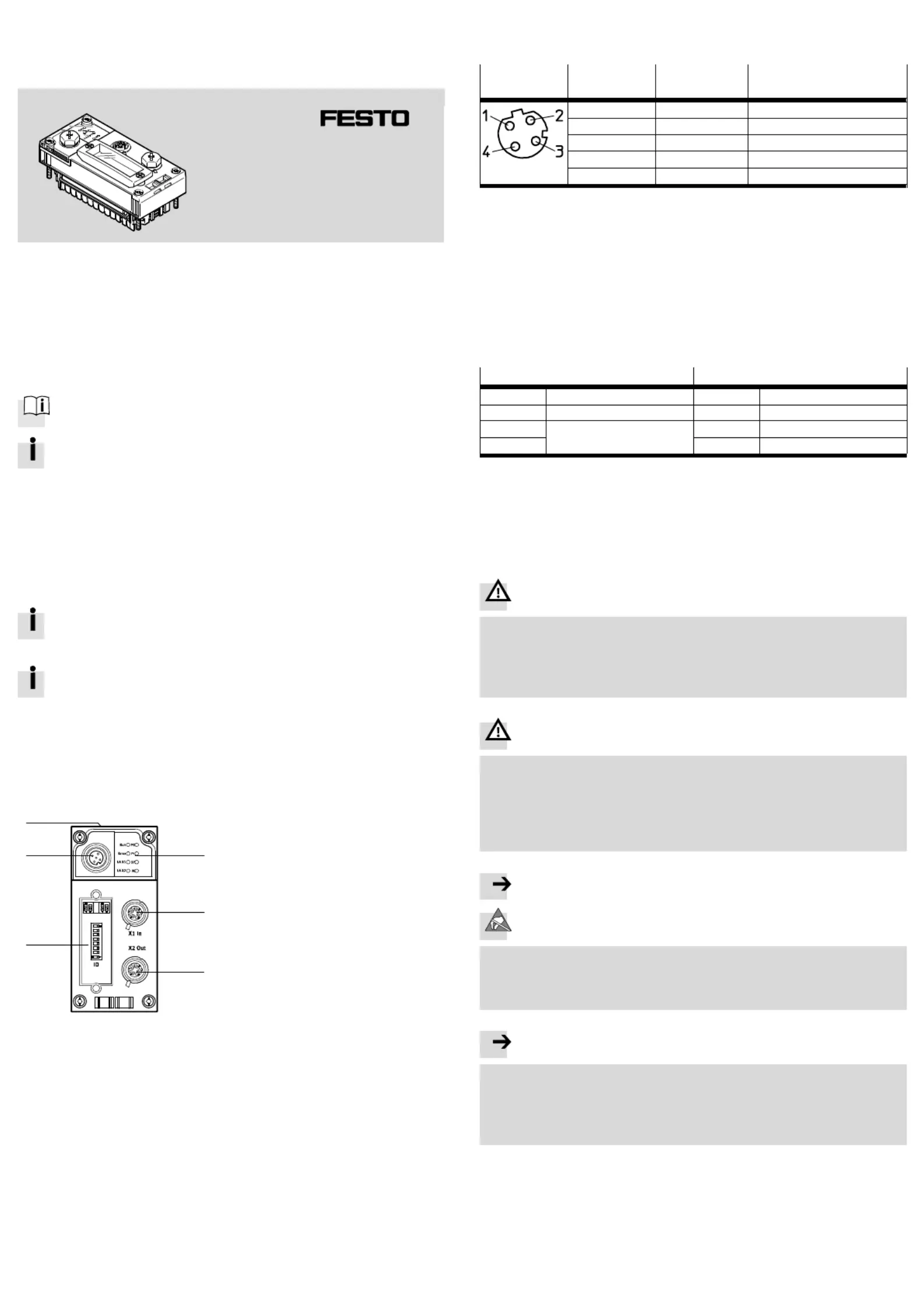

3Connection and display components

6

5

3

1

2

4

1EtherCAT-specific network status

LEDs and CPX-specific LEDs

2Network connection 1

(input “X.1 In”)

3Network connection 2

(output “X2 Out”)

4Cover for DIL switches

5Service interface for operator unit

(CPX-MMI) and USB adapter for

CPX-FMT

6Rating plate

Fig. 1

3.1Network connections

There are two 4-pin M12 sockets (D-coded) on the bus node for connection of the

bus node to the EtherCAT network.

M12 socket,

D-coded

PinSignalExplanation

1TD+Transmitted data (Transmit Data) +

2RD+Received data (Receive Data) +

3TD–Transmitted data –

4RD–Received data –

HousingFEScreening/functional earth

Fig. 2

3.2LED displays

Behaviour of the LED indicators in normal operating status:

–The LEDs “Run”, “PS” and “PL” are illuminated.

–The LEDs “LA/X1” and “LA/X2” are illuminated or flash if the assigned network

connection is used.

–The LEDs “Error” and “SF” are not illuminated.

–The LED “M” is illuminated with the setting “System start with saved

parameters”.

–The LED “M” flashes if “Force” is active.

EtherCAT network status LEDs

1)

CPX-specific LEDs

1)

Run (green)Operating statusPS (green)Power system

Error (red)EtherCAT errorPL (green)Power Load

LA/X1 (green)Connection status X1 In/

X2 Out

2)

SF (red)System Failure

3)

LA/X2 (green)M (yellow)Modify

4)

1)Detailed information: è bus node description (P.BE-CPX-FB37-…)

2)Network connection or data traffic at “X1 In” or “X2 Out”

3)Flashes in case of error, diagnostics by means of error number: è CPX system description

(P.BE-CPX-SYS-...)

4)“System start with saved parameters” or “forcing” active

Fig. 3

4Mounting/dismounting

Warning

Danger of injury to people, damage to the machine and system resulting from

uncontrolled movements of the actuators and undefined switching states

Switch off the operation and load voltage supplies.

Switch off the compressed air supply.

Exhaust the valve terminal pneumatics.

Warning

Danger of electric shock

For the electrical power supply, use only PELV circuits in accordance with

IEC/EN 60204-1 (Protective Extra-Low Voltage, PELV).

Observe the general requirements of IEC/EN 60204-1 for PELV circuits.

Only use voltage sources that ensure a reliable electric separation of operat

ing voltage in accordance with IEC/EN 60204-1.

Note

Damage to the electronics

The bus node includes electrostatically sensitive devices.

Do not touch any components.

Observe the handling specifications for electrostatically sensitive devices.

Note

Only commission a CPX terminal which has been completely mounted and

connected.

Observe the specifications in the CPX system description, in the descriptions

of the valve terminal used as well as in the assembly instructions of the indi

vidual components.
