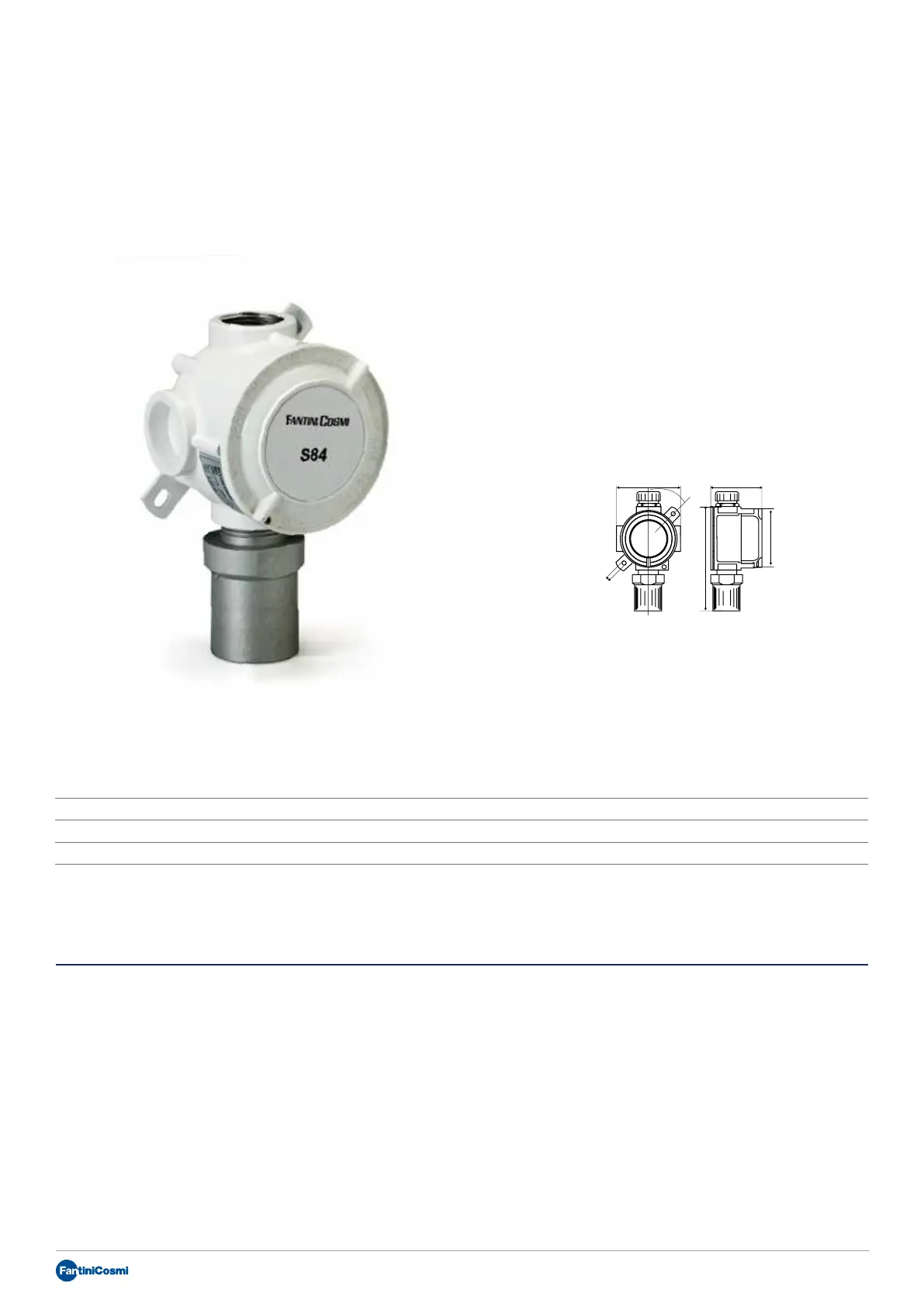

S84 - S85 - S86
Gas detection probes certified with ATEX, 4- 20mA,
for control units P81 and P82
Combustible gas detection probes, certified with ATEX II 2G Ex d IIC T6, to be used with the electronic control units
P81 and P82. The probes are available in 3 versions: S84 for methane gas and city gas, S85 for LPG and S86 for
carbon monoxide.
ELECTRICAL CHARACTERISTICS
Power supply: 11 ÷ 28Vdc.
Absorption: maximum 3.2W.
Output logic 4…20mA:
proportional logic 4mA = 0% LEL; 0 ppm
(default) 20mA = 100% LEL; 500 ppm
absorption logic 0mA = no alarm
(applications with 1 10mA = 1
st
threshold alarm
or 2 thresholds) 20mA = 2
nd
threshold alarm
reference selection
of the signal 4…20mA to 1/2 of jumpers with reference to power supply negative or positive signs
4…20mA output load resistance up to 200Ω at 12Vdc power supply and up to 200Ω¸ 700Ω at 24Vdc power supply
Dimensions (mm)
2 orices
Ø 8
Gas typeOperating ambient
temperature
Protection
degree
S84Methane gas, or other light gases- 10 ÷ 50 °CIP65
S85LPG gas (cylinder liquid gas) or other heavy gases- 10 ÷ 50 °CIP65
S86CO carbon monoxide- 10 ÷ 50 °CIP65
