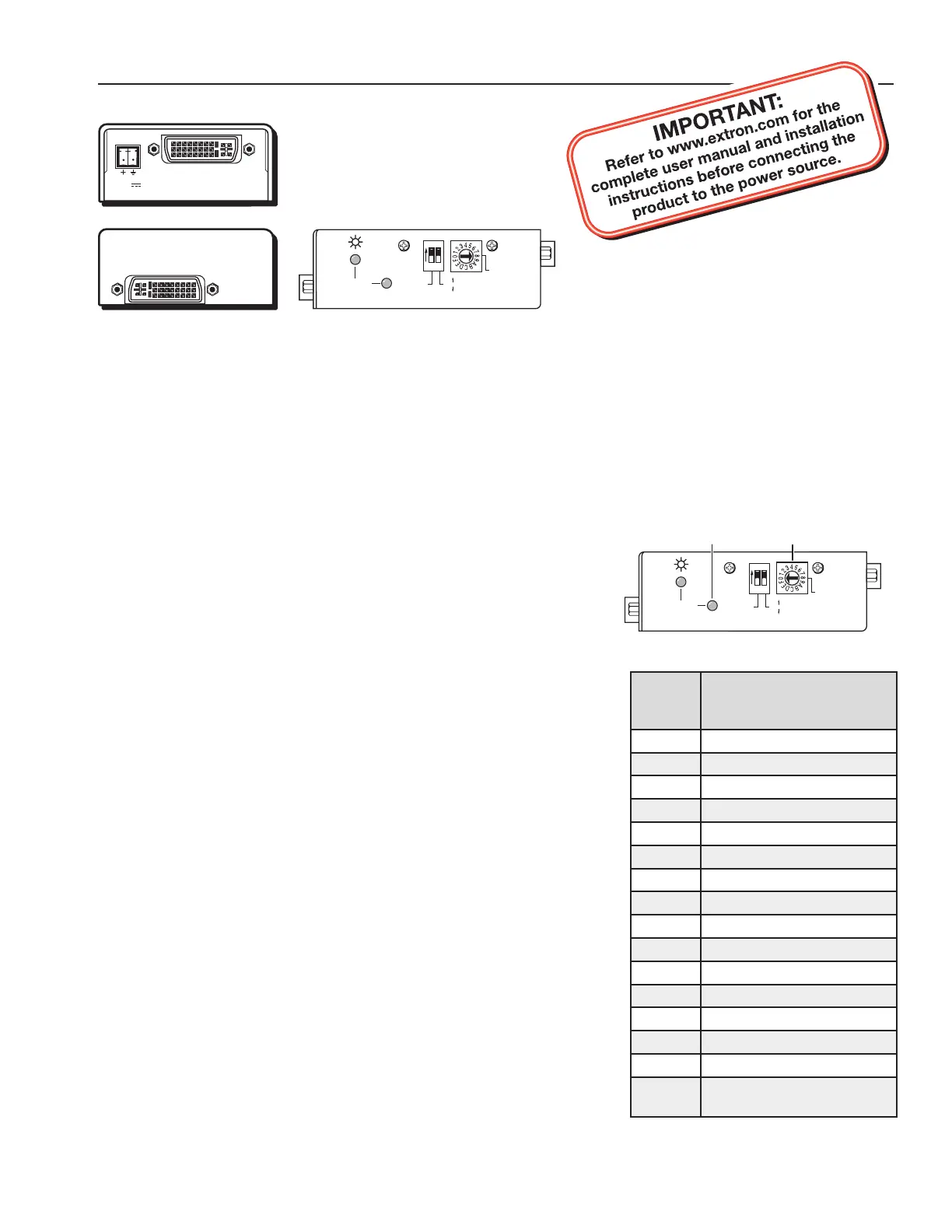

EDID 101 Setup Guide

68-1773-50 Rev. A

06 09

EDID

SELECT

60

Hz

50

RECORD

DIGITAL

SIGNAL

ANALOG

ON

12

a

b

DVI INPUT (SOURCE)

POWER

12V

0.4A MAX

DVI OUTPUT (DISPLAY)

EDID

SELECT

60

Hz

50

RECORD

DIGITAL

SIGNAL

ANALOG

ON

12

To record and use a user recorded EDID (rotary switch position 0)

a. Turn the rotary switch (

b

) to position 0.

N

The DIP switch positions have no effect in this mode.

b. Apply power to the EDID 101 by connecting a power source. If

power is not available from a video source, an external 12 VDC

power supply can be used. The green LED will be lit when power is

available.

c. Connect the display device to the OUTPUT of the EDID 101.

d. Power on the display device.

N

Although the EDID 101 supplies 5 VDC to power the EDID circuitry

of a display device, the display power should be on to ensure that data

is being transmitted during the recording process.

e. Press and hold the recessed record button (

a

) until the LED flashes

red rapidly, then release the button. The LED continues to flash red,

then returns to steady green when the EDID data has been stored.

The display can now be disconnected.

N

If an external power supply was used, it can now be disconnected.

f. The EDID 101 has now been configured. Continue to Step 2.

Rotary

Switch

Position

Resolution

0user recorded EDID

1800x600

21024x768

31280x720

41280x768

51280x800

61280x1024

71360x768

81366x768

91400x1050

A1440x900

B1600x1200

C1680x1050

D1920x1080

E1920x1200

F

Digital: Dual Link

Analog: Not used

Table 1 — Rotary Switch position

This guide provides basic instructions for an experienced installer to operate and install the EDID 101. Where possible in

the following pages, line drawings and photos from an actual installation are used to clarify steps discussed in the text.

Where appropriate, images have one or more numbers corresponding to a specific instruction described.

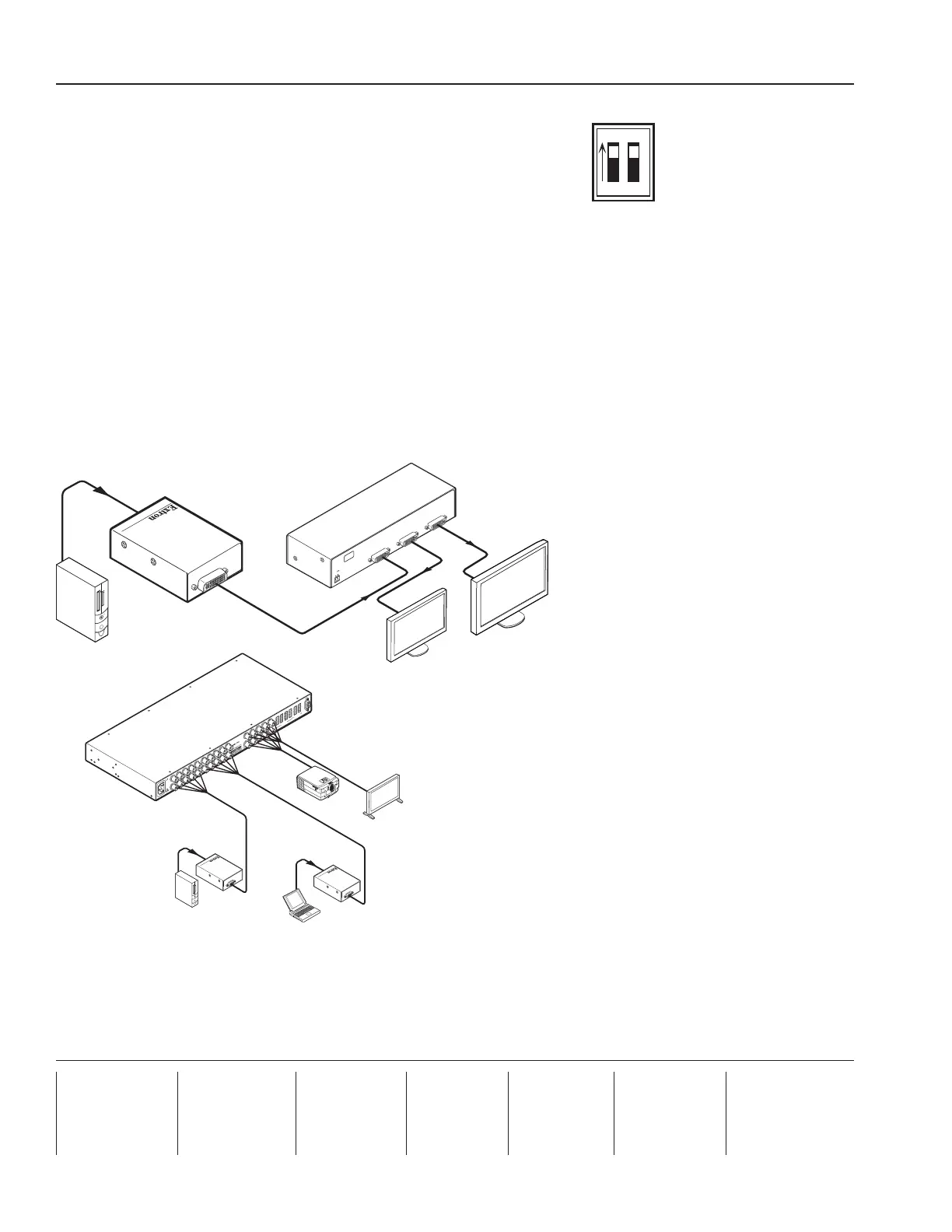

The Extron EDID 101 is a standalone EDID Minder

™

device that emulates EDID (Extended Display Identification Data) to

a DVI (101D) or VGA (101V) source. It helps ensure the video source boots up correctly and constantly outputs video.

Step 1 — Configure the EDID 101

The EDID 101 should be configured prior to installation as it may be difficult to access after mounting or placing in

the system. EDID can be recorded from a display or a pre-programmed EDID can be selected from Table 1.

To use a pre-programmed Extron EDID

(rotary switch positions 1-F)

N

Configuring the EDID 101 rotary and DIP switches allow a user to

select a pre-programmed EDID based on the native rate of a display

(i.e. 1280x1024 @ 60 Hz) and signal type (i.e. digital), but does not

necessarily force a video source to output that rate. Since EDID is

not limited to reporting a single video rate (i.e. the native rate), each

Extron EDID also lists other common video rates for use by the video

source.

a. Choose a resolution from table 1 based on the native resolution of the

display device. Note the corresponding rotary switch position.

b. Set the the rotary switch (

b

) to the position (1-F) selected previously.

The switch will click as each position is selected.

N

When using a dual link DVI display with the EDID 101D,

(position F), two resolutions will be shown to the source, 1280x800

and 2560x1600.
