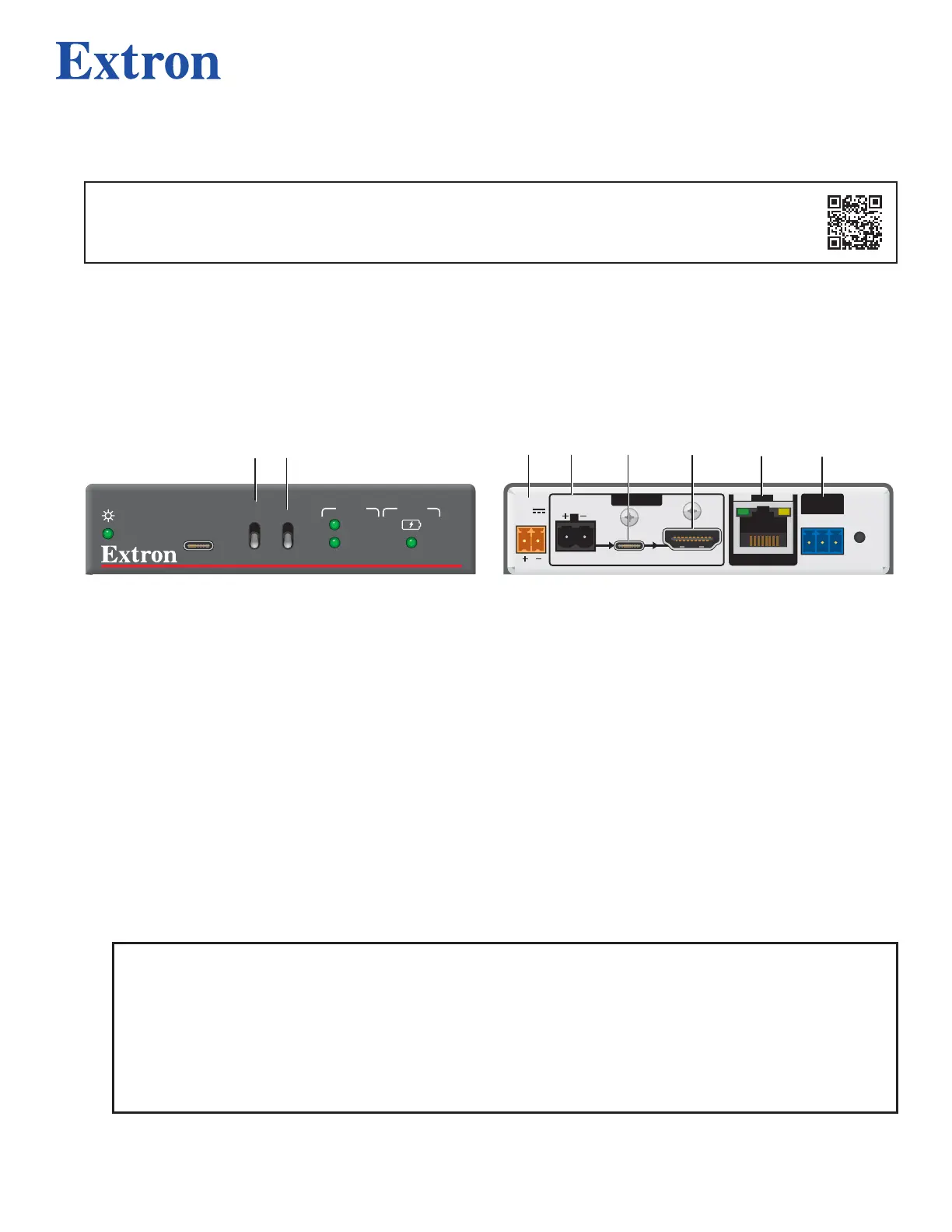

DTP3 T 211 • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com for the complete user guide, installation instructions, and specications before
connecting the product to the power source.
The Extron DTP3 T 211 is a long distance, digital twisted pair transmitter used for sending USB-C
®
video, audio, and control up to
330 feet (100 meters) over a shielded CAT 6A cable to Extron DTP3-enabled products. The unit supports video resolutions up to
4K/60 @ 4:4:4 and complies with HDCP 2.3.
This guide provides quick start instructions for an experienced installer to set up and operate the DTP3 T 211. For full installation,
conguration, and operation details, see the DTP3 T 211 User Guide available at www.extron.com.
Installation
DTP3 T 211
INPUT
SIGNAL
HDCP
OFF
SEND
PWR
CONFIG
DTP
HDBT
USB-C
POWER
--A MAX
12V
UPI 100W
PWR INSERT
INPUTS
OUT
SIGLINK
OVER
TP
RS-232
TxRxG
R
USB-C
LOOP OUT21-25VDC
Front
Rear
A
DTP3 T 211
INPUT
SIGNAL
HDCP
OFF
SEND
PWR
CONFIG
DTP
HDBT
USB-C
POWER
--A MAX
12V
UPI 100W
PWR INSERT
INPUTS
OUT
SIGLINK
OVER
TP
RS-232
TxRxG
R
USB-C
LOOP OUT21-25VDC
Front
Rear
A
B
CDEF
G
H
BCDE
A
Send Power toggle switch
C
Power port
E
USB-C input
G
TP output
B
DTP/HDBT toggle switch
D
UPI 100 W power insert port
F
Loop Out port
H
Over TP port
Figure 1. Installation Features (Front and Rear Panels)
Step 1 — Mounting (optional)
Turn o or disconnect all equipment from the power source. The unit can be securely mounted in a variety of locations, using
optional Extron mounting brackets and accessories (see www.extron.com to determine which optional mounting accessories are
compatible).
Step 2 — Connecting the inputs
D
UPI 100 W power insert port (see figure 1) — If desired, connect a 2-conductor cable from an Extron UPI 100 to this 5 mm,
2-pole captive screw port. This feature can provide up to 100 W of power to a laptop computer connected to the USB-C
input (
E
).
E
USB-C input — Connect a USB-C video source, such as a laptop, to this USB-C input.
NOTES:
• An Extron UPI 100 is needed to provide power to the USB-C source (
D
).
• When using the UPI 100, choose a USB-C cable that is rated for the desired power delivery.
• Use Extron Product Configuration Software (PCS) to configure the power delivery (see the DTP3 T 211 PCS Help
File for more information).
• Extron LockIt
™
Plus cable lacing brackets are provided to secure the USB-C and HDMI connectors to the rear panel
ports. This reduces stress on the connectors and prevents signal loss due to loose cable connections (see LockIt
Plus Installation on page 4 for installation details).
F
Loop Out port — Connect a display to this HDMI output for local monitoring of digital video (see LockIt Plus Installation).
1
