Copyright
©

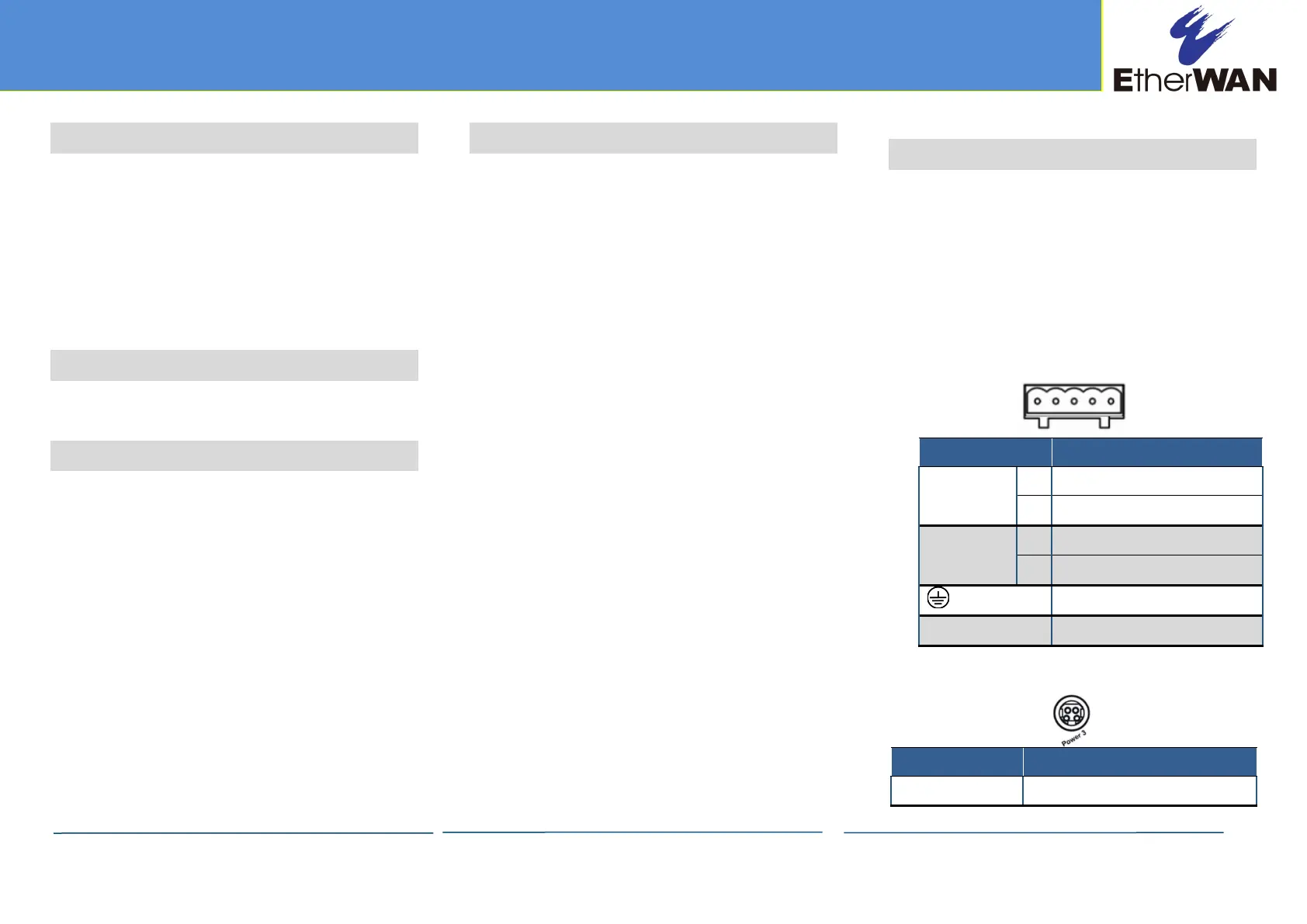

2014 EtherWAN Systems, Inc. Page 1
All Rights Reserved
EX78000R rev. 1.0
12/2/2014
1 Unpacking
Unpack the items. Your package should include:
One EX78000R Series hardened managed
switch
Rack-mounting hardware brackets
One CD containing this user’s guide
If items are missing or damaged, notify your
EtherWAN representative. Keep the cartonand
packing material.
2 What Else You Need
Appropriate cable for data ports
Personal computer or laptop
3 Selecta Location
Desktop installations: Mount ona flat table
or shelf surface.
Rack installations: Use a 19-inch (48.3-
centimeter) EIA standard equipment rack
that is grounded and physically secure.
Identifya power source within 6 feet (1.8
meters).
Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
Keep away from heat sources, sunlight, warm
air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.
Keep the switch at least 6 ft.(1.83 m) away
from the nearest source of electromagnetic
noise, such as a photocopy machine.
4 Connect to the DataPorts
Depending on the model, your switch can have
the following ports:
4 or 8 10/100Base-TX Power over Ethernet
(PoE) ports. The PoE ports conform to
IEEE802.3af and provide up to 15W per port,
with a total power budget of 123.2W.
0 or 4100Base-FXports
0 or 2 Gigabit ports
10/100Base-TXand100Base-FX Ports
Theseports can connect todevices such as an IP
surveillance camera or a Voice Over Internet
Protocol (VoIP) phone.
A.Insert oneend of an appropriate cable into a
switch port.
B.Connect the other end into the Ethernet port
of the device.
C.Repeat steps A and B for each additional
device you want to connect to the switch.
Gigabit Ports
Some switch models have 2 10/100/1000Base-TX
ports, 1000Base-SX/LX/BXports, or 1000BaseSFP
ports. You can connect these portsto network
devices such as a computer, printer, network
video recorder (NVR), network storage, or they
can connect to the network itself.
Wear an ESD-preventive wrist strap before
connecting to these ports.
5 Apply Power
The switch has two pairs of power inputs: a 47-
57VDC terminal blockand a 48VDC jack. Only
one power input is required to operate the
switch.However, redundant power supply
functionality is supported.
Terminal Block
The switch provides two power inputs on a 12-
48VDC terminal block. Only one power input is
required to operate the switch.
PinDescription
Power 2+ 47-55VDC
−Power Ground
Power 1 + 47-55VDC
−Power Ground
Earth Ground
Relay Output Rating1A@ 24VDC
DC Jack
PinDescription
Power 348VDC
EX78000R Managed SwitchInstallation Guide
