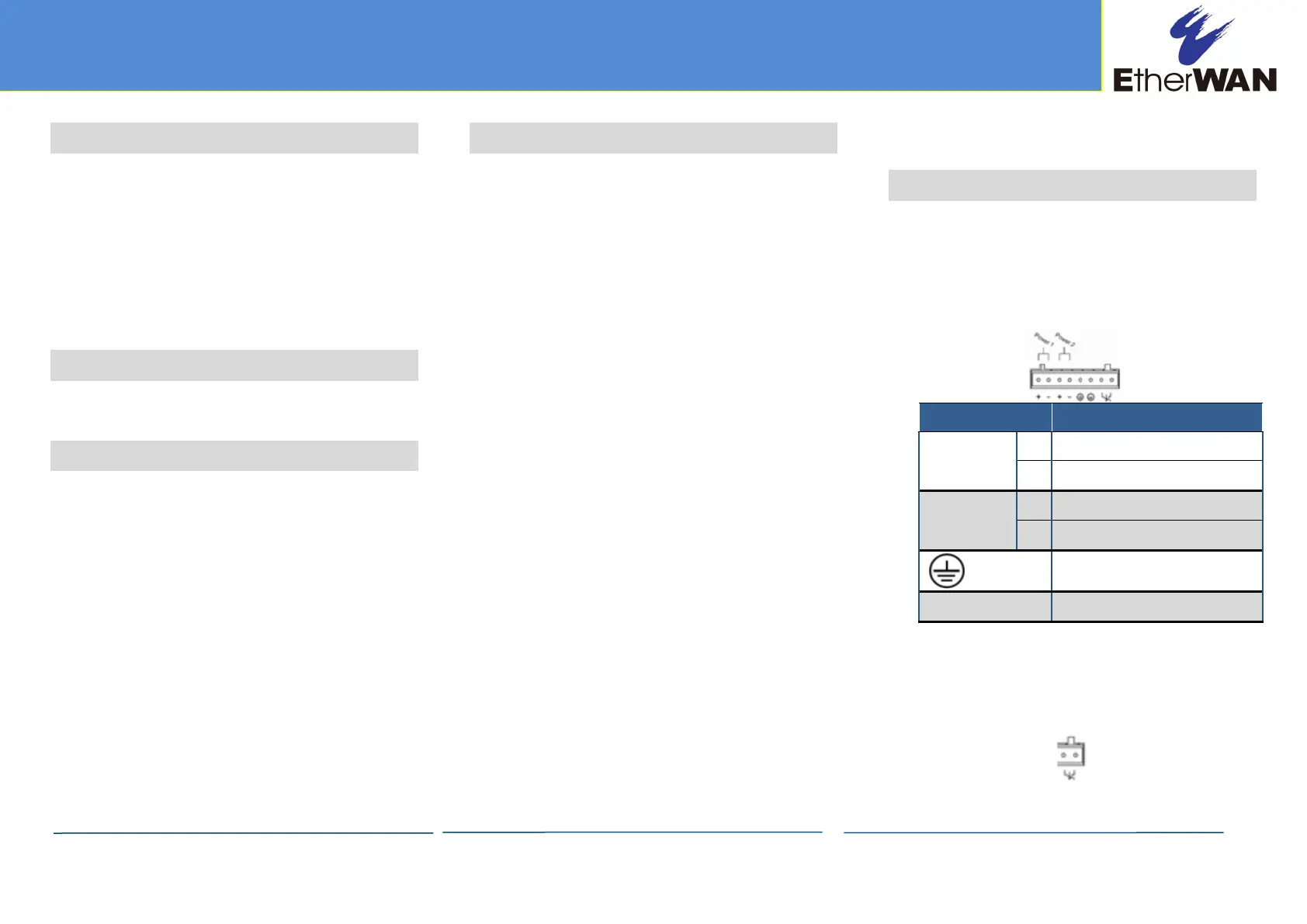

Copyright

©

2014 EtherWAN Systems, Inc. Page 1

All Rights Reserved

EX76000 rev. 1.0

12/2/2014

1 Unpacking

Unpack the items. Your package should include:

One EX76000 Series hardened Managed

switch

Rack-mounting hardware brackets

One CD containing this user’s guide

If items are missing or damaged, notify your

EtherWAN representative. Keep the cartonand

packing material.

2 What Else You Need

Appropriate cables for dataports

Personal computeror laptop

3 Selecta Location

Desktop installations: Mount ona flat table

or shelf surface.

Rack installations: Use a 19-inch (48.3-

centimeter) EIA standard equipment rack

that is grounded and physically secure.

Identifya power source within 6 feet (1.8

meters).

Choose a dry area with ambient temperature

between -40 and 75ºC (-40 and 167ºF).

Keep away from heat sources, sunlight, warm

air exhausts, hot-air vents, and heaters.

Be sure there is adequate airflow.

Keep the switch at least 6 ft.(1.83 m) away

from the nearest source of electromagnetic

noise, such as a photocopy machine.

4 Connect to the DataPorts

Your switch has the following ports:

8, 12, or 1610/100Base-TX Power over

Ethernet (PoE) ports

0, 2, or 4 100Base-FX ports

0, 1, or 2Gigabit ports

10/100Base-TX and 100Base-FXPorts

These ports can connect to devices such as an IP

surveillance camera or a Voice Over Internet

Protocol (VoIP) phone.

The10/100Base-TX PoE ports conform to

IEEE802.3af/at. They provide up to 15.4/30W per

port, with a total power budget of 246/480W.

A.Insert one end of an appropriate cable into a

switch port.

B.Connect the other end into the Ethernet port

of the device.

C.Repeat steps A and B for each additional

device you want to connect to the switch.

Gigabit Ports

Some switch models have 10/100/1000Base-TX

ports with no Gigabit fiber ports, or combo

10/100/1000Base-TX with 1000Base-SX/LX/BX

ports. Youcan connect these portsto network

devices such as a computer, printer, network

video recorder (NVR), network storage, or they

can connect to the network itself.

Combo ports operate in “either/or” fashion. This

means that attaching to a 1 Gbps combo port

renders the equivalent partner comboport

unavailable.

5 Apply DC Power

The switch has two pairs of power inputs on a

12-48VDC terminal block. Only one power input

is required to operate the switch.However,

redundant power supply functionality is

supported. The terminal block has 8 terminal

posts.

PinDescription

Power 2+ 48VDC

−Power Ground

Power 1 + 48VDC

−Power Ground

Earth Ground

Relay Output Rating1A@24VDC

Power Failure Alarm

Two pins on the terminal block provide for power

failure detection. Do not connect a power source

to these pins.

The relay contact closes if Power 1 and Power 2

are both failed.

EX76000 Managed SwitchInstallation Guide
