Hardened Ethernet Switch

1

Quick Start Guide

This quick start guide describes how to install and use the

Hardened Ethernet Switch. Capable of operating at

temperature extremes of -10°C to +60°C, this is the switch of

choice for harsh environments constrained by space.

Physical Description

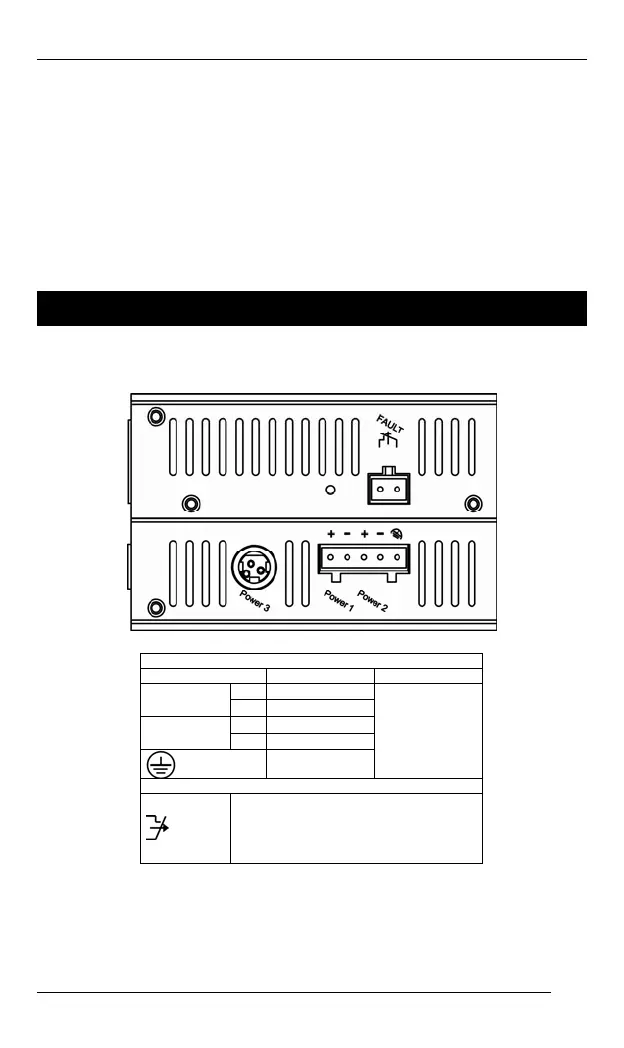

The Terminal Block and Power inputs

Power Input Assignment

Power3 12VDC DC Jack

＋

12-48VDC

Power2

－

Power Ground

＋

12-48VDC

Power1

－

Power Ground

Earth Ground

Terminal Block

Relay Alarm Assignment

FAULT

*Relay warning signal disable for following:

1. The relay contact closes if Power1 and

Power2 are both failed but Power3 on.

2. The relay contact closes if Power3 is failed

but Power1 and Power2 are both on.

DC Terminal Block Power Inputs: There are two pairs of

power inputs can be used to power up this switch. Redundant

power supplies function is supported.
