GUIDE TO ASSEMBLY OF ERICA SYNTHSPOLIVOKS VCF
If you are reading this, most probably, you are about to build Erica
Synths DIY PolivoksVCF. This module is 30mm deep, skiff friendly,
has solid mechanical construction and doesn’t require wiring.
PolivoksVCF is famous for its’ crazy resonance sweeps and deep,
bassysound which makes it ideal for acid basslines.We believe,
this is one of most is one of most authentic sounding famous
Russian synth PolivoksVCF emulations available. The original
Russian ICs K140UD12 are used in the sound circuit. We did several
updates to adapt the VCF for contemporary modular synth
demands. Independently buffered inputs, extended Cutoffknob
range, eliminated clicks, when switching filter modes, and output
stage added to eliminate signal inversion.
The DIY PolivoksVCF kit comes in three versions:
1)PCB + 2xK140UD12 ICs,
2)PCB + 2xK140UD12 ICs + panel,
3) Full kit.
FEATURES:
•Switchable BP/LP modes
•Inputs/outputs are protected against over-voltage
•Protection on reversed power supply
•Skiff friendly design
SPECIFICATIONS:
•Input levelup to 20Vptp
•CV input level-10V -+10V
•Filter modesBP(6dB/oct)/LP(12dB/oct)
•Module width10HP
•Module depth30mm
•Power consumption 11mA@+12V, 11mA@-12V
1
3
4
2
5
6
1
2
3
4
5
6

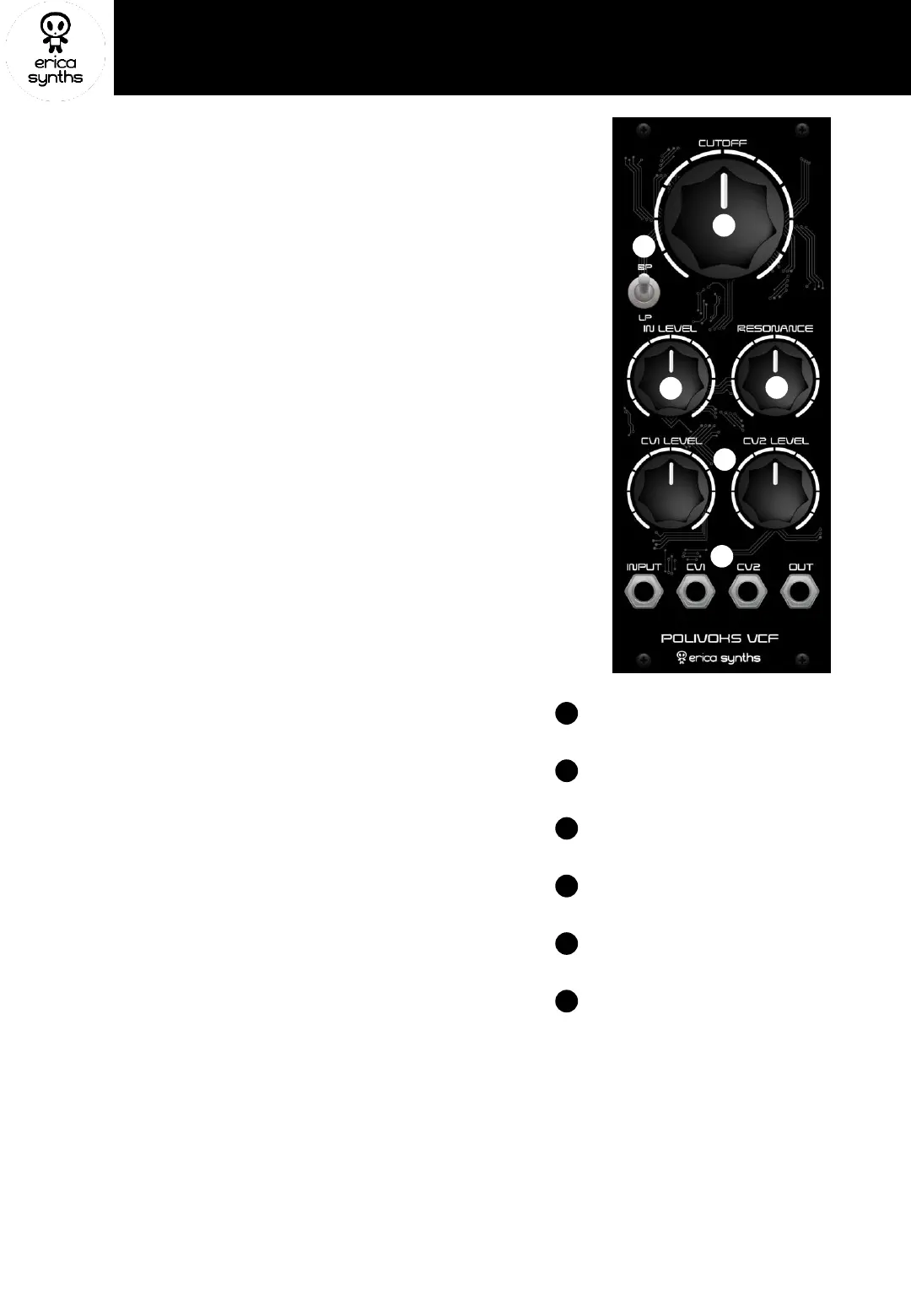

Big knob makes a difference! This is a filter
cutofffrequency control.
Adjust input signal level with this knob!
PolivoksVCF is famous for its crazy resonance
sweeps and self oscillation. Use this knob with
responsibly!
.
Adjust cutoffCV levels!
These are inputs and outputs –no mystery here.
Switch between lowpassand bandpassfilter
modes!
