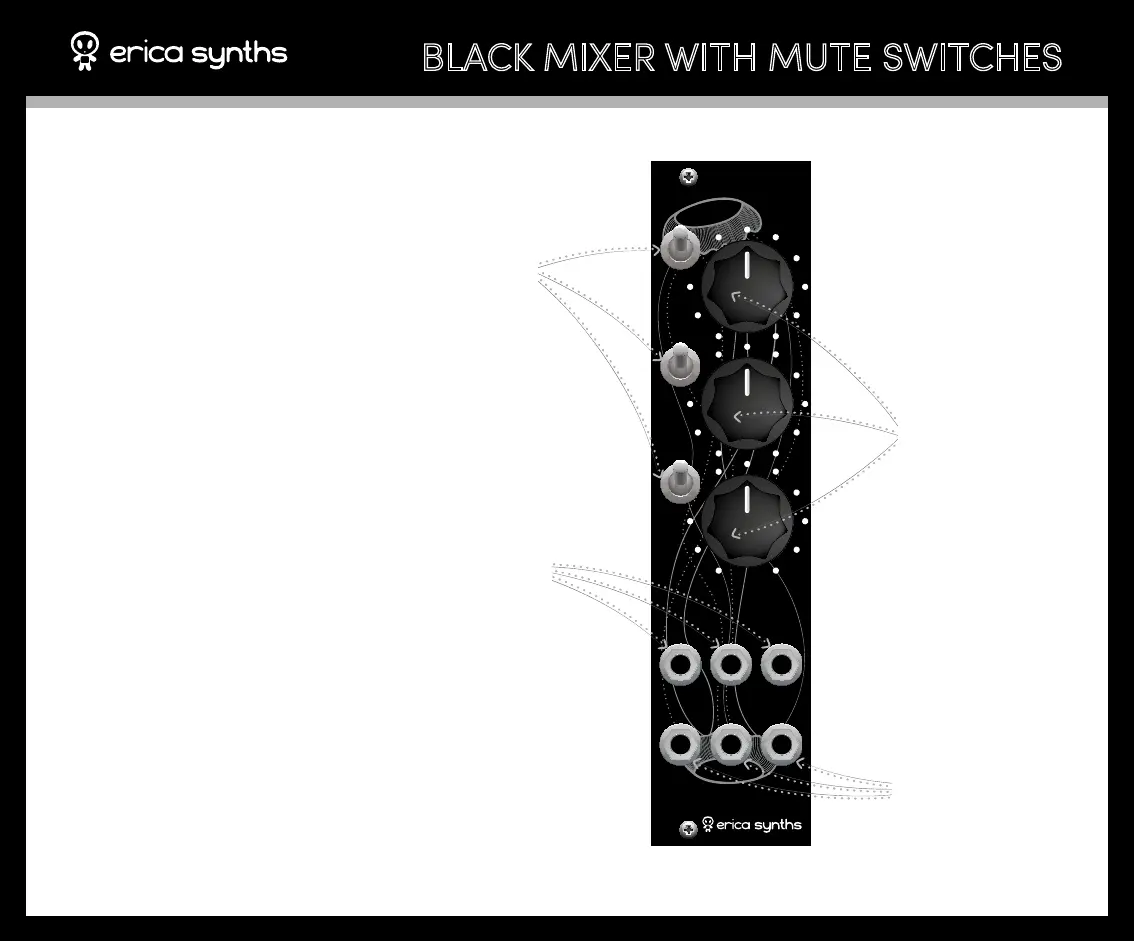

BLACK MIXER

IN1IN2IN3

OUT3OUT2OUT1

3

2

1

MUTE 1

MUTE 2

MUTE 3

THANK YOU FOR PURCHASING ERICA

SYNTHS BLACK SERIES MODULE!

Erica Black Series include high-end,

unique functionality and superior

quality modules. Only the best, highest

quality components are used, all

inputs and outputs are protected

against undesired overvoltage. When

designing Black Series, we put design

and usability superior. Big knobs

are assigned to key functions of the

module, which makes Black Series

ideal for live performances. Enjoy!

Erica Synths Black Mixer is compact,

high quality audio mixer with bonus

features – mute switch on each

input and three buered outputs.

This allows you to add audio signals

to your mix instantly and in exactly

right level, plus you can send signals

to several post-mixer devices

simultaneously, for example, split

the output signal to LP and HP VCFs

and create advanced bandpass and

notch filters.

FEATURES:

3 AC coupled inputs

Mute switch on each input

3 buered outputs

Input and output protection

Protection against reverse PSU

connection

TECHNICAL SPECIFICATIONS:

Max input level......................-10V - +10V

Mixer gain................................................1

Power consumption ..........+8mA, -8mA

Module width ....................................6HP

Module depth ...............................25mm

Apply audio signals here!

Inputs are AC coupled.

Mute switches allow

you to instantly mute

any input.

High quality audio

potentiometers adjust

signal levels.

These are independent,

buered outputs.

BLACK MIXER WITH MUTE SWITCHES
