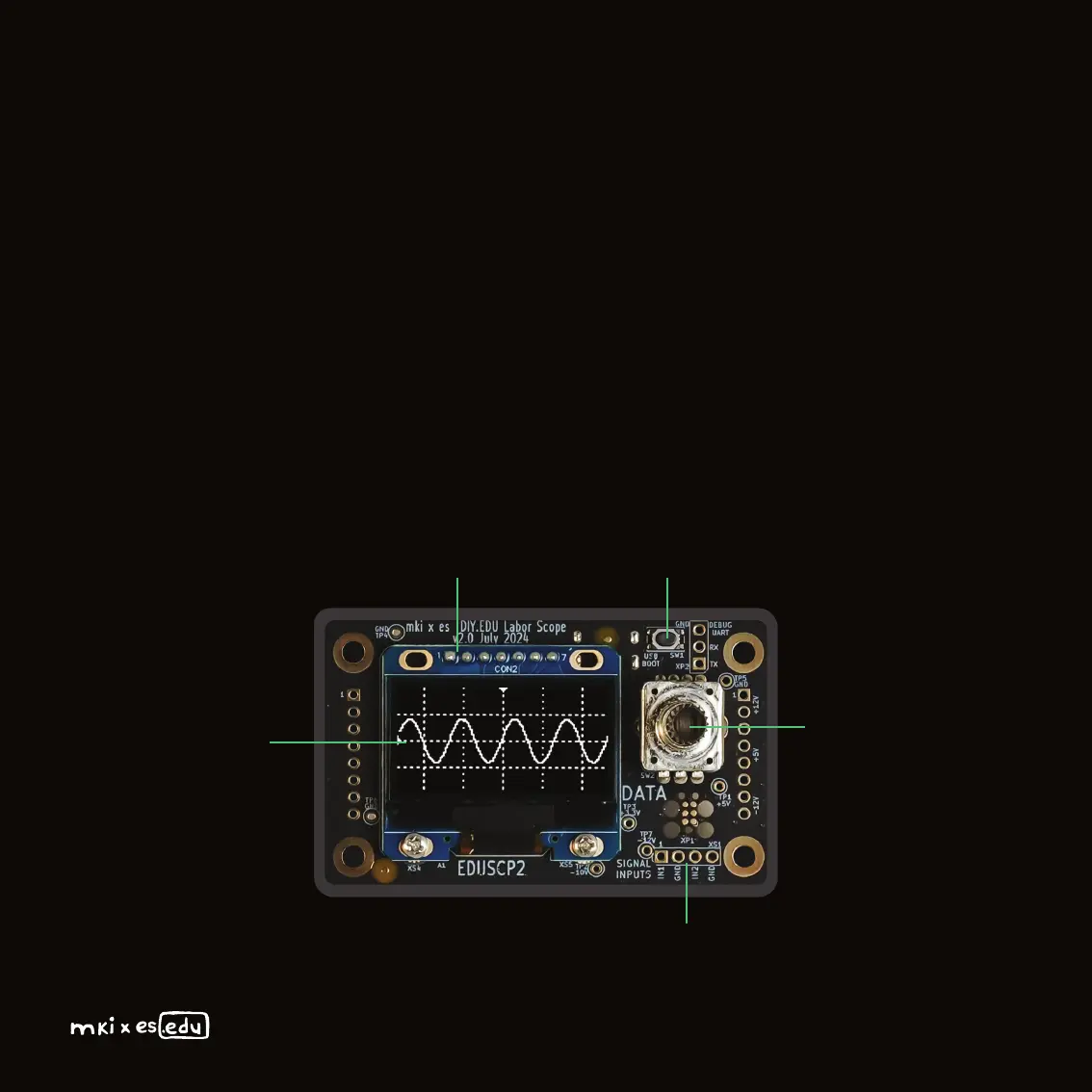

The OLED screen

gives visual

representation

of data.

The USB connector allows to

update the firmware and

provides access to extended

functionality of the Labor Scope.

The small pushbutton

is used for firmware

updates.

This is the input for the first two chan-

nels of the Labor Scope. Use only one

cable to connect the signal to the inputs,

because the ground connection is

secured through the connectors.

The encoder allows for

navigating through menu

and settings. LED on the

encoder indicates status

on the device – in the

oscilloscope mode green

LED means, the

oscilloscope is in RUN

mode, red LED – STOP

mode. In the tuner mode

the green LED indicated

exact tuning of currently

played note.

DIY.EDU Labor SCOPE

THANK YOU FOR PURCHASING THE MKI x ERICA SYNTHS DIY.EDU Labor Scope! This DIY.EDU

Labor add-on, featuring the oscilloscope, the voltmeter, the spectrometer and the tuner, turns the

Labor into self-contained electronics development and experimentation station. Enjoy!

FEATURES:

�The 3-channel oscilloscope. Two channel inputs are available on female connector, the third channel

is hard wired to the audio output of the Labor.

�Lissajous curves visualizer.

�The voltmeter, 10V range, 0.1V accuracy.

�The spectrometer, with configurable representation.

�The chromatic tuner.

NB! The DIY.EDU Labor Scope is intended for use exclusively with the Labor platform, and other

applications and modifications may lead to permanent damage of the instrument.
