GUIDE TO ASSEMBLY OF ERICA SYNTHS MULTIMODE VCF

If you are reading this, most probably, you are about to build the

Erica Synths DIY Multimode VCF! It’s a multimode filter with a CV

control over cutoffand resonance and simultaneous LP, BP and HP

outputs for serious modular patches. The core of the VCF is highly

stable, custom multimode VCF chip AS3320 (produced in Riga,

btw).

The Multimode VCF kit comes in three versions:

1)Set of 2 PCBs + AS3320 IC + mechanical parts (PCB connectors

and spacer),

2)Set of 2 PCBs + + AS3320 IC + mechanical parts (PCB connectors

and spacer) + panel,

3) Full kit.

FEATURES:

•Simultaneous LP, BP and HP outputs

•CV control over cutoff and resonance

•Cutoff CV attenuverter

•Volume drop compensation, as resonance is increased

•High temperature stability

•Skiff-friendly design

SPECIFICATIONS:

•Audio input amplitude10Vptp

•CV amplitude (full sweep)-5V -+5V

•Panel width10HP

•Module depth35mm

•Power consumption36mA@+12V, 36mA@-12V

1

3

4

2

5

6

1

2

3

4

5

6

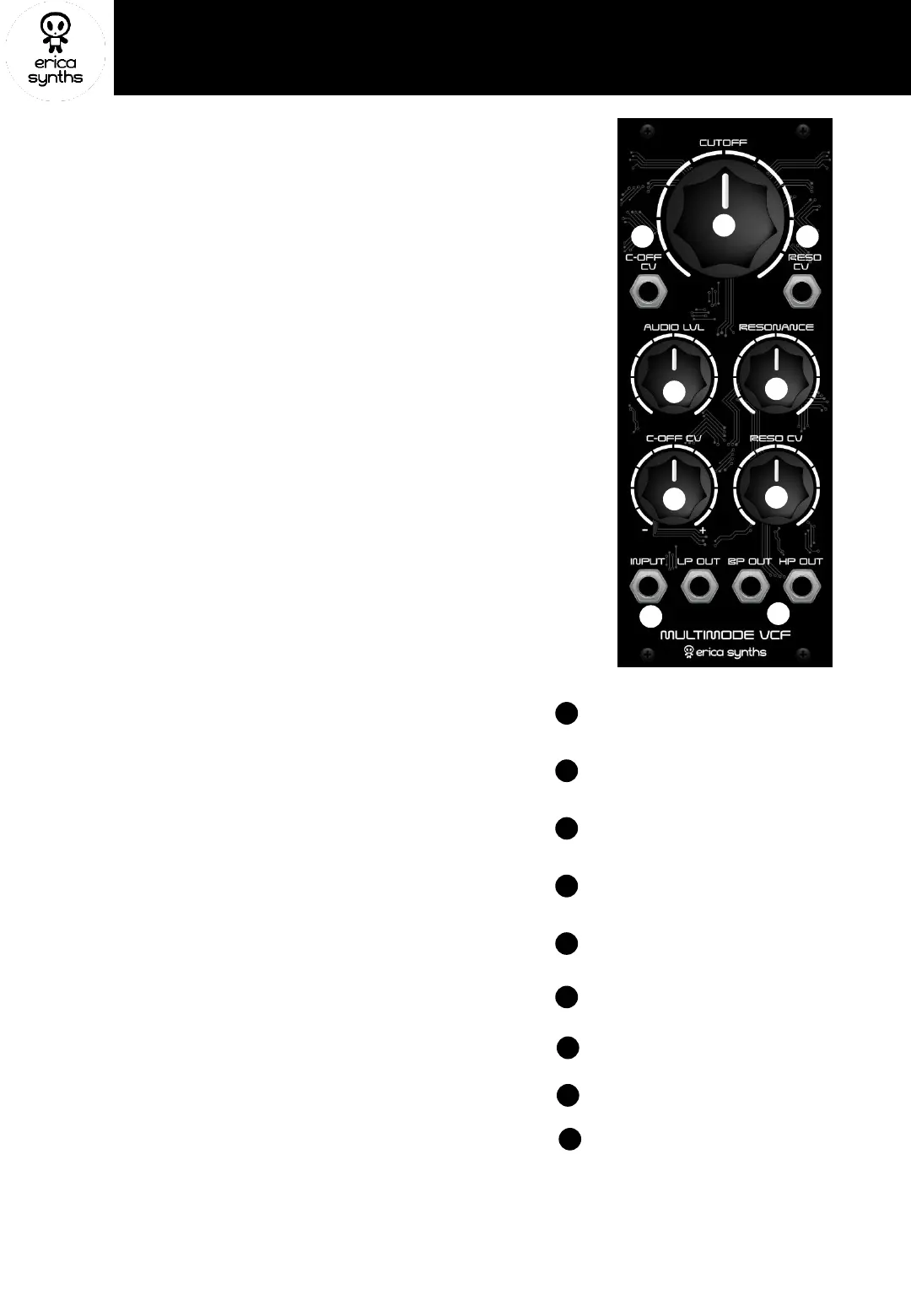

The big knob makes a difference! This is the

filter cutofffrequency control.

Adjust the input signal level with this knob!

This knob adjusts resonance level. The module

has volume drop compensation, so with

increasing resonance, the audio volume will not

reduce

This is the cutoffCV attenuverter

This is the cutoffCV input

7

8

9

This is the resonance CV input

7

This is the resonance CV attenuator

8

Patch the audio signal here!

9

These are the VCF outputs
