GUIDE TO ASSEMBLY OF ERICA SYNTHS DELAY MODULE

If you are reading this, most probably, you are

about to build Erica Synths DIY DELAY module. The

module is 45mm deep, skiff friendly, has solid

mechanical construction and doesn’t require wiring.

Erica Synths DIY Delay is hi-fi delay module with

unique functionality typically found on advanced

factory-produced units. We developed a custom DSP

MCU board (comes pre-soldered and pre-

programmed) and delay algorithms for syncableup

to 800ms delays. Selectable Tape and Digital delay,

BPM Sync, Tap Sync makes the module ideal for

nuanced sound design. Furthermore Hold (freezes

the sound up to 800ms), Add (adds several layers of

sound on top) and Reverse (reverses sound in the

hold buffer) functions allow to create crazy sonic

artefacts.

The DIY Delay kit comes in three versions:

1)Set of 2 PCBs + MCU board,

2)Set of 2 PCBs + MCU board + mechanical parts

(PCB connectors and spacer)+ panel,

3)Full kit.

FEATURES:

•Tape Delay and Digital Delay algorithms

•Up to 800ms delay time

•Syncable(clock and tap) delay time

•Delay time divisions and multiplications

•Freeze, Add and Reverse

•Manually and CV controlled delay time, feedback

and dry/wet mix

SPECIFICATIONS:

•Max Delay time800ms

•Sampling frequency48khz 24bit

•Audio output amplitude10Vptp

•CV amplitude (full span)-5V -+5V

•Panel width14HP

•Module depth45mm

•Power consumption97mA @+12V,

33mA@-12V

1

2

3

4

5

6

7

8

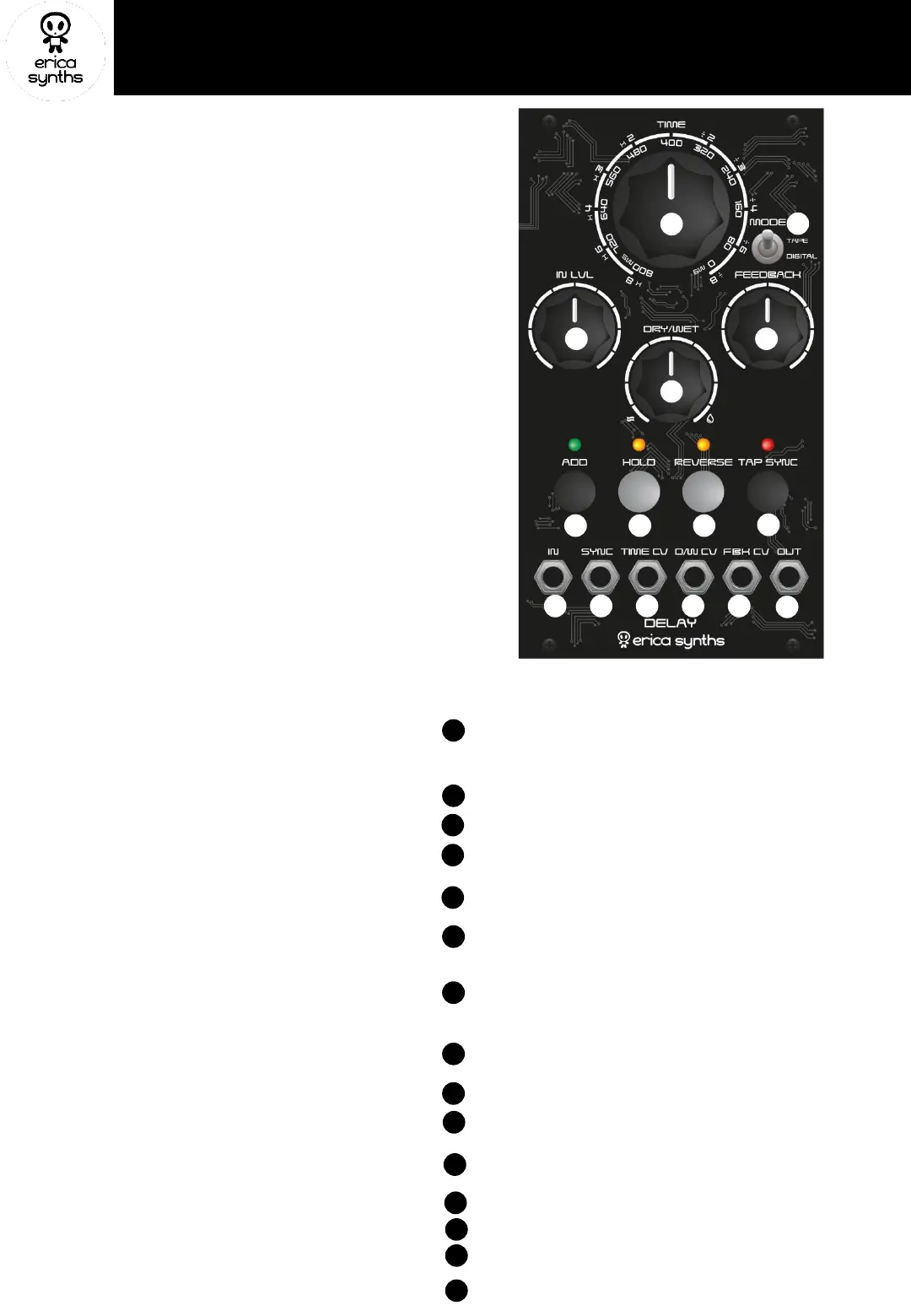

The big knob sets delay time from 0 CCW to 800ms CW. When in

Sync mode (clock applied to SYNC input or you used TAP SYNC

button), knob becomes delay time multiplier of divider. Please note

that at low sync rates divider gets disabled, as the max delay time is

800ms.

Select the delay mode –Tape or Digital (no pitch shifting)

Adjust input level to avoid clipping

Use Tap Sync button to synchronize the delay time to the BPM. To

exit sync mode push and hold the button for 2”

Push the Hold button to record an incoming signal in the module

memory buffer. Record time depends on TIME setting, and it will

start to loop the recorded buffer. To exit looping mode, push the

HOLD button again. The LED will lit, when the hold mode is active

When in Hold mode, you can push the ADD button to add more

loops to the hold buffer

9

Hit the REVERSE button to reverse delayed signal. It also

reverses all loops in the hold buffer

10

Patch audio signal here

11

This is SYNC input –the delay time will be synced to the incoming

clock and you can divide and multiply delay time via TIME knob. To

exit sync mode, push and hold the TAP SYNC button for 2”

12

This is delay time CV input

13

This is the Dry/Wet CV input that controls analogue crossfader

14

This is the Feedback CV input

15

Adjust feedback level! In full CW setting the module will go to self

oscillation

Adjust Dry/Wet setting manually! This is full analogue circuit, and

you also can control Dry/Wet via CV

This is the output of the module. We believe, you’ll enjoy

results!

1

34

2

5

879

6

101112131415
