Thank you for using our hydraulic drum picker. Our hydraulic drum picker is made of high quality steel. For
your safety and correct operation, please carefully read this instruction before using it.
This machine has been designed for lifting rotating or stacking barrel on plane and level floors Special , .
holding device designed for safe reliable and easy moving and operating It's the most convenient way to , .
handle barrels.
BEFORE YOU BEGIN
Hydraulic Drum Picker
DP25
operating instructions
Hydraulic Drum Picker
DP25
Eoslift Warehousing Equipment Co., Ltd.
No.99, Yanjia Road, Yuantong Town, Haiyan, Zhejiang
1
CONTENTS
Page 1
Page 1
Page 1
Page 2
Page 2
Page 4
1
2 Precaution
3 Operating Methods
4 Maintenance
5

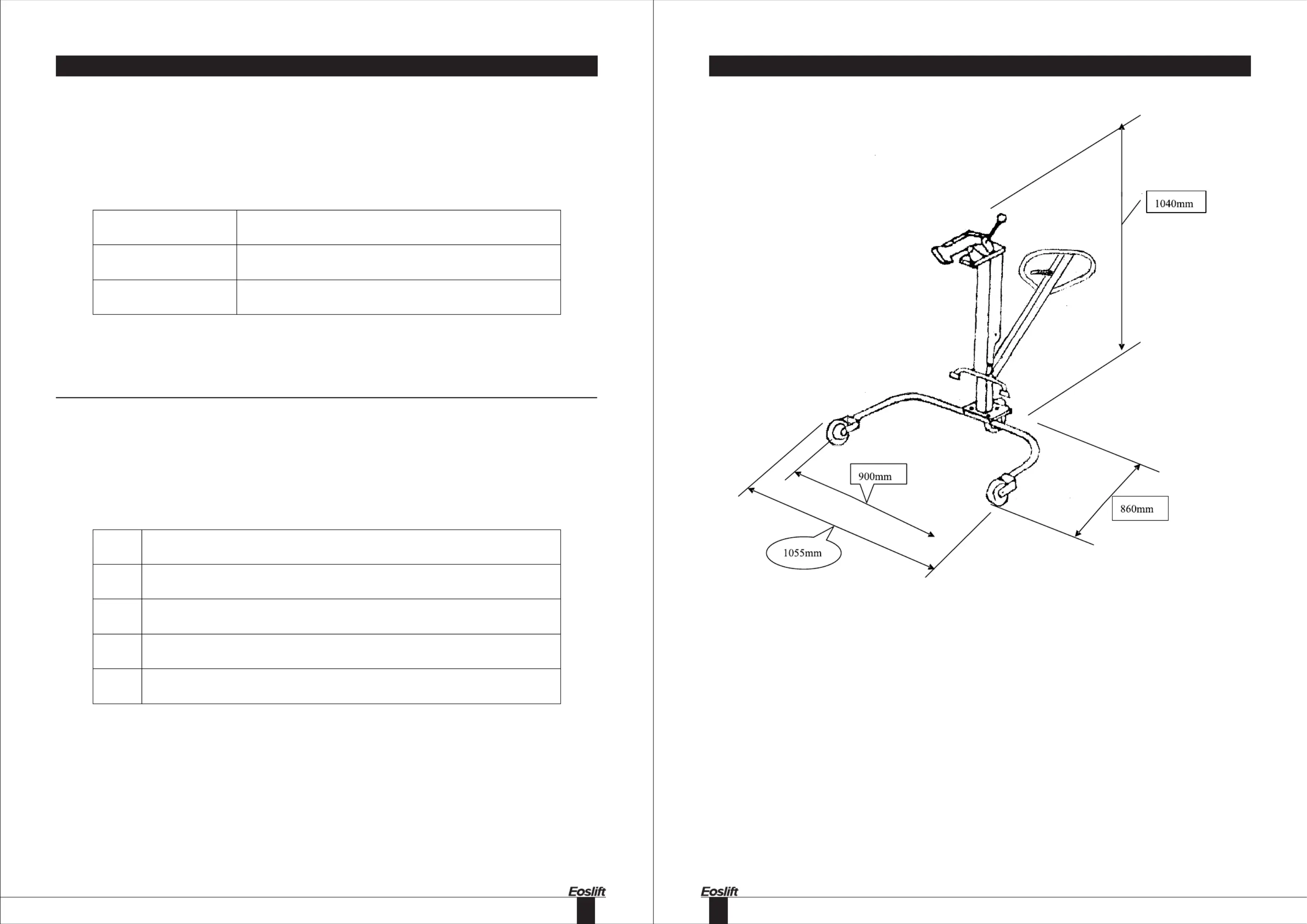

6 Describing Structure and Relevant Parts
Specification
Assembly and Fixing
1. Always use the hydraulic drum transporter on firm and flat floor.
2. Don't overload
3. Only after clamp firmly biting drum can the transporter be moved.
2.Precaution
1. Lifting drum

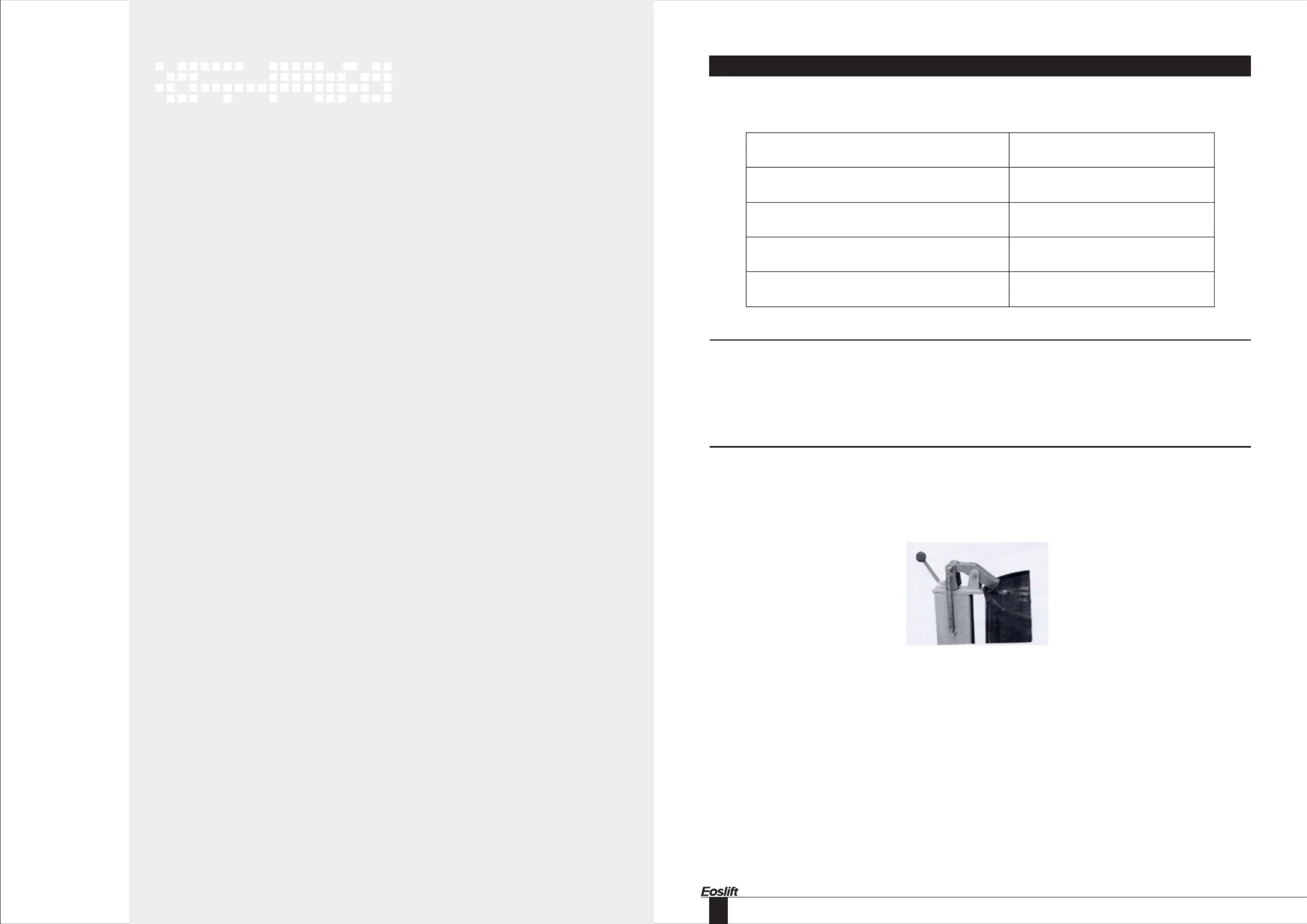

Turn joystick (Part No.3) clockwise, and then move the transporter in order to make the lifting frame (Part
No.2) contact with drum.Time after time press the handle (Part No.4) to pump up the lifting frame (Part No.2)
so that the upper edge of drum is between the clamp's teeth and the teeth on the upper end of lifting frame
(Part No.2). Please refer to the following figure.
Then push the bulbous knob that is connected to clamp (Part No.1) so as for the clamp to bite the drum firmly
and for the bulbous knob to lock the clamp (Part No.1).Continue to pump up the lifting frame (Part No.2) by
handle (Part No.4) and then the drum will be lifted.
2. transportation
Push or haul the handle (Part No.4) to move the transporter to the destination. (Certainly, if necessary,
operator can turn the handle to change the transporter's moving direction.)
3. Put down the drum
Slowly turn joystick (Part No.3) counterclockwise and lower the drum till it stands on appointed place.
Take the bulbous knob back to unlock position so as to release the clamp.
1.Specification
3.Operating Methods
Lifting capability
250kg/550lbs
Lifting height
280mm/11"
Max. drum diameter
572mm/22.5"
Max. drum length
915mm/36"
Net weight
40kg/88lbs
32
4.Maintenance
1.Do routine check of chassis (Part No.6) and front wheels. Especially ensure that rear caster is firm.
2.Do routine check of packing.
3.It is feasible and reasonable to change hydraulic oil while change packing. It is suggested to use
equivalent performance hydraulic oil.
4. Do routine check of the clamp's tooth. Replace it if tooth wears out seriously.
5. Do routine check of all the connecting parts for example pins and fasteners
5.Assembly and Fixing
Before assembly, some necessary tools must be prepared.
1. Take out all the subassemblies in following turns from the carton.
2. Fix hydraulic cylinder (b) on chassis (a) with screws (e).
3. Set lifting frame(c) on hydraulic cylinder (b) and then use steel rollers, pins and circlips to fix them.
4. Assemble handle (d) on hydraulic cylinder (b) and fix them firmly.
Use different hydraulic oil according to temperature scale below
Temperature Hydraulic Oil
-5℃—+45℃
L-HM68 Hydraulic Oil（equivalent to ISO VG68）
-15℃—-5℃
L-HM46 Hydraulic Oil（equivalent to ISO VG46）
a
Chassis
b
Hydraulic cylinder
c
Lifting frame
d Handle
e
Steel rollers, pins, circlips and screws.
