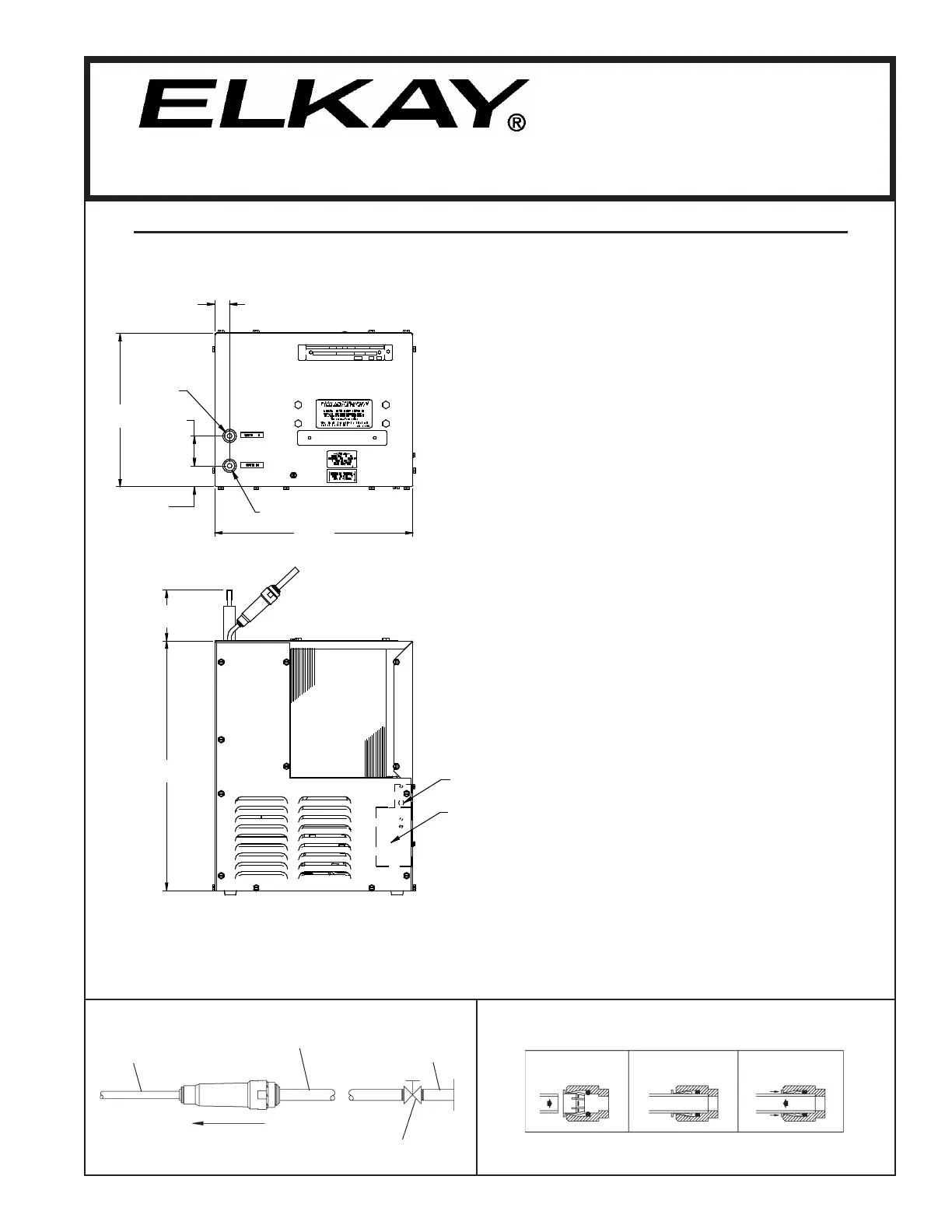

ECH8*1N ECH8*2N ECH8*3N

Page 1

1000003097 (Rev. B - 05/16)

INSTALLATION

1. When mounting unit in an open area, to insure proper ventilation,

maintain a 4" (102mm) clearance from cabinet louvers on each side

of cooler . When mounting unit in a cavity or behind a wall maintain

minimum space of 4" (102mm) on each side, 4" (102mm) on the top

and a depth of 12" (305mm).

2. Water inlet is 1/4" (6 mm) O.D. tube. Contractor to supply the

connections as required.

3. Connecting lines to be of unplated copper, thoroughly ushed to

remove all foreign matter before being connected to cooler. If

ushing does not remove all particles, a water strainer should be

installed in supply line. This cooler is manufactured in such a manner

that it does not in any way cause taste, odor, color or sediment

problems.

4. Connect cooler to building supply line with a shut-off valve and

install the in-line strainer between the valve and cooler.

5. Electrical: Make sure power supply is identical in voltage, cycle,

and phase to that specied on cooler serial plate. Never wire

compressor directly to the power supply.

6. This chiller has been designed for use with potable water ONLY.

START-UP

1. Open supply line valve.

2. Purge air from all water lines by operating bubbler valve of

fountain to which cooler is connected. Steady stream assures all

air is removed.

3. Rotate fan to insure proper clearance and free fan action.

4. Connect to electrical power.

TROUBLE SHOOTING & MAINTENANCE

Temperature Control: Factory set at 50°F (± 5°) under normal

conditions. For colder water, adjust screw on item no. 9 in

clockwise direction.

Ventilation: Cabinet louvers and condenser ns should be

periodically cleaned with brush, air hose or vacuum cleaner.

Excess dirt or poor ventilation can cause no cold water and

compressor cycling on the compressor overload protector.

Lubrication: Motors are lifetime lubricated.

Actuation of Quick Connect Water Fittings: Cooler is provided

with lead-free connectors which utilize an o-ring seal. To remove

tubing from the ttings, relieve water pressure, push in on gray

collar while pulling on the tubing. To insert tubing, push tube

straight into tting until it reaches a positive stop, approximately 3/4”.

TUBE IS SECURED

IN POSITION

SIMPLY PUSH IN

TUBE TO ATTACH

PUSH IN COLLET

TO RELEASE TUBE

PUSHING TUBE IN BEFORE

PULLING IT OUT HELPS TO

RELEASE TUBE

OPERATION OF QUICK CONNECT FITTINGS

NOTE: WATER FLOW

DIRECTION

BUILDING WATER INLET

SERVICE STOP

(NOT FURNISHED)

1/4" O.D. TUBE

WATER INLET

TO CHILLER

3/8" O.D. UNPLATED COP-

PER TUBE CONNECT

COLD WATER SUPPLY

LEGEND

A = 1/4" O.D. TUBE WATER OUTLET

B = 1/4" O.D. TUBE WATER INLET

C = TEMPERATURE ADJUSTMENT

D = ELECTRICAL

10 1/4"

261mm

16 3/4"

425mm

1 3/4"

95mm

REF.

C

D

1 3/8"

35mm

2"

50mm

A

B

13 1/4"

338mm

1"

25mm

INSTALLATION, CARE & USE MANUAL

Refrigeration Package

USES HFC-134A REFRIGERANT

Note: Danger! Electric shock hazard. Disconnect power before servicing unit.
