Lumina Matrix
USER MANUAL
40-3402
Lumina Matrix LED
1. The unit power cable (x1) + Yoke Assembly (x1)
2. Axle Bush(x2) + L Type Hexagon Spanner(x1) + M10 Washer(x4)
3. M10*20 S Type Bakelite Screws(x2) + Belleville Washer(x2)
4. M6*12 Screw(x4) + M6*20 Screw(x2) + Profile gasket(x2)
Standard DMX 5-pin In/Out
48 built-in programs except for Auto subject to Speed and Dimmer
0-100% dimming level
Standard DMX-512 protocol
01 Thru 100 Chase Speed adjustment
Power failure memory
MAIN FEATURES
LED display window-shows current activity and function state
On/Off switch
Fuse protection
Accessories(Included):
Lumina Matrix LED is provided with the ability to hang via truss hooks, clamps, etc.(sold separately). Simply attach
hook clamp, etc. to the Lumina Matrix LED’s mounts in the provided M13 holes. Before use, make sure the screws are
secured firmly.
INSTALLATION
07, 08, 10, 14, 16, 22 DMX Channels selection
Note :
Once this unit is for hanging application, it is required to use a safety rope (sold separately, which can hold at least
10 times the weight of the fixture ) to ensure the mounting safety of the fixture by attached through the holder.

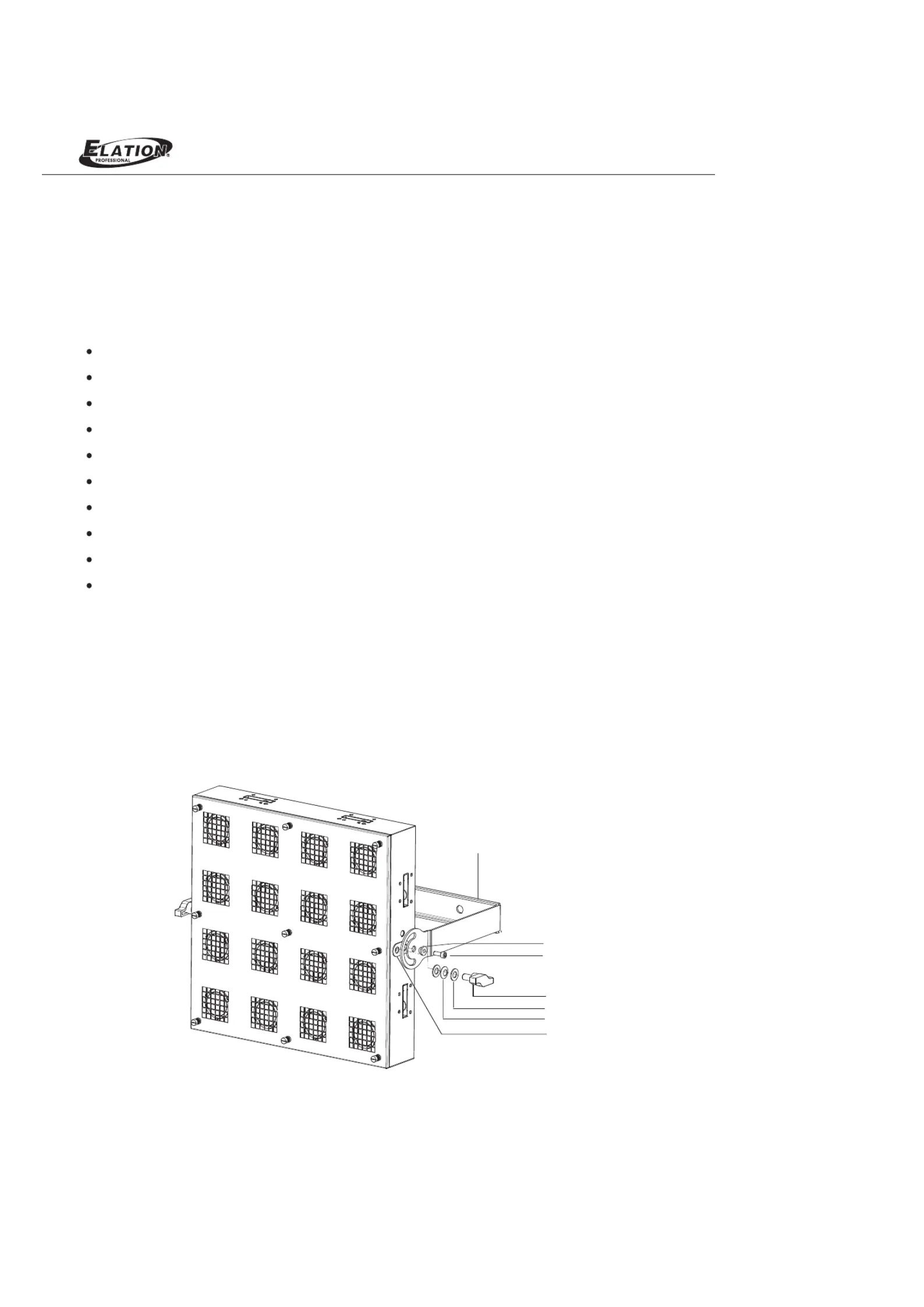

Yoke Assembly(x1)
S Type Bakelite Screw(x2)
M10 Washer(x4)
Belleville Washer(x2)
Profile Gasket (x2)
M6*20 Screw(x2)
Axle Bush(x2)
Lumina Matrix LED
GENERAL INSTRUCTIONS
W
W
W
WWARNINGS
ARNINGS
ARNINGS
ARNINGSARNINGS
After use, the front panel is extreme hot. Please wait at least 15 min. for absolute cool before touching it.
Otherwise, it causes the result of burning.
Thanks for your purchasing Elation Lumina Matrix LED lighting equipment, which is available in Warm White
(WW) version. The Lumina Matrix LED is compatible of both DMX & RDM and with 16 channel LED intensity
adjustable. Programs can be updated via RDM interface. It is available in master and slave control connection.
It is easy for users to install and operate.
For the optimum operation and best performance, please read the instruction in this manual carefully and
thoroughly.
This device is not suitable for direct mounting on normally flammable surfaces. To keep a minimum 0.2m
safety distance to any flammable materials.
DO NOT make any inflammable liquids, water or metal objects enter the unit.
This unit contains no user serviceable parts inside. This unit contains dangerous voltages, always remove
the power plug from the wall socket before any service operation and when not in use for a long time.
Earth connection is so essential.
Stop using the unit immediately in the event of serious operation problems and either contact your local
dealer for a check or contact us directly.

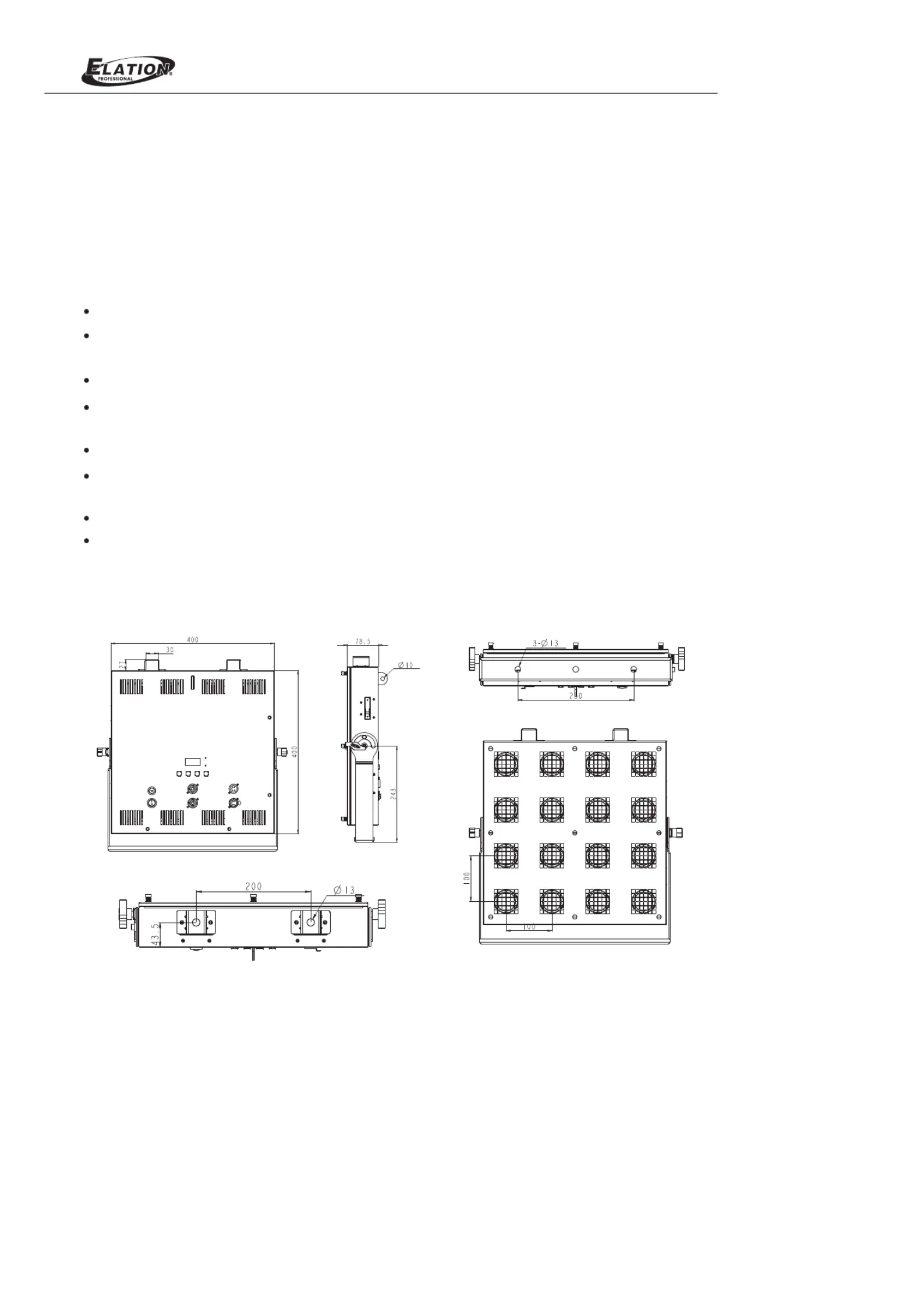

PHYSICAL DIMENSIONS
To protect against high electric shock and injury to person, open or dismantle the unit.DO NOT
NEVER try to repair the unit yourself. Repair by unqualified people could cause damage or mis-operation.
