English Version 1.0
Part No.24-004-2319-00
USER MANUAL
IMAGE PRO 300 II
Http: www.elationlighting.com
E-mail: support @ elationlighting.com
Model
Image Pro 300 II
Order Code
26-007-0267-00
26-007-0268-00
Voltage
AC230V/240V
AC100V/120V
Image Pro 300 II & Standard Accessories
Request with Film Series
Optional Accessories-Film Series
Optional Accessories-GOBO Series
Optional Accessories-Mirror Series
Optional Accessories-LENs Series
Order Code
Model
Descriptions
28-002-0249-00
26-020-0020-00
28-003-0069-00
26-007-0036-00
28-003-0066-00
28-003-0050-00
26-007-0035-00
ISP-F1
ISP-F1R
IP-F3-R
IP-2
ISP-RGW
ISP-FM
IP-3
Static slide holder
Rotating slide support
Manual or timed tri-slide changer
Rotating gobo holder
Rotating gobo wheel
Manual fixed mirror
Motorized mirror
TYPE
(H)
(I)
(J)
Order Code
28-002-0651-00
28-003-0046-00
28-002-0650-00
Model
ISP-RM
ISP-RB
ISP-RP
Descriptions
Angel adjustable rotating mirror
Rotating multiple mirror effect
Rotating panoramic effect prism
Image Pro 300 II

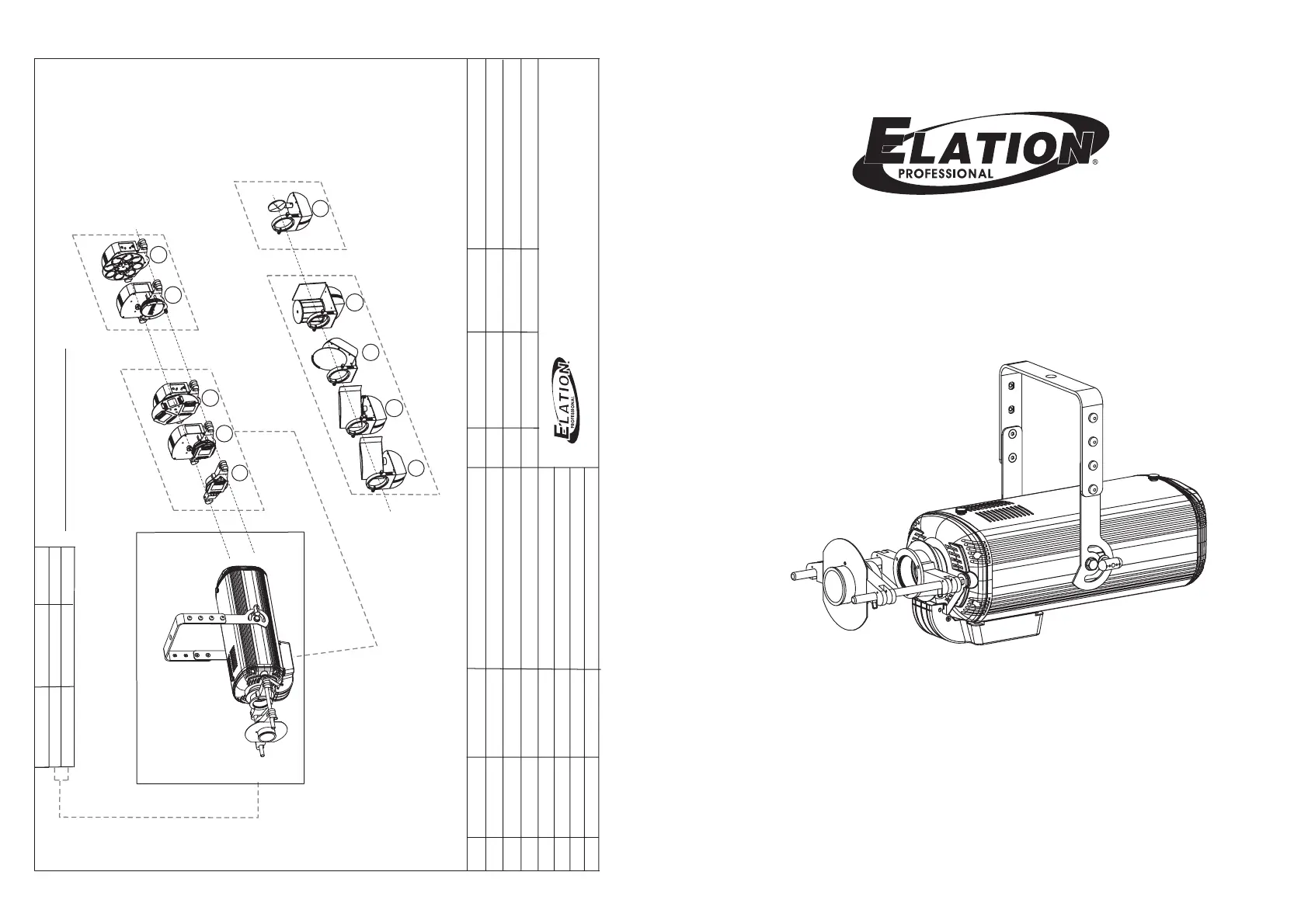

Appendix: Order Information
Image Pro 300 II
A
C
D
E
B
F
G
H
I
J
TYPE
(A)
(B)
(C)
(D)
(E)
(F)
(G)
-11-
Contents
Welcome......................................................................................2
General Information.....................................................................3
Prepare before operation.............................................................4
Lamp replacement.......................................................................5
Fuse replacement........................................................................7
Operation Guide..........................................................................7
Optional accessories & effects...............................................7/8/9
Fixed gobo holder & Metal gobos................................................9
Fixed lens holder & Single/Multi-element lens...........................10
Technical specifications..............................................................10
Appendix:Order Information........................................................11
unpacking................................................................................2
customer support....................................................................2
safety issues...........................................................................2
About our Image Pro 300 II.....................................................3
Main Features.........................................................................3
Safety Instructions..................................................................4
Fixed Lens Holder & Single/Multi-elements Lens
-10-
Technical Specifications
Overall Size:
Weight(Approx):
Lamp Type:
Mains Supply:
Power Consumption:
Fuse(Slow acting)
Cooling:
Optional Accessories:
(Included)
555x240x262mm
10.5Kg
HTI 300W/DEL lamp 85V/300W, 750hours
AC 100/120V~50/60Hz
450 Watts maximum
T6.3A 250V 5x20mm
Forced air with axial fan
One fixed gobo holder + 6 metal gobos
One fixed lens holder
1:2.4/100mm single-element lens
*******
All rights reserved! Improvement and changes to specifications, design and
this user's manual, may be made at any time without prior notice.
The Image Pro 300 II supplies the Lens Hoder as standard equipment together
with the chosen lens and on which mirror accessories can be mounted; by
positioning the support correctly on the guides, the projected image can be
focused perfectly.
Single/Multi-element lens
mounting
supporting plate

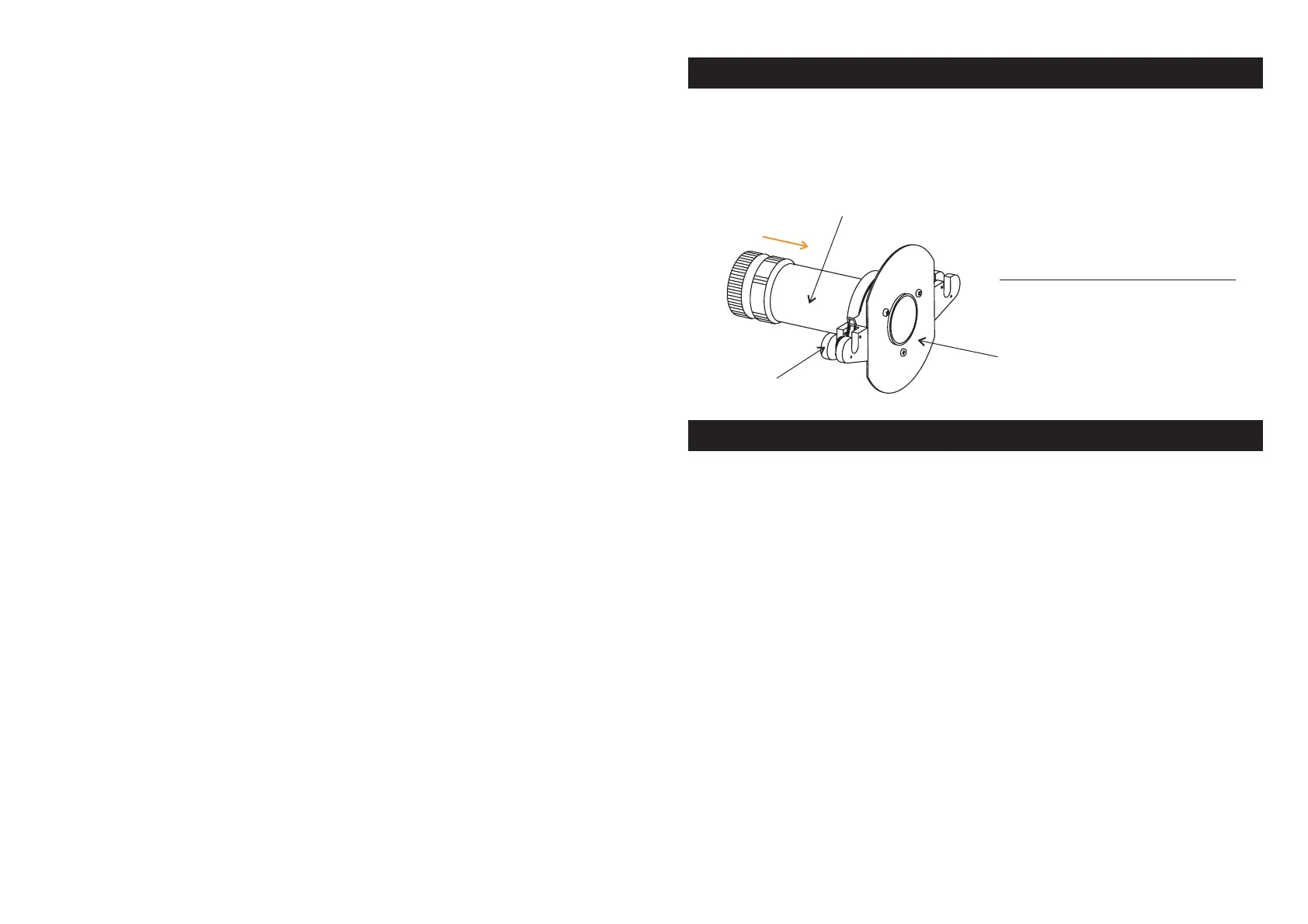

Support lens and effects, standard
Product specificaties
