ELATION
User Instructions
Introduction: Thank you for purchasing the Elation® FS-150SCI.
™
To optimize the performance of this product, please read these oper-
ating instructions carefully to familiarize yourself with the basic opera-
tions of this unit. The FS-150SCI
™
is a high powered follow spot with
automated controls for the iris and color changer. The unit is fully DMX
compatible and can be controlled via an universal DMX controlled or by
the built in controller on the rear of the unit.
Customer Support: Elation® provides a toll free customer sup-
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may also
visit us on the web at www.elationlighting.com for any comments or sug-
gestions. Service Hours are Monday through Friday 9:00 a.m. to 5:00
p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-3108
E-mail: support@elationlighting.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
your nearest Elation® dealer.
FS-150SCI™ Introduction
©Elation Professionals® - www.elationlighting.com - FS-150SCI™ Instruction Manual Page 2
FS-150SCI™ Unpacking
Every FS-150SCI™ has been thoroughly tested and has been shipped
in perfect operating condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your xture for any damage and be
sure all equipment necessary to operate the unit has arrived intact. In
case damage has been found or parts are missing, please contact our
toll free customer support number for further instructions.
DISCHARGE LAMP WARNING!
This xture is tted with a discharge lamp which is highly susceptible to
damage if improperly handled. Never touch lamp with your bare ngers
as the oil from your hands will shorten lamp life. Also, never move the
xture until the lamp has had ample time to cool. Remember, lamps
are not covered under warranty conditions.
Elation Professionals
4295 Charter Street
Los Angeles Ca. 90058
www.elationlighting.com
Power Supply: Before plugging your unit in, be sure the source volt-
age in your area matches the required voltage for your Elation® FS-
150SCI.™ The Elation® FS-150SCI
™
is available in a 115v and 230v
version. Because line voltage may vary from venue to venue, be sure to
plug your unit into a matching wall outlet before attempting to operate.

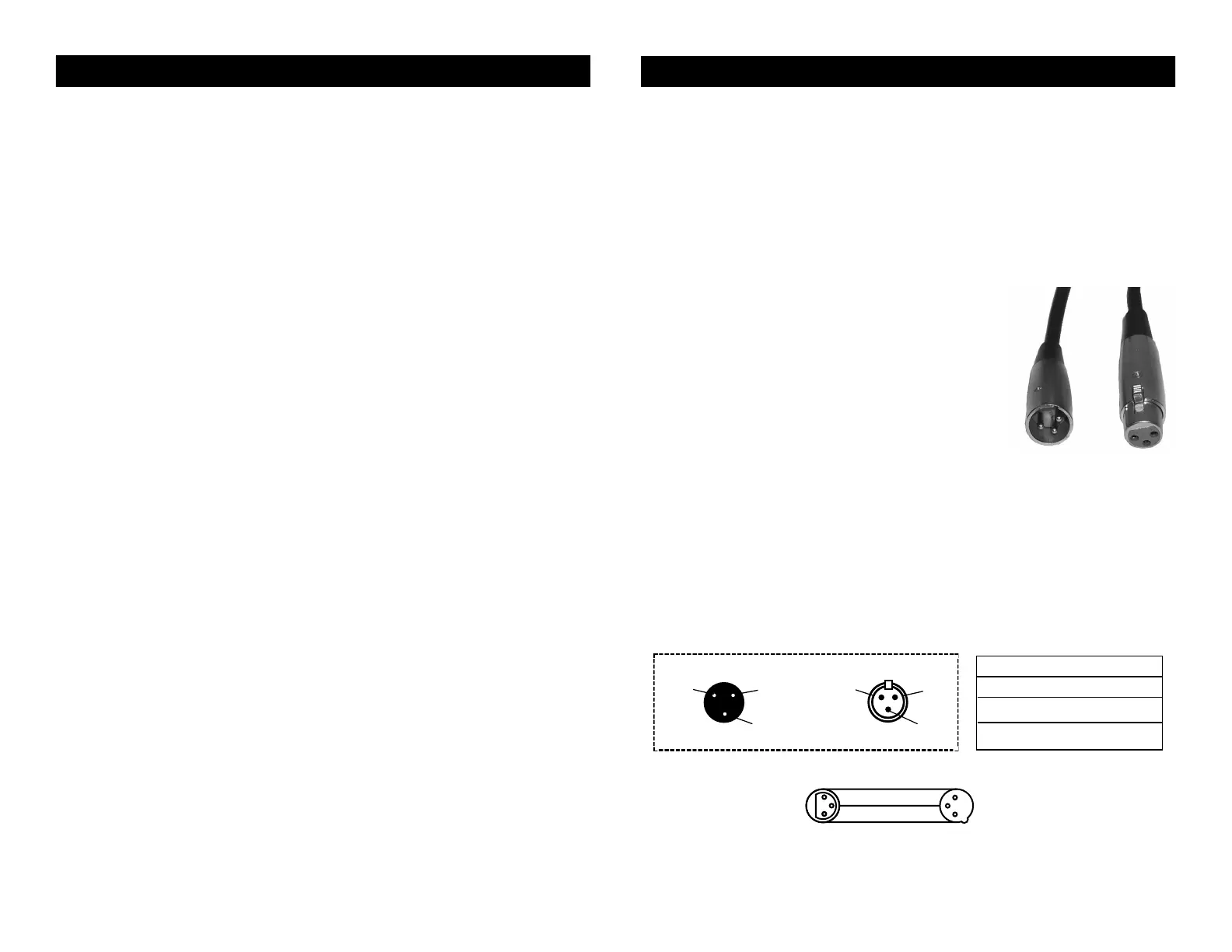

Data Cable (DMX Cable) Requirements (For DMX Operation
Only and Master-Slave): The FS-150SCI can be controlled via
DMX-512 protocol. The Elation® FS-150SCI™ is a three channel DMX
unit. The DMX address is set on the front panel of the FS-150SCI.
Your unit and your DMX controller require a stan-
dard 3-pin XLR connector for data input and data
output (Figure 1). If you are making your own
cables, be sure to use standard two conductor
shielded cable (This cable may be purchased at
almost all pro sound and lighting stores). Your
cables should be made with a male and female
XLR connector on either end of the cable. Also
remember that DMX cable must be daisy chained
and can not be split.
Notice: Be sure to follow gure three when making your own cables.
Do not use the ground lug on the XLR connector. Do not connect the
cable’s shield conductor to the ground lug or allow the shield conductor
to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behavior.
©Elation Professionals® - www.elationlighting.com - FS-150SCI™ Instruction Manual Page 3
©Elation Professionals® - www.elationlighting.com - FS-150SCI™ Instruction Manual Page 4
Figure 1
Figure 2
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 3
FS-150SCI™ Set Up
1 Ground
1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Shield
SAFETY PRECAUTIONS:
• Do not spill water or other liquids in to or on to your unit.
• Be sure that the local power outlet match that of the required voltage
for your unit.
• Do not attempt to operate this unit if the power cord has been frayed
or broken. Please route your power cord out of the way of foot traf-
c.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the top cover under any conditions. There are no
user serviceable parts inside.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged in any
way.
• Never operate this unit when it’s cover is removed.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• This unit is intended for indoor use only, use of this product outdoors
voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
FEATURES:
• Seven vibrant colors plus white.
• Long life (9000 hours) SC-150 discharge lamp.
• Variable speed shutter.
• Micro-stepping motors for smooth color transitions.
• Built in controller - Run up to 16 heads with the built-in controller.
• Master/Slave configuration
• DMX-512 protocol capable
• Full Focusing.
• Fully automated IRIS.
• Fan cooled.
• Uses 3 DMX Channels.
FS-150SCI™ Introduction
