ACL PAR 200™
SKU# ACL047

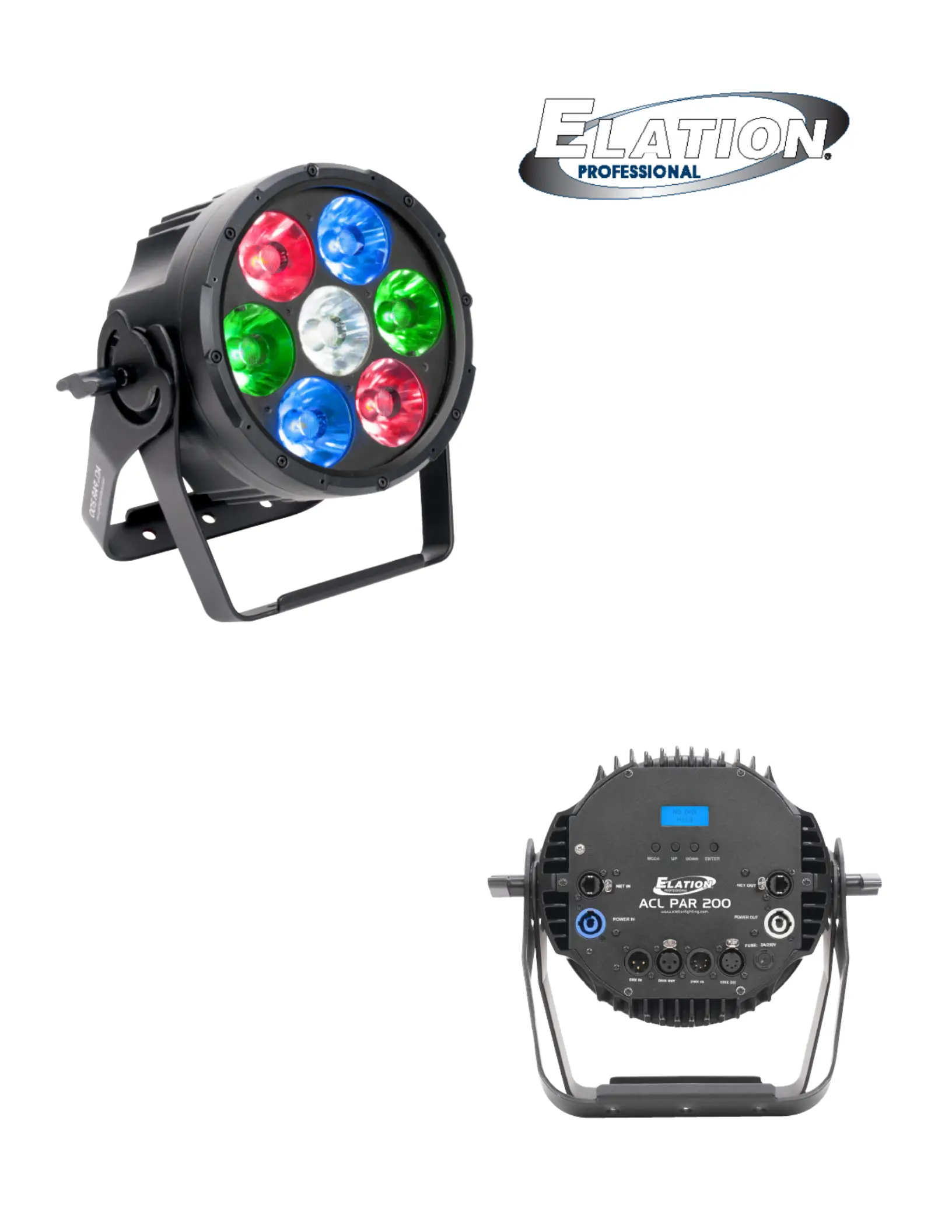

The new ACL PAR 200™ is a versatile par luminaire
featuring (7) individual 15W RGBW 4-in-1 LEDs and the new
advanced collimator optic lens, producing a laser-like
homogenized 4° color-changing beam from each lens which
combined produce a 11° beam angle. Features include full
individual pixel control, strobe, and se
lectable dimming curve
effec
ts, DMX, RDM (Remote Device Management),
KlingNET™ and Ar
t-NET support, 3/5pin XLR, power , Cable
and RJ45 ethernet in/out connections, (4) button control full
color 180° reversible menu display, 110W max power
c
onsumption, and a multi-voltage universal auto
switching power supply (100-240v).
FEATURES
Versatile 11° Beam Par Luminaire
New Advanced Collimator Optic Lens
(7) Pixel Controlled 15W RGBW 4-in-1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Strobe and Selectable Dimming Curve Effects
RDM, KlingNET™ and Art-NET (DMX Over Ethernet)
Flicker Free Operation for Broadcast TV and FILM
Specifications are subject to change without notice ©Elation Professional 09/09/15
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
ELATION I ACL PAR 200™ I Product Specification Sheet
SOURCE
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life
PHOTOMETRIC DATA ( Full ON)11°
56,149 LUX 5,216 FC @3.3’ (1m)
36,935 LUX 3,431 FC @6.6’ (2m)
20,439 LUX 1,899 FC @9.8’ (3m)
11,897 LUX 1,105 FC @13.1’ (4m)
7,617 LUX 708 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(11) DMX Channel Modes
( : / : / 6 / 8 / / / 4CH1 04 4CH2 04 10 12 27 28 / / 30 32 / / 35)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Power Cable In/Out
SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 5.6” (142mm)
Vertical Height: 11.8” (300mm)
Weight: 13.0 lbs. (5.9 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Linking: 9pcs Max @110V / 21pcs Max @230V
5F to 113°F (-15°C to 45°C)
APPR ALS / RATINGSOV
CE | IP30
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Any (360°)
INCLUDED ITEMS
Power Cable
sp atecific ions
I
ELA A PAR TION CL 200™
I
www.elationlighting.com
Specifications are subject to change without notice ©Elation Professional 09/09/15
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
DI L IAGR SMEN ONASI D AM
PR A SODUCT SPECIFIC TION
PHOT D AOMETRIC AT
OP ONA ESSOTI L ACC RIES
1m
2m
3m
4m
5m
13° Field
11° Beam
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver)
PLC3 3’ (1m) PRO Link Cable
CAT6PRO5 5’ (1.5m) CAT6 Ethernet Cable
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
Additional cable lengths available
1 m 3.3 ft 2 m 6.6 ft 3 m 9.8 ft 4 m 13.1 ft 5 m 16.4 ft
11° Beam
0.19 0.6 0.39 1.3 0.55 1.8 0.75 2.5 0.92 3.0
13° Field
0.29 1.0 0.83 2.7 0.83 2.7 1.11 3.6 1.42 4.7
lux fc lux fc lux fc lux fc lux fc
RED LEDs 11,493 1,068 7,530 700 4,135 384 2,319 215 1,554 144
GREEN LEDs
22,716 2,110 16,311 1,515 10,157 944 6,141 570 3,865 359
BLUE LEDs
4,664 433 3,352 311 1,932 179 1,120 104 713 66
WHITE LEDs
37,175 3,454 19,496 1,811 9,524 885 5,512 512 3,421 318
FULL ON
56,149 5,216 36,935 3,431 20,439 1,899 11,897 1,105 7,617 708
