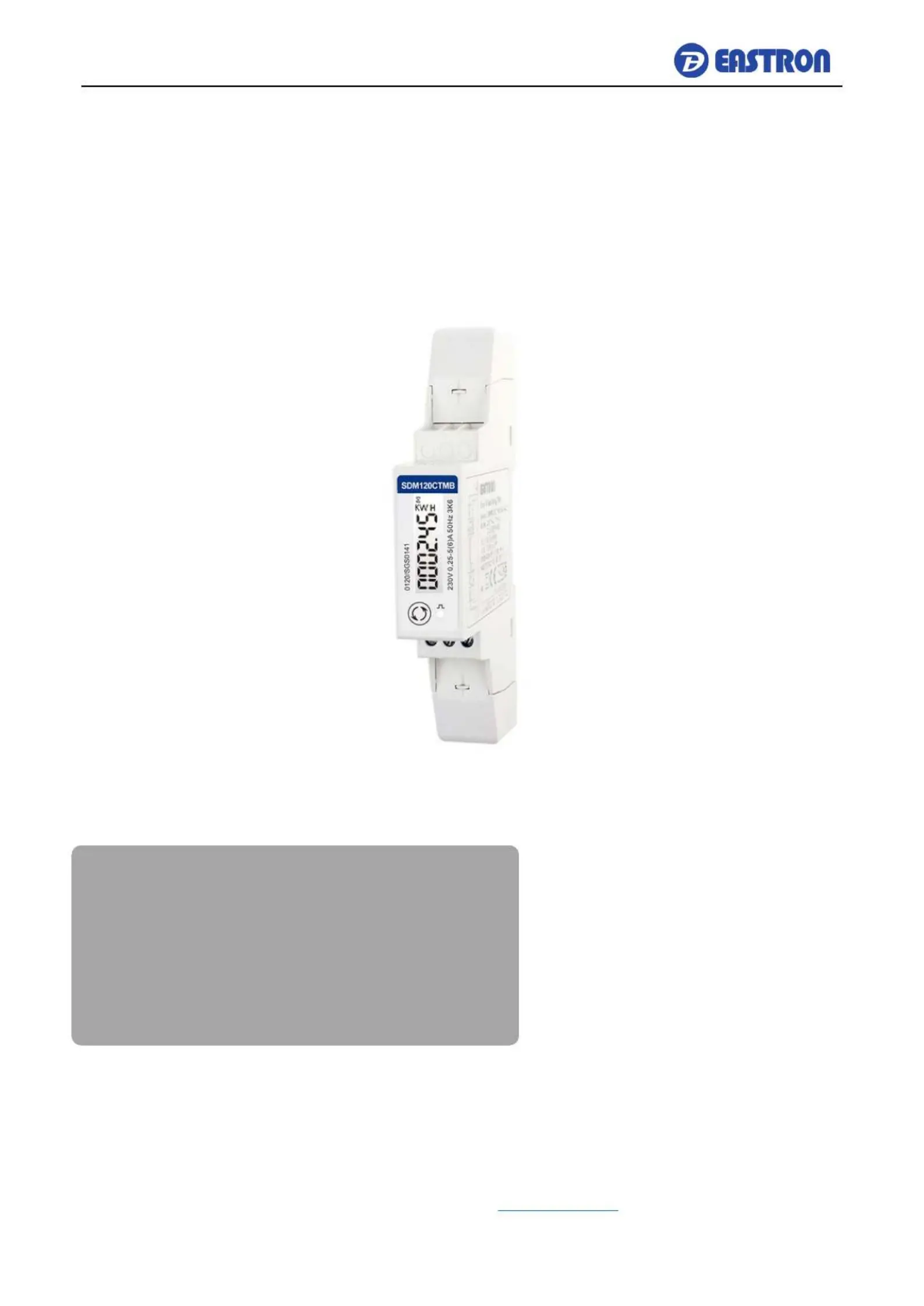

Eastron SDM120- MB CT User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Add: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn E mail: sales@eastrongroup.com
SDM1 MB 20CT
Single ail- RPhase Multifunction DIN Meter
Measures kWh, kVArh, k kW, kVAr, VA, PF, Hz, dmd, V, A, etc.
Bi-directional measurement IMP & EXP
Two pulse outputs
M-Bus communication
Din rail mounting 35mm
1A or 5A CT connection
Better than Class 1 accuracy
User Manual V1.0
Eastron SDM120- MB CT User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Add: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn E mail: sales@eastrongroup.com
Application
The energy-meters are used to measure single-phase applications like residential, utility and Industrial. The unit
measures and displays various important electrical parameters. It equipped with a white -back lighted LCD screen
for prefect reading. As well as a Mbus communication port for remote reading and monitoring. Bi -directional
energy measurement makes it a good choice for solar PV energy metering. The compact design and din rail
installation provides an easy and economical solution for your metering demand.
PART 1 Specification
General Specifications
Voltage AC (Un) 230V
Voltage Range 176~276V AC
Base Current (Ib) 5A
Power consumption <2W/10VA
Frequency 50/ 60Hz(±10%)
AC voltage withstand 4KV for 1 minute
Impulse voltage withstand 6KV-1.2uS waveform
Overcurrent withstand 2 5s 0Imax for 0.
Pulse output /1 0.001/0.01 0.1/1 kWh/imp (configurable)
Pulse output 2 1000imp/kWh (default)
Display LCD with white backlit
Max. Reading 999999 kWh
Accuracy
Voltage 0.5% of range maximum
Current 0.5% of nominal
Frequency -0.2% of mid frequency
Power factor 1% of Unity
Active power 1% of range maximum
Reactive power 1% of range maximum
Apparent power 1% of range maximum
Active energy - Class 1 IEC62053 21
Class B EN50470-1/3
Reactive energy - Class 2 IEC62053 23
Environment
Operating temperature - 25℃to +55℃
Storage and transportation temperature to +70 - 40℃ ℃
Reference temperature 23℃±2 ℃
Relative humidity 0 to 95%, non- condensing
Eastron SDM120- MB CT User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883
Add: No.1369 Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web: www.eastron.com.cn E mail: sales@eastrongroup.com
Altitude 0 up to 2 00m
Warm up time 3s
Installation category CAT II
Mechanical Environment M1
Electromagnetic environment E2
Degree of pollution 2
Output
Pulse Output
The meter provides two pulse outputs. Both pulse outputs are passive type.
Pulse output 1 is configurable. The pulse output can be set to generate pulses to represent total /import/ export
kWh or kVArh.
The pulse constant can be set to generate 1 pulse per: 0.001/0.01/0.1/1 kWh/kVArh.
Pulse width: 200/100/60ms
Pulse output 2 is non-configurable. It is fixed to total kWh. The constant is 1000imp/kWh.
M-bus Communication EN13757- 3
The meter provides a Mbus port for remote communication. The protocol fully comply with EN13757-3. The
following M-bus communication parameters can be configured via M-bus communication.
Baud rate: 300 600, 1200, 2400, 4800, 9600 bps. Default: 2400
Parity: NONE/EVEN/ODD
Stop bits: 1 or 2
M-bus Address: 1 to 250 (default 1)
M-bus Secondary address: 00 00 00 00 to 99 99 99 99
Mechanics
Din rail dimensions 18 8 4 x11 x6 (WxHxD) DIN 43880
Mounting DIN rail 35mm
I ngress protection IP51 (indoor)
Material Self-extinguishing UL94V-0
PART 2 Operation
Initialization Display
When it is powered on, the meter will initialize and do self-checking.
