Refer to the numbered drawings that relate to the numbered paragraphs
in the instruction manual
GB
1
TR2S GB 02 2017
Contents
Introduction 1
Installation 1
Use and safety 3
Cleaning, hygiene and storage 5
Fault-fi nding 5
Maintenance 6
Compliance with regulations 7
Parts list - exploded view A
Electrical diagrams C
05/2019
Introduction
The User Manual contains useful information for
the user on how to work correctly and in complete
safety, and is designed to make it easier to use the
machine (called “machine” or “appliance” below).
What follows is in no case intended to be a long list of warnings
and constraints, but rather as a series of instructions meant to
improve the service provided by the machine in every respect,
and particularly to avoid a series of injuries or damage to equi-
pment that might result from inappropriate procedures for use
and management.
It is essential that all the people responsible for transporting,
installing, commissioning, using, maintaining, repairing or
dismantling the machine should consult this manual and read
it carefully before proceeding with the various operations, in
order to avoid any incorrect or inappropriate handling that
might be result in damage to the machine or put people’s
safety at risk.
It is just as important that the Manual should always be avai-
lable to the operator and it should be kept carefully where the
machine is used ready for easy and immediate consultation in
case of any doubt, or in any case, whenever the need arises.
If after reading the Manual, there are still any doubts concerning
how to use the machine, please do not hesitate to contact the
Manufacturer or approved After Sales Service provider, who
is constantly available to ensure quick and careful service for
improved machine operation and optimum effi ciency.
Note that the safety, hygiene and environmental protection stan-
dards currently applicable in the country where the machine is
installed must always be applied during all phases of machine
operation. Consequently it is the user’s responsibility to ensure
that the machine is operated and used solely under the optimum
safety conditions laid down for people, animals and property.
The reference language for these instructions is French.
• Read the instruction manual carefully before using the
appliance.
• Keep the instruction handbook for future reference.
• Install the appliance in a well-ventilated place
sos
• Place emergency telephone numbers in a visible
position.
• Installation and maintenance must only be carried out
by qualifi ed personnel authorised by the manufacturer. For
assistance, contact an authorised service centre.Demand
original replacement parts.
• The appliance must not be used by people (including
children being supervised not to play with the appliance)
with limited physical, sensory or mental abilities or without
experience and knowledge of it, unless instructed in its use
and supervised by those responsible for their safety.
• The appliance must be used by trained personnel about
the risks involved.
• Do not leave the appliance unattended when operating.
• Turn the appliance off in case of fault or poor operation.
• Do not use products (even if diluted) containing chlorine
(sodium hypochlorite,hydrochloric or muriatic acid,etc.) to
clean the appliance or the fl oor under it. Do not use metal
tools to clean steel parts (wire brushes or Scotch Brite type
scouring pads).
• Do not allow oil or grease to come into contact with
plastic parts.
•
Do not allow dirt, fat, food or other residuals to form depo-
sits on the appliance.
• Do not clean the appliance with direct jets of water.
• This handbook is available in digital format by contacting
the dealer or reference customer.
• Install a circuit breaker ahead of the appliance. The contact
opening distance and max.leakage current must comply with
the regulations in force.
• The appliance must be earthed; Connect to appliance to an
earth; it must be included in an equipotential node by means
of the screw located under the frame. The screw is marked
with the symbol .
• It is advisable to have the appliance inspected by an au-
thorised person at least every 12 months. For this purpose,
it is advisable to stipulate a servicing contract.
•
Persons wearing pacemakers should see a doctor
to know if their safety is guaranteed near this type of
appliance.
• The symbol given on the product indicates
that it should not be considered domestic waste, but
must be correctly disposed of in order to prevent any
negative consequences for the environment and the
health of persons.For further information regarding
the recycling of this product, contact the product
agent or local dealer, the after-sales service or the
local body responsible for waste disposal.
• The symbol « Read operator’s manual» indicate
that the operator’s manual should be read before continuing
the operation.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualifi ed persons
in order to avoid a hazard.
Failure to observe the above can compromise the safety of the appliance. Failure
to observe the above invalidates the waranty.
The Manufacturer declines any liability for damage and malfunctioning caused by:
•
non-compliance with the instructions contained in this manual;
•
repairs not carried out in a workmanlike fashion, and replacements with parts different from
those specifi ed in the spare parts catalogue (the fi tting and use of non-original spare parts and
accessories can negatively affect machine operation and invalidates the warranty);
•
operations by non-specialised technicians;
•
unauthorised modifi cations or operations;
•
inadequate maintenance;
•
improper machine use;
•
unforeseeable extraordinary events;
•
use of the machine by uninformed and untrained personnel;
•
non-application of the current provisions in the country of use, concerning safety, hygiene and
health in the workplace.
The Manufacturer declines any liability for damage caused by arbitrary modifi cations
and conversions carried out by the user or the Customer.
The employer, workplace manager or service technician are responsible for identifying and choo-
sing adequate and suitable personal protection equipment to be worn by operators, in compliance
with regulations in force in the country of use.
Electrolux Professional declines any liability for inaccuracies contained in the manual, if due to
printing or translation errors.
Any supplements to the installation, use and maintenance manual the Customer receives from the
Manufacturer will form an integral part of the manual and therefore must be kept together with it.
RECIPIENTS OF THE MANUAL
This manual is intended for:
• the carrier and handling personnel;
• installation and commissioning personnel;
• the employer of machine users and the workplace
manager;
• operators for normal machine use;
• specialised technicians - after-sales service.
TRANSPORT, HANDLING AND STORAGE
Transport (i.e. transfer of the machine from one place to
another) and handling (i.e. transfer inside workplaces)
must occur with the use of special and adequate means.
DISPOSAL OF PACKING
The packing must be disposed of in compliance with the
current regulations in the country where the appliance
is used. All the packing materials are environmentally
friendly. They can be safely kept, recycled or burnt in an
appropriate waste incineration plant. Recyclable plastic
parts are marked as follows:
PE
polyethylene: outer wrapping, instruction
booklet bag
PP
polypropylene: straps
PS
polystyrene foam: corner protectors
The parts in wood and cardboard can be disposed of,
respecting the current regulations in the country where
the machine is used.
PERSONAL PROTECTION EQUIPEMENT
Given below is a summary table of the Personal
Protection Equipment (PPE) to be used during the
various stages of the machine’s service life.
Stage
Protective
garments
Safety
footwear
Gloves Glasses Safety
heimets
Transport
Handling
Unpaccking
Assembly
Normal use
Adjustments
R o u t i n e
cleaning
Extraordina-
ry cleaning
M a i n t e -
nance
Dismantling
Scrapping
Key: PPE REQUIRED
PPE AVAILABLE OR TO BE USED IF NECESSARY
PPE NOT REQUIRED
During , gloves protect hands from contact Normal use
with hot food or hot parts of the appliance.
KEEPING THE MANUAL
The manual must be carefully kept for the entire life of
the machine, until scrapping.The manual must stay with
the machine in case of transfer, sale, hire, granting of
use or leasing.
PE
PP
PS
2
TR2S GB 12 2017
General safety rules
The machines have electric and/or mechanical safety devices for protecting workers and the machine
itself.
Therefore the user must not remove or tamper with such devices.
The Manufacturer declines any liability for damage due to tampering or their non-use.
ATTENTION
Do not use the machine without the guards or with the protection devices deactivated.
Improper use is any use different from that specifi ed in this manual. During machine operation, other
types of work or activities deemed improper and that in general can involve risks for the safety of opera-
tors and damage to the appliance are not allowed.
Reasonably foreseeable improper use includes:
•
lack of machine maintenance, cleaning and periodical checks;
•
structural changes or modifi cations to the operating logic;
•
tampering with the guards or safety devices;
•
failure to use personal protection equipment by operators, specialised technicians and maintenance
personnel;
•
wrong machine installation;
•
placing in the machine any objects or things not compatible with refrigeration, freezing or preservation,
or that can damage the machine, cause injury or pollute the environment;
•
climbing on the machine;
•
non-compliance with the requirements for correct machine use;
•
other actions that give rise to risks not eliminable by the Manufacturer.
Maintenance intervals :
The inspection and maintenance intervals depend
on the actual machine operating conditions and
ambient conditions (presence of dust, damp, etc.),
therefore precise time intervals cannot be given. In
any case, careful and periodical machine mainte-
nance is advisable in order to minimise service
interruptions.
It is advisable to stipulate a preventive and scheduled
maintenance contract with the After-Sales Service
.
Maintenance frequency
To ensure constant machine effi ciency, it is advi-
sable to carry out the checks with the frequency
given in the following table :
Maintenance, inspections, checks and cleaning Frequency
Routine cleaning
general cleaning of machine and surrounding area daily
Mechanical protection devices
check their condition and for any deformation,
loosening or removed parts monthly
Control
check the mechanical part, for cracks or
deformation, tightening of screws: check the
readability and condition of words, stickers and
symbols and restore if necessary yearly
Machine structure
tightening of main bolts (screws, fi xing systems,
etc.) of machine yearly
Safety signs
check the readability and condition of safety signs yearly
Electrical control panel
check the electrical components installed inside
the electrical control panel. Check the wiring
between the electrical panel and machine parts. yearly
Electrical connection cable and plug
check the connection cable (replace if necessary)
and plug yearly
General machine overhaul
check all components, electrical equipment, yearly

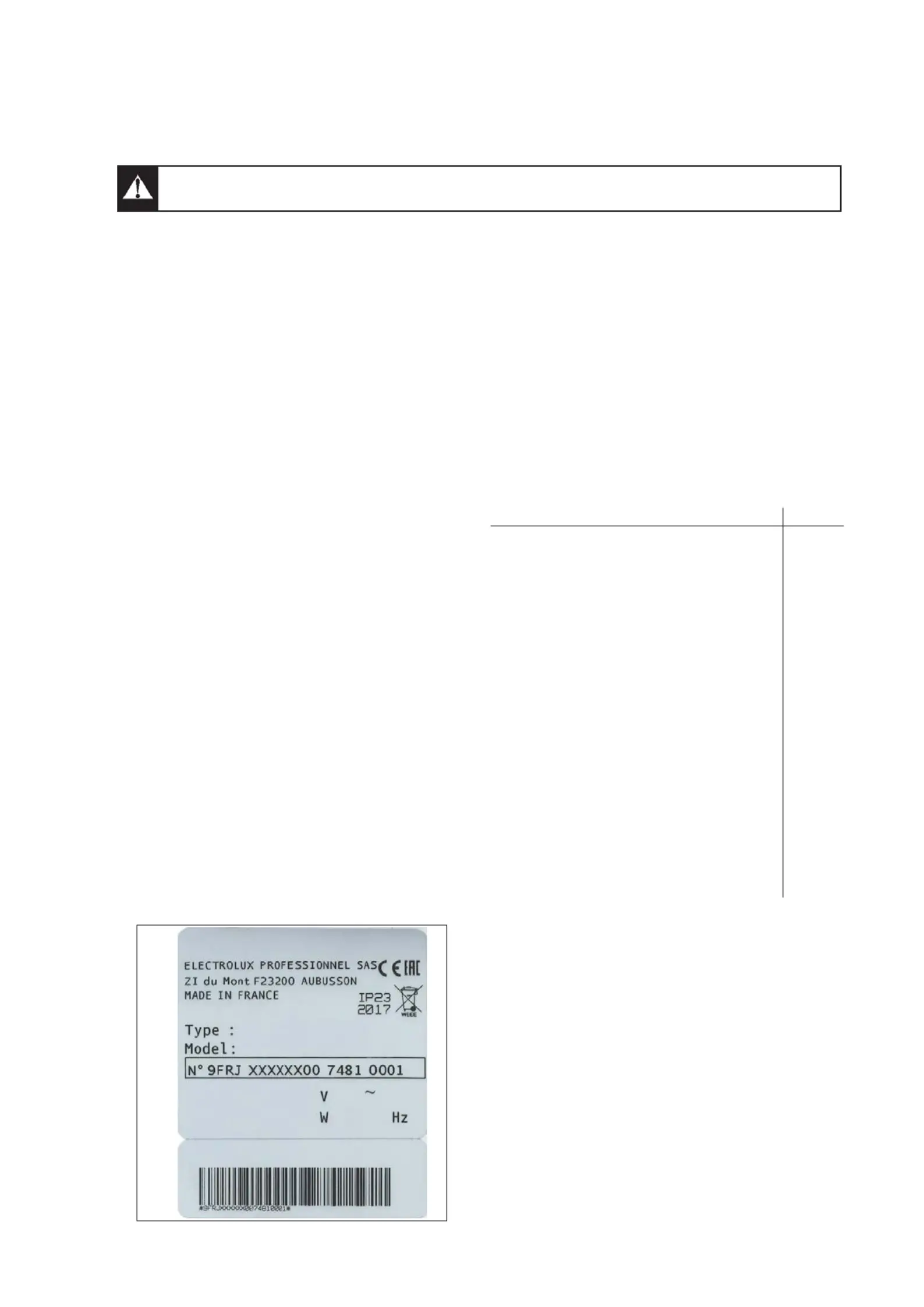

A reproduction of the marking or data plate on the machine is given below:
The meaning of the various information given on it
is listed below:
F..............factory description of product
Model......commercial description
PNC.........production number code
V...............voltage+phase
Hz............power supply frequency
Kw............max.power input
A..............current absorption
IP 23........dust and water protection rating
CE...........CE marking
When installing the appliance, make sure the elec-
trical connection is carried out in compliance with
that specifi ed on the dataplate.
3
TR2S GB 12 2017
ϱϬϲϬ
ɩ
ϯϴϬͲϰϰϬ
ϲϬϬͲϳϱϬ
ϯ
ś
Product specificaties
| Merk: | Dito Sama |
| Categorie: | Snijmachine |
| Model: | 600420 |
Heb je hulp nodig?
Als je hulp nodig hebt met Dito Sama 600420 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Snijmachine Dito Sama
12 Augustus 2025
12 Augustus 2025
12 Augustus 2025
12 Augustus 2025
12 Augustus 2025
12 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
Handleiding Snijmachine
- Ernesto
- Cigweld
- Blaupunkt
- Ices
- Hyundai
- Makita
- Dolmar
- Khind
- Kinzo
- Dremel
- Concept
- Fritel
- OK
- Exquisit
- Weston
Nieuwste handleidingen voor Snijmachine
12 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
11 Augustus 2025
