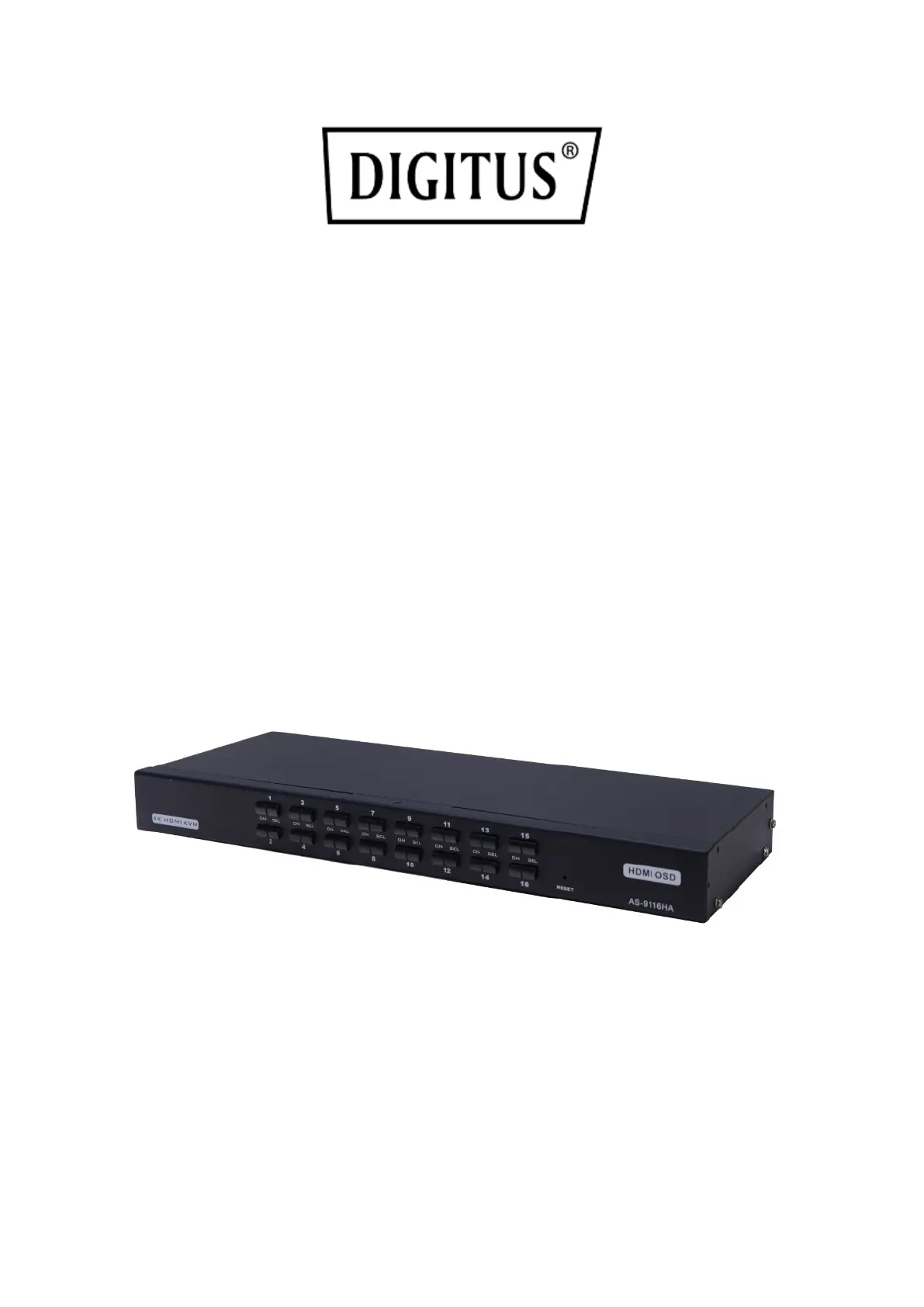

Pagina 1/16

8 / 16 Port HDMI KVM

Switch Series

Manual

DS-12910 / DS-12911

Table of C ontents

1. Overview ...................................................................................... 3

2. Packing list 3...................................................................................

3. Features ....................................................................................... 3

4. Hardware Requirement ................................................................ 4

5. Operation System ......................................................................... 4

6. Introduction ................................................................................. 5

7. Installation ................................................................................... 6

8. Operation ..................................................................................... 7

9. OSD Operation ............................................................................. 8

10. Troubleshooting ......................................................................... 14

11. Specification .............................................................................15

12. Safe Guide ................................................................................. 16

Product model list

Model Specification

DS- 12910 8 Port HDMI KVM Switch Series

DS- 12911 16 Port HDMI KVM Switch Series

• Please check to make sure that all the components are present and that

nothing was damaged through shipping. If you encounter a problem,

contact your dealer.

• Read this manual thoroughly and follow the installation and operation

procedure carefully to prevent any damage to the unit, and/or any of the

devices that connect to it.

1. Overview

8 ports/16 ports HDMI USB KVM (Keyboard, Video, Mouse) Switches are control

units that allow access and control of up to 8 (DS -12910) or 16 (DS-12911)

computers from a single USB/keyboard, USB/mouse, and monitor console.

There are two convenient methods to access any computer connected to the

installation: (1) using the push button port selection switches located on each

unit’s front panel; (2) selecting from menus provided by the On Screen Display -

(OSD).

Setup is fast and easy: simply plug cables into their appropriate ports. There is

no software to configure, and no incompatible problems. It works on multiple

operating platforms (PC compatible, Sun, etc.).

There is no better way to save time and money than with a DS- - 12910/DS 12911

Installation: Since a single console manages all of the computers, the DS-12910/

DS-12911 setup (1) eliminates the expense of having to purchase a separate

keyboard, monitor, and mouse for each computer; (2) saves all the space those

extra components would take up; (3) saves on energy costs; (4) eliminates the

inconvenience and wasted effort involved in constantly moving from one

computer to another.

2. Packing list

The complete 8 ports/16 ports HDMI USB KVM switch package consists of:

• 8 ports/16 ports HDMI KVM switch

• Power Adapter

• User Manual

• Rack fixed plate

• Screw package

• 8/ 16 HDMI KVM cables

3. Features

• One console controls 8 or 16 computers

• Be compatible with USB keyboard and mouse in console and USB keyboard

and mouse in computer

• Computer selection via front panel switches and OSD

Product specificaties

Merk:	Digitus
Categorie:	Schakelaar
Model:	DS-12910
Kleur van het product:	Zwart
Ingebouwd display:	Nee
Breedte:	155 mm
Diepte:	44 mm
Hoogte:	432 mm
Gewicht verpakking:	475 g
Breedte verpakking:	155 mm
Diepte verpakking:	204 mm
Hoogte verpakking:	475 mm
Materiaal behuizing:	Metaal
Stroombron:	DC
Maximum resolutie:	3840 x 2160 Pixels
Meegeleverde kabels:	HDMI, USB
Inclusief AC-adapter:	Ja
Land van herkomst:	China
Code UK-handelstarief:	84718000
Aantal HDMI-poorten:	8
Aansluiting voor netstroomadapter:	Ja
HD type:	4K Ultra HD
On Screen Display (OSD):	Ja
Ondersteunt Windows:	Ja
Ondersteunt Mac-besturingssysteem:	Ja
Rack-montage:	Ja
Ondersteunt Linux:	Ja
Andere ondersteundende systemen:	FreeBSD, Solaris 10, Solaris 11, Solaris 8, Solaris 9, UnixWare
Ondersteunde server operating systems:	Ja
Aantal poorten USB 2.0 Type-B:	8
Aansluiting video:	HDMI
Verpakkingsvolume:	15019.5 cm³
Aansluiting toetsenbord:	USB
Aansluiting muis:	USB
Aantal computers:	8
drukknop:	Ja
Console-poorten:	HDMI, USB A
Aantal USB 2.0-Type-A-hubpoorten:	2
Videobandbreedte:	30 Hz
Rekbevestigingspakket:	Ja
Aantal USB-poorten console:	2
DDC/DDC2 ondersteund:	Ja
