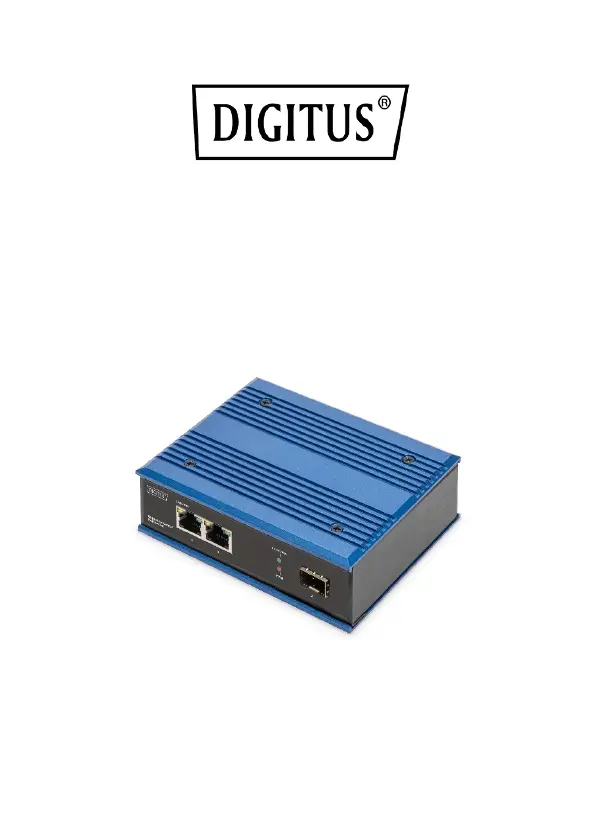

Pagina 1/12

Gigabit Industrial PoE

Switch 2 x RJ45, 1x SFP

Quick Installation Guide

DN-652120

Table of contents

1. Overview ................................................................................. 2

2. Main Features ......................................................................... 3

3. Package content ...................................................................... 3

4. Switch Panel ............................................................................ 4

5. Specification ............................................................................ 5

6. Interface Definition . 7 ................................................................

7. LED Indicator........................................................................... 8

8. 9 Installation caution..................................................................

1. Overview

Industrial PoE Ethernet switch with 2-Port 10/100/1000Mbps

RJ45(PoE) +1 Port 1000Mbps SFP, the Product meet CE, RoHS

standards. DN-652120 switch has the operating temperature

of -40 ℃~80℃, has the super firmness can adapt to all kinds

of harsh environment, can also be conveniently placed in the

compact space of the control box. The installation

characteristics of the guide rail, wide temperature operation,

IP40 protection class housing and LED indicator light make the

DN-652120 a plug and play industrial grade device, providing

a reliable and convenient solution for users to network their

Ethernet devices.

2. Main Features

• The use of high quality photoelectric integration module

to provide good optical and electrical characteristics

• Ensure reliable data transmission and long working life

• Support full duplex or half duplex mode, with automatic

negotiation capability

• Network port support automatic cross identification

• Internal storage and forwarding mechanism, support a

variety of protocols

• In line with industrial operating standards, the average

trouble-free work in more than 300,000 hours

• Working power supply: DC 48-57V to provide reverse

protection

• Lightning Surge Protection (Power): 5000A(8/20μs)

3. Package content

• Industrial Switch 2 x x RJ45 1 SFP

• QIG

Product specificaties

Merk:	Digitus
Categorie:	Schakelaar
Model:	DN-652120
Kleur van het product:	Black, Blue
Gewicht:	420 g
Breedte:	128 mm
Diepte:	86 mm
Hoogte:	34 mm
Gewicht verpakking:	529.167 g
Breedte verpakking:	165 mm
Diepte verpakking:	135 mm
Hoogte verpakking:	54 mm
Gebruikershandleiding:	Ja
Stroombron:	Power over Ethernet (PoE)
LED-indicatoren:	Ja
Connectiviteitstechnologie:	Bedraad
Land van herkomst:	China
DC voltage input:	48 - 57 V
Netwerkstandaard:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Temperatuur bij opslag:	-40 - 80 °C
Rack-montage:	Nee
Power over Ethernet (PoE):	Ja
Stapelbaar:	Nee
Switchingcapaciteit:	14 Gbit/s
MAC-adrestabel:	2000 entries
10G support:	Nee
Aantal basis-switching RJ-45 Ethernet-poorten:	2
Aantal Gigabit Ethernet (koper)-poorten:	2
Type basis-switching RJ-45 Ethernet-poorten:	Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF:	1
Packet buffergeheugen:	1.2 MB
Full duplex:	Ja
Auto-negotiation:	Ja
Bedrijfstemperatuur (T-T):	-40 - 80 °C
Verpakkingsvolume:	1202.85 cm³
Verzending snelheid:	10.5 Mpps
DIN rail bevestiging:	Ja
Half-duplex:	Ja
