The Model 5M64 is a single-channel DIN Mount instrument which is an easily configured,

rugged, analog based signal conditioner made to operate with traditional DC sensor sources,

such as string potentiometers, DC LVDTs and other sensors to measure force, pressure, torque,

displacement and related measurements. The Model 5M64 has an extremely wide DC

signal input range with user selectable gain, zero and anaolg output making it adaptable

to any sensor application that requires stable, repeatable and noise free analog signals

for control or data acquisition requirements.

1GENERALDESCRIPTIONANDSPECIFICATIONS

Model 5M64 DC Voltage Module

Access switch settings via the front

panel of the 5M64 by gently pulling the

clear plastic cover (from the top

side) so the cover rotates open from

DIN DC Voltage & mA Conditioner

MODEL5M64

DC Voltage & mA

C

ONDITIONERModule

5M64

1.A.1.5M64

GENERALDESCRIPTIONANDSPECIFICATIONS5M64.1

or without power to the unit. Once

completed, return the cover to the

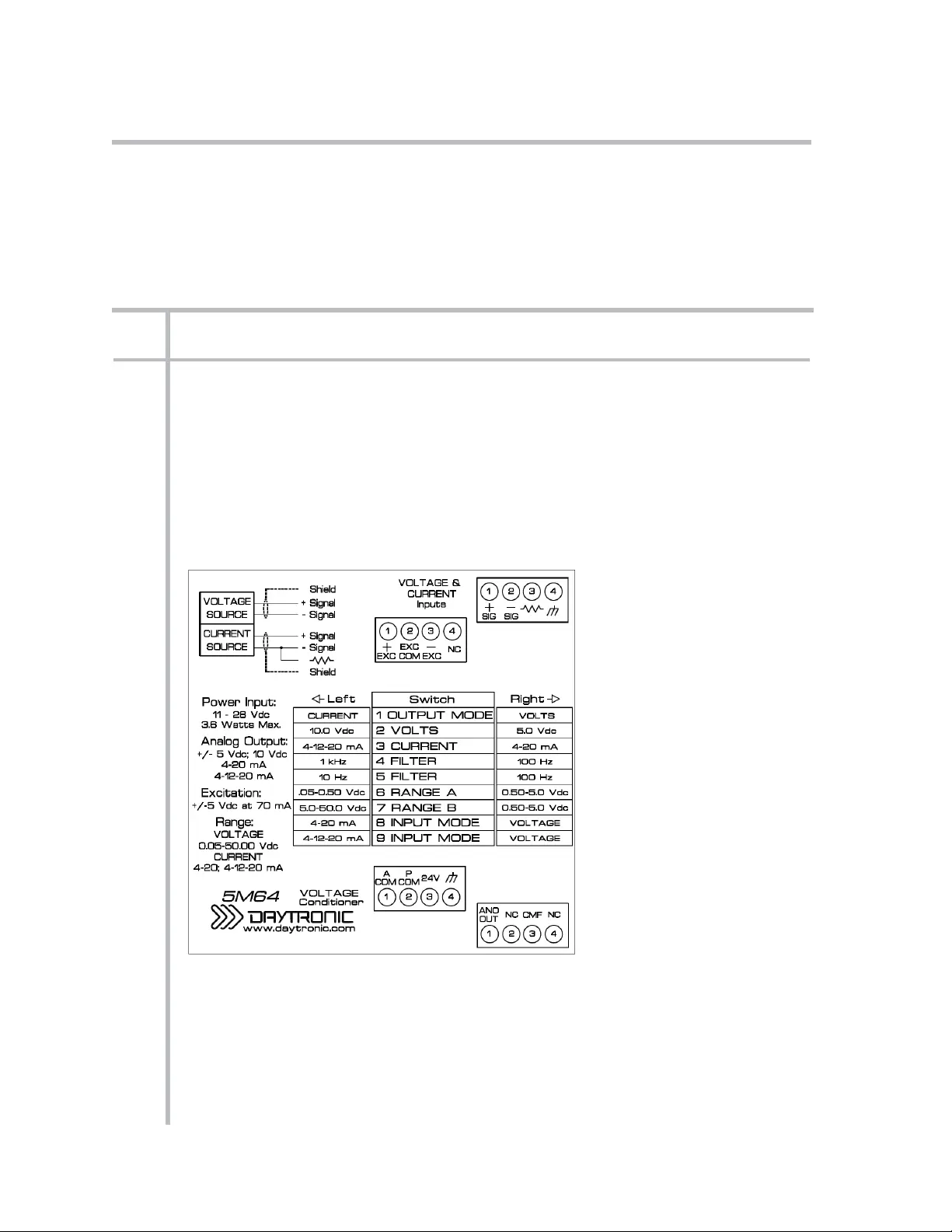

View of Side Label of the Model 5M64 DC Voltage Module

the bottom. Use a small tool or finger to

place the switches to the left or right

position as you face the front of the

module. This process can be done with

original position.

4-20ma Input Operation

The Model 5M64 contains a precision input

shunt resistor for mA input as indicated

by the resistor symbol on input pin 3.
