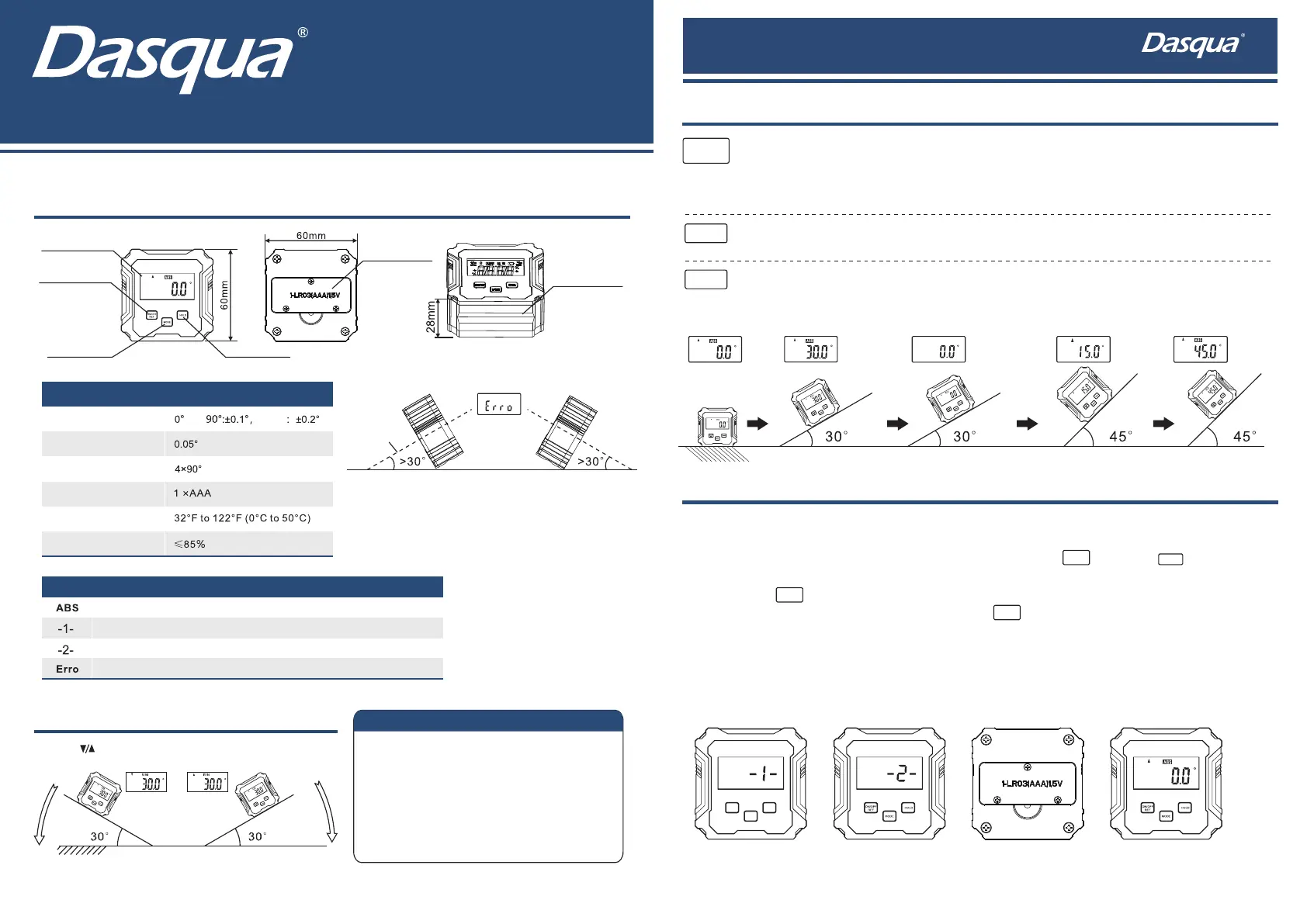

DIGITAL LEVEL BOX

GB

PRODUCT INSTRUCTIONS

PRODUCT INSTRUCTIONS

Please read the product instruction carefully and use the product correctly under the instruction.

Symbol showing how to adjust the surface to be

leveled.

1. Make sure the digital angle locator is turned

off.

2. Remove the battery compartment cover.

3. Install the new battery following the polarity

indication.

4. Replace the battery cover

Note: Always remove the battery before storing

the instrument.

Horizontal Plane

Horizontal Plane

ABS Mode ABS Mode ABS Mode Relative Measuring Mode Relative Measuring Mode

LCD Display

ON/OFF Button

MODE Button

Accuracy

Resolution

Working Range

Power Supply

alkaline battery

others

vertical axis

and

Working temperature

Working Humidity

Indicates that the level is working in absolute angle mode.

Indicates that the digital level is calibrating for one direction.

Indicates that the digital level is calibrating for another direction.

Warning of the vertical axis deviation.

HOLD Button

Battery Cover

Magnetic (Hide)

*The digital level has been pre-calibrated at the factory, The product should only be recalibrated.

if it has been dropped

(1) Place the digital level on a flat and smooth surface, press button and button at the same

time, the calibration mode is activated and "-1-" will be displayed.

(2) Press button again, "-1-" will flash briefly. Do not move until "-2-" display.

(3) Rotate it 180° in the same location and press button , "-2-" will flash briefly. Do not move until the

unit has completed the calibration.

(4) Calibration is done. The angle be displayed on the unit is the angle between the cali brated plane and

the horizontal plane.

* display the angle between the calibration plane and water level.

Calibration(Figs as below)

Product Figure and Buttons

1. With the unit off, press the ON/OFF button to turn the unit on.

2. With the unit on, press the ON/OFF button to switch ABS/REF mode.(When enter the REF

mode,setting the display to zero at the same time).

3. With the unit on, hold the ON/OFF button to turn off the unit.

Press the HOLD button to enter/exit HOLD mode. (In HOLD mode, the “H” symbol on the LCD

will display).

Press MODE button to swtich unit degree (°),(%),mm/m,IN/FT.(% is accurate to 0.1%, mm/m

is accurate to 1mm/m, IN/FT is accurate to 1/8. The slope value is calculated by angle

degree value).

Button function

Icon function

Technical Specifications

LCD SCREEN ICONS

Battery Installation

HOLD

ON/OFF

REF

MODE

HOLD

ON/OFF

REF

MODE

HOLD

ON/OFF

REF

ON/OFF

REF

ON/OFF

REF
