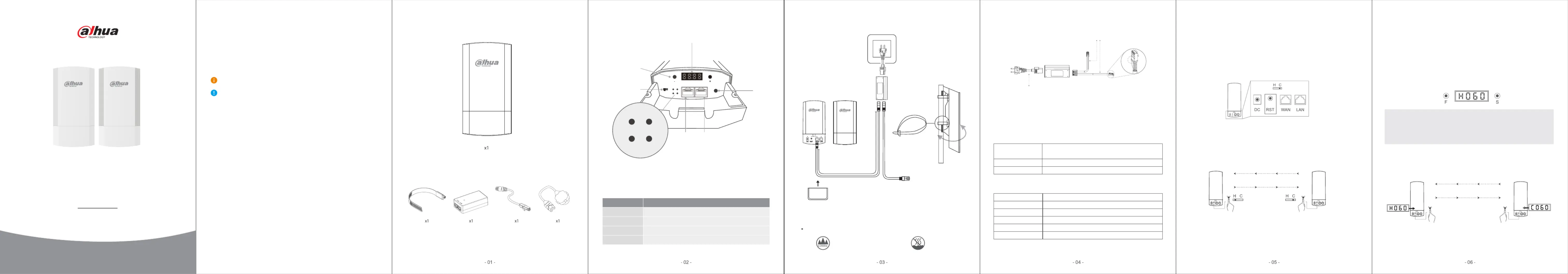

Overview

Slide switch

H---

Access point CPE

CClient CPE---

Button to

adjust numbers

LED Channel Display

Reset

WAN LAN

24V PoE IN

Mounting

admin

admin

Default IP

Access point:192.168.1.35/24

Client:192.168.1.36/24

Username

Password

Quick Setup

* The bridging methods include slide switch bridging and digital display bridging.

Slide switch bridging

1. Configure the Access point-Client CPE

Select a bridge, turn the slide switch to position H, set it as the Access point.

Select another bridge, turn the slide switch to position C, set it as the Client.

2. Bridge connections

Press the Reset key on the Access point for 1 second, and press the Reset key on

Client for 1 second within one minute. The bridges will establish a connection.

Connect in one minute

Press reset key at both ends for 1 second

Access pointClient

Digital Display Bridging

RWRLAN

WIFIWAN

1. Configure Access point CPE

Select a bridge, press the F key to make "H" or "C" flash,

and then press the S key to change it to "H". after 5 seconds, the bridge will

automatically save to the Access point bridge mode and restart.

2. Configure Client CPE

Select another bridge, press the F key to make "H" or "C"

flash, and then press the S key to change it to “C". after 5 seconds, the bridge will

automatically save to the Client bridge mode and restart.

Connect in one minute

Press reset key at both ends for 1 second

Access pointClient

Note:

1. When the bridge is restored to the factory settings, it defaults to the Access point

mode and the default IP address is 192.168.1.35

2. Key F is the selection key, which can select Access point-Client mode, channel, IP

and RSSI.

3. Key S is the setting key, which can set Access point-Client mode, channel and IP.

3. Bridge connections

Press the Reset key on the

Access point for 1 second, and then press the Reset key

on Client for 1 second within one minute. The bridges will establish a connection.

Off -- Power off; Solid green -- Working

Off -- No Connection; Solid green -- Connection activated

Off -- No Connection; Solid green -- Connection activated

Off -- Pairing failed; Solid green -- Paired successfully

Packing List

Quick Installation Guide

DH-WBD2-60N-01L

& DH-WBC5-30AC-01C

About this guide

The purpose of this guide is to provide you with a quick way to operate

this equipment

Additional information may be useful, but is not required

Be sure to read the important information carefully

Purpose

Definition

PoE Connection

cat5e

Power cord standard

depends on Region

RJ45 adopts 568B standard

Orange white，Orange，Green white，Blue，

blue white, Green, Brown white, Brown

Default configuration

Specifications

DH-WBD2-60N-01L&DH-WBC5-30AC-01C

2.412GHz-2.484GHz/5.150GHz-5.850GHz

<21dBm（country dependent）

8dBi/12dBi

24V Passive PoE

<5W/8W

Model name

Frequency

Tx Power

Antenna Gain

Power supply

Power consumption

ActionStatus Indication

Only suitable for safe use in areas with

an altitude of 2000 meters and below

Only for safe use in

non-tropical climates

After connection,

push up to restore

CPE back cover

Connect PoE power supply

and CPE with network cable.

PoE port is used at PoE power

supply end, and WAN port is

connected at network bridge end.

Install CPE at the selected

position with the front face

facing the selected direction.

According to the network topology,

connect the LAN port of PoE power

supply to PC, router or switch.

Operating environment requirements:

WIFI

LAN

WAN

SYS

PoELAN
