Pagina 1/12
i
Contents
1 Preparing for installation ······························································· 1-1
Safety recommendations ············································································································ 1-1
Site preparation ························································································································ 1-1
Installation accessories ·············································································································· 1-1
Installation tools ························································································································ 1-2
Device and mounting bracket dimensions ······················································································ 1-2
2 Installing the AP ········································································· 2-1
Installation owchart ·················································································································· 2-1
Pre-installation tasks ·················································································································· 2-1
Determining the installation position ······························································································ 2-1
Mounting the AP ······················································································································· 2-2
Mounting the AP on a wall 2-2····································································································
Mounti ng the AP on a ceiling ································································································ 2-4
Connecting the AP to a power source ··························································································· 2-5
Connecting a PoE power source ··························································································· 2-5
Connecting a local power source ··························································································· 2-6
Check after power- on·········································································································· 2-6
Connecting the AP to the network ································································································ 2-6
3 Appendix A Hardware information and specications 3-1·······················
Ports 3-1·······································································································································
Technical specications 3-1·············································································································
LEDs ······································································································································ 3-2
1-1
1 Preparing for installation
Safety recommendations
WARNING!
Only qualied personnel can install and remove the AP its accessories. You must read all and
safety instructions carefully before working with the AP.
To avoid possible bodily injury and equipment damage, read the following safety recommendations
before installing the AP. Note that the recommendations do not cover every possible hazardous
condition.
Take adequate safety measures to avoid ily injury and device damage.bod
Place the AP in a dry and flat location and take slip measures.anti-
Keep the AP clean and dust free.-
Do not place the AP in a moist area and avoid liquid intrusion.
Keep the AP and installation tools away from walkways.
Site preparation
Before installing the AP, examine the installation site and ensure that the AP will operate in a
favorable environment. Make sure the temperate and humidity at the installation site meets the
requirements in Table1 1-.
Table1-1 Temperature and humidity requirements
Item
Specication
Operating temperature
–10°C to + °C (14°F to 1 °F) 55 31
Storage temperature
–40°C to + °C ( 40°F to +158°F) 70 –
Operating humidity
5 to 95% , noncondensing % RH RH
Installation accessories
Figure1-1 Accessories provided with the AP
1-2
Installation tools
When installing the AP, you might need the following tools. Prepare the installation tools yourself as
required.

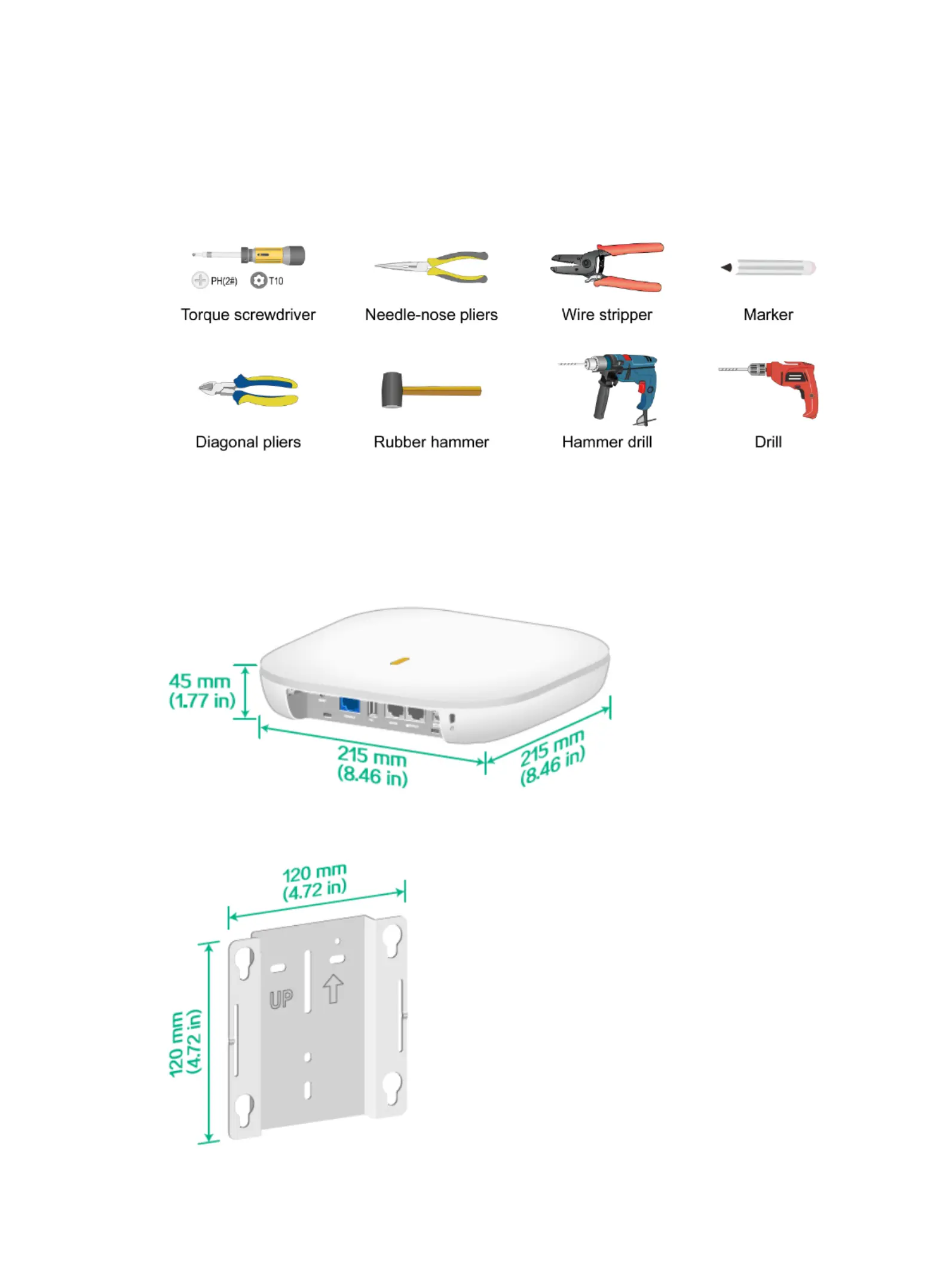

Figure1-2 Installation tools
Device mounting bracket dimensions and
Figure1-3 AP dimensions
Figure1-4 Mounting bracket dimensions
