Universal Security Enclosure Wall Mount

w/ Keyboard Tray

PAD-PARAKBTB / PAD-PARAKBTW

INSTRUCTION - MANUAL

CONTENTS:

INSTALLATION:

D

C

B

A

1A. Align the keyboard tray (A) with the enclosure (A). While holding the hex nuts (D)

in the front, screw the bolts (C) through the back until securely tightened.

3A. Connect your cable wire to your

tablet device and route it trough the

back cavities of the enclosure (A)

and the keyboard tray (B).

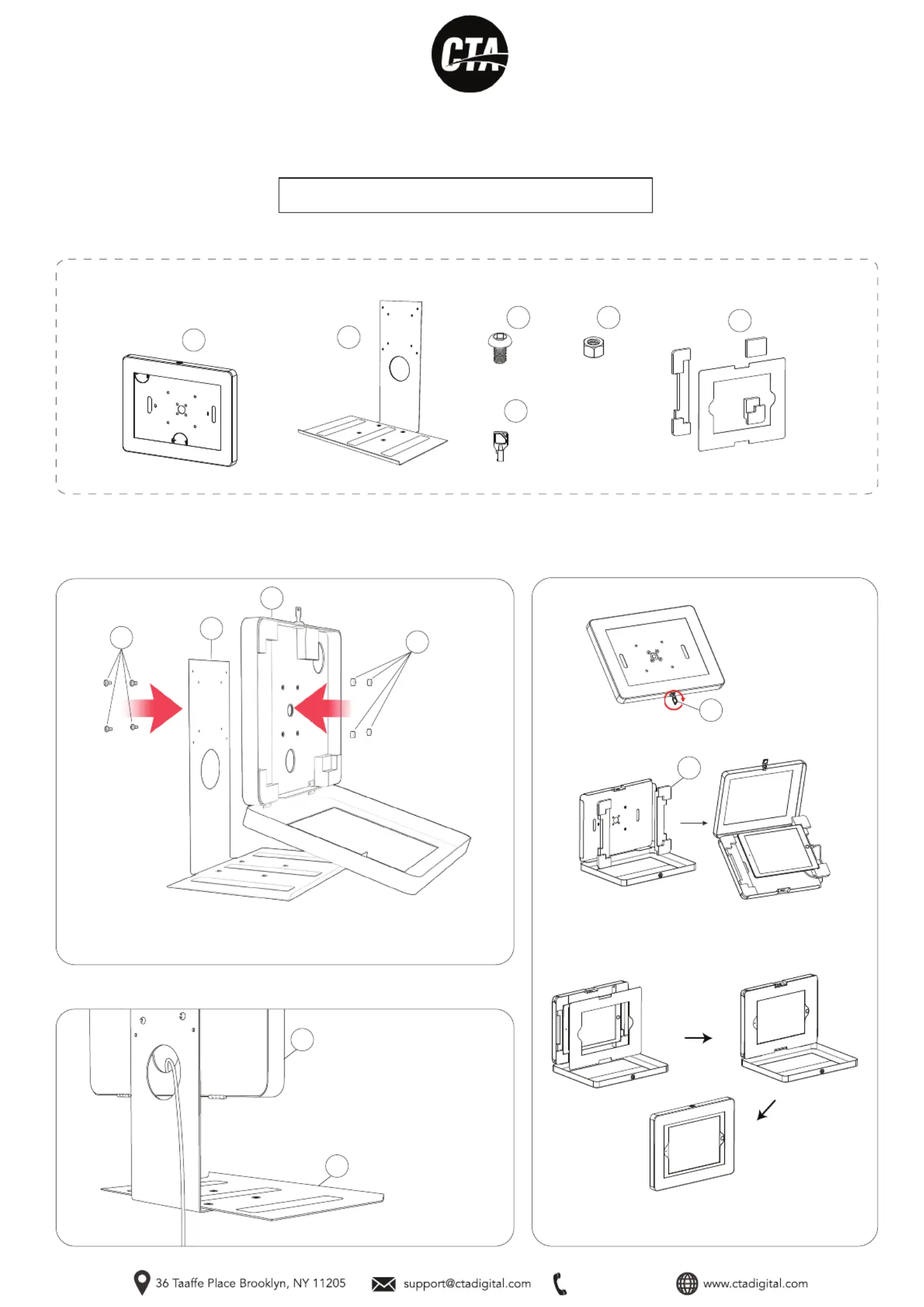

1. Connecting Keyboard Tray to VESA Enclosure

3. Cable Management

888-733-4448

2. Setting up Device & Enclosure

2A. Lock or unlock your tablet enclosure with security key (E) as

shown

2B. Find the appropriate size foam padding (F) for the tablet you wish

to use. Make sure device is compatible for the enclosure. Lay in

device and connect any cables/cords as needed.

2C. If needed, lay-in correct included masking insert. Close and

lock enclosure afterwards and you’re set

**Tablet shown for

illustration and

NOT INCLUDED.

**Tablet shown for

illustration and

NOT INCLUDED.

x1

B

F

x1

Foam Adapter & Sheet Bundle

A

x1

E

x2

x4

D

M5 x 12

x4

C

**Cable shown for

illustration and

NOT INCLUDED.

E

F

A

B
