Medical Floor Stand

with VESA Plate and Paragon Enclosure

PAD-MFS / PAD-MFSPL / PAD-MFSPS

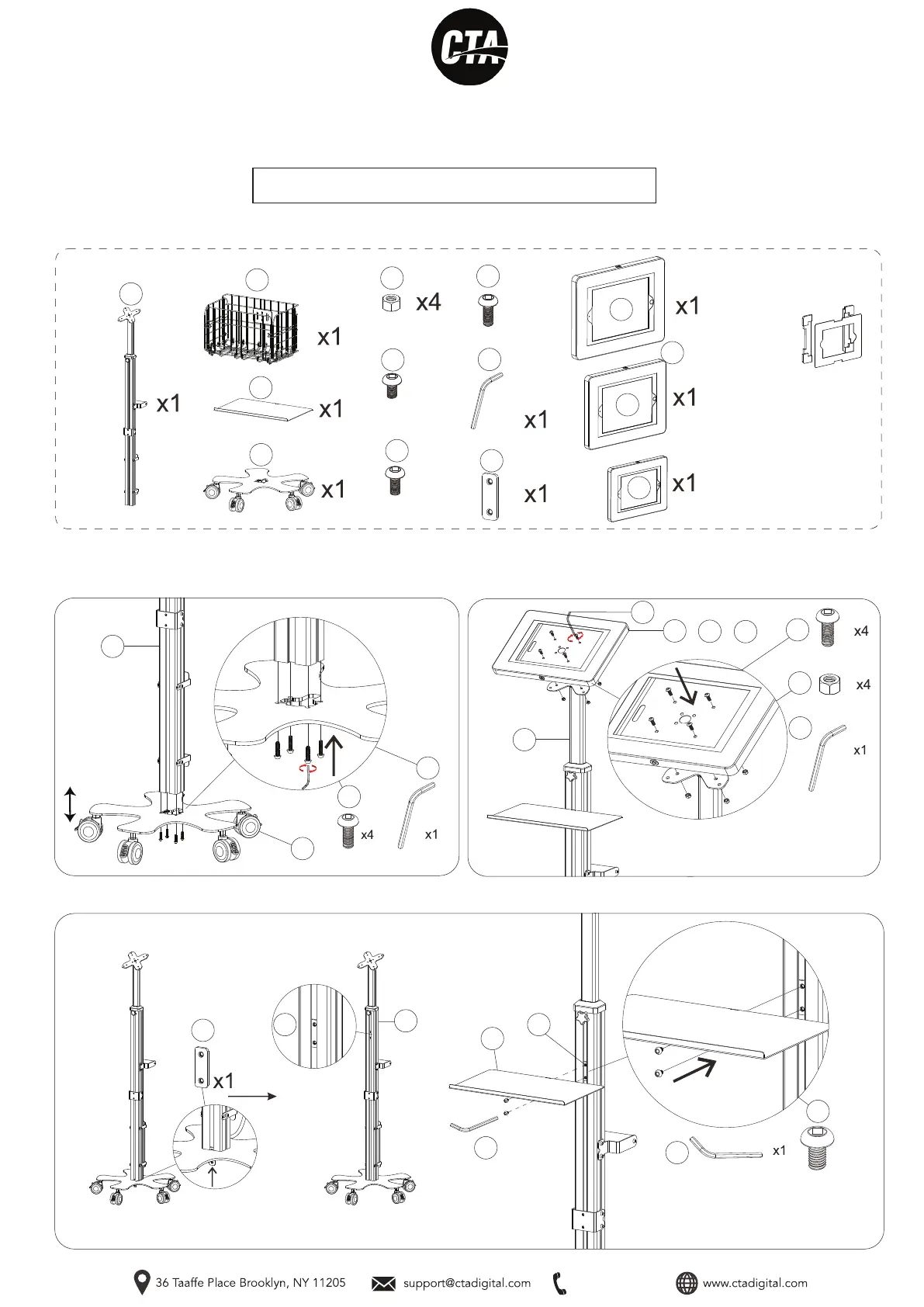

INSTRUCTION - MANUAL

CONTENTS:

INSTALLATION:

718-963-9845

1A. Align base (A) to body as shown. From below, rotate in screw (H) using

provided tool (I) until securely tightened.

1. Setting up Base to Body

2. Attaching Enclosure to VESA

2A. Align enclosure (K or L or M) holes to VESA plate holes. Screw in (G) above

using provide tool while holding hex nut (E) tool from behind with fingers.

3. Setting up Tray

3A. Using the small mount component (J), insert from the base (as shown

above). Using your fingers, slide until preferred height.

x2

3B. Align tray (C) to mount component (J),then

rotate in screw (F) in from front as shown using

provided allen key (I) until securely tightened.

**Lift or push down

lever to lock or

unlock wheels

(PAD-MFS) Enlcosure

only for PAD-MFS Kit

(PAD-MFSPL) Enlcosure

only for PAD-MFSPL Kit

(PAD-MFSPS) Enlcosure

only for PAD-MFSPS Kit

A

B

C

D

E

F

G

H

I

J

K

L

M5 x 14

M5 x 12

M5 x 8

M

M5 Allen Key

x4

x4

x4

A

D

M5 x 14

H

M5 Allen Key

I

M5 x 12

G

E

A

K

L

M

or

or

I

I

J

J

A

M5 x 8

F

C

M5 Allen Key

I

I

M5 Allen Key

M5 Nut

M5 Nut

J

N

Foam Adapter &

Sheet Bundle
