Smaller

Allen Key

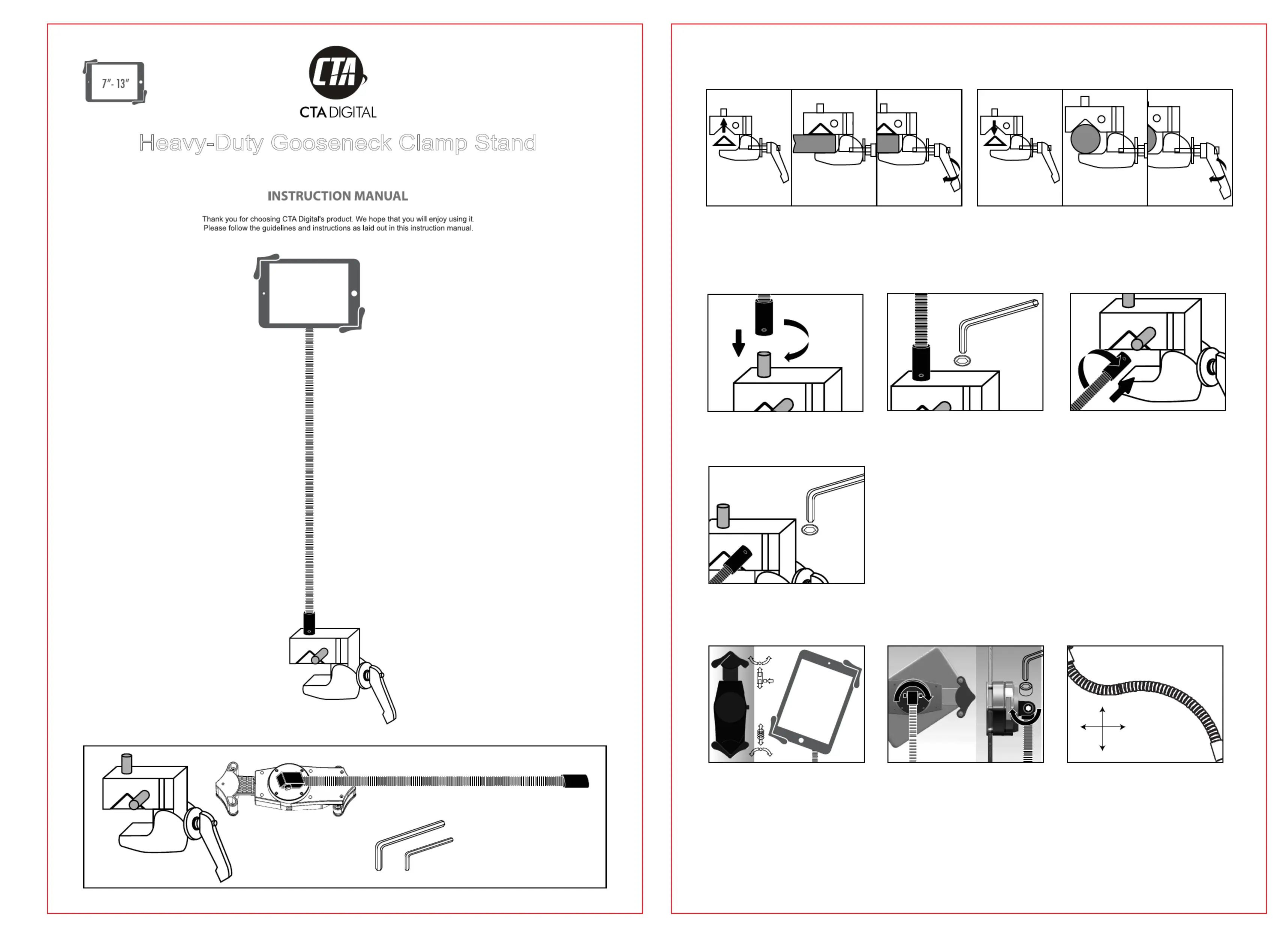

Instructions:

1. Installing the Clamp

1. Place rubber grip flat insert into the clamp groove. Rotate

tightening handle counter-clockwise to widen around

surface ledge. Rotate clockwise to tighten until secure.

On a Flat Surface:

2. Remove rubber grip flat insert from clamp groove. Rotate

tightening handle counter-clockwise to widen around surface

ledge. Rotate clockwise to tighten until secure.

On a Tube:

2. Connecting the Tablet Gooseneck Holder

1. Screw gooseneck onto the male metal

connection bolt on top of the clamp.

Note

: if meter screws are already in,

unscrew before attaching gooseneck.

2. Use the smaller Allen key to screw up

two meter screwes insde the gooseneck,

tightening the connection.

Heavy-Duty Gooseneck Clamp Stand

for 7-13 Inch Tablets

PAD-HGT

SUPPORT@CTADIGITAL.COM

3. To use clamp aligned vertically,

screw gooseneck onto the male metal

connection bolt on the side of the clamp.

Smaller

Allen Key

4. Use the smaller Allen key to screw the

two meter screws insde the gooseneck,

tightening the connection.

1. Press the button on the side of the

holder center to slide out holder arm.

Insert your tablet against the spring

end, then slide the other arm back in,

closing firmly.

2. Use the bigger Allen key to tighten

and loosen the gooseneck to holder

connection, adjusting ease of rotation.

3. Installing Your Device and Adjusting the Gooseneck and Tablet Holder:

Bigger

Allen Key

Multi

direction

flexing

3. Flex the gooseneck to multi

direction and adjust it freely according

to your needs.
