RADIO REPLACEMENT

SWC RETENTION

+

R

INTERFACING SOLUTIONS

SWRHN-62HV

Radio Replacement w/ SWC & Multi-Angle Rear View Camera Retention

for Select 2016 & Up Honda HRV Vehicles

** NOTE: Please Reference page 2 to connect the appropriate Ignition wire.

PRODUCT FEATURES:

-Retains factory features in select Honda vehicles while functioning with an aftermarket radio.

-Pre-programmed to retain factory Steering Wheel Controls.

-Retains factory multi-angle rear view camera.

-Retains factory Auxilairy input.

-Includes antenna adapter & USB retentian cable.

-EIA color coded wiring for easy installation.

NOTES:

2. Does not retain Rear Seat Entertainment system (RSE).

PARTS INCLUDED:

SWRHN-62HV MODULE SWRHN-62HV HARNESS ANTENNA ADAPTER SWC CABLE USB CABLE

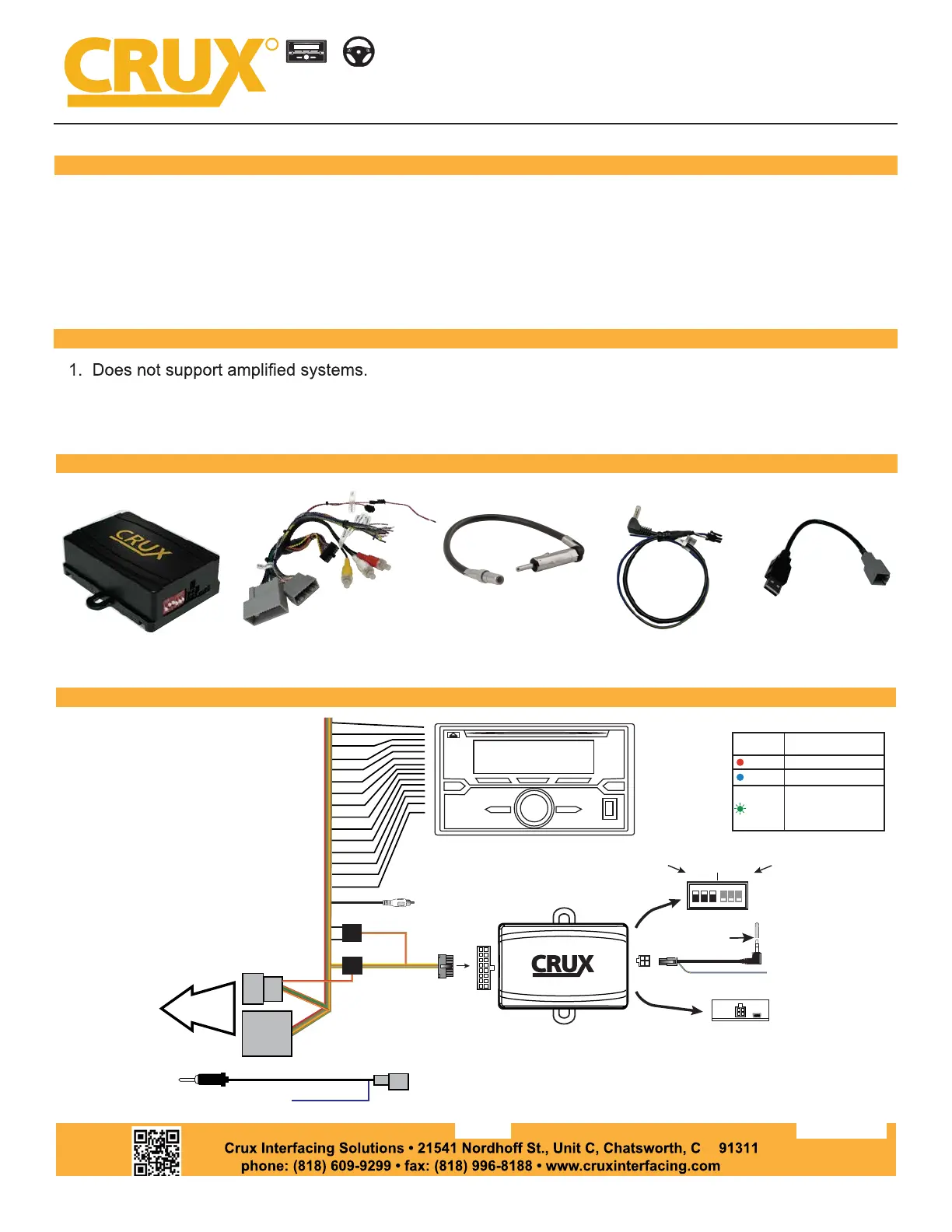

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

4-Pin

Connector

Cap or insulate if

not being used

Kenwood/JVC (BLUE / YELLOW)

Insulate with tape

if not used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See below for DIP switch settings.

AFTERMARKET

RADIO SELECTOR

(See Page 3)

HONDA

SWC SWITCHES

(NOT USED)

RADIO VEHICLE

1 2 3 4 5 6

INTERFACING SOLUTIONS

24 PIN LATCH CONNECTOR

24 PIN CONNECTOR

to Reverse Camera

Input

12V Constant Yellow

Red

Black

Right Front (+) Gray

Right Front (-) Gray/Black

Le Front (+)White

Le Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Green

Green/Black

Reverse Gear Purple/ White

Orange

Parking Brake Brown/White

Vehicle Speed Sense Pink

Yellow RCA

Camera Bit 0 Light Blue/Black

Camera Bit 1 White/Red

16 -Pin Black

Connector

TROUBLESHOOTING

LED

LIGHT

LED MODULE FEEDBACK

Solid Red

Solid Blue

Flashing

Green

Shows that the steering

wheel control (SWC)

signal is being detected -

module is functioning well.

Module providing 12V ACC

CAN recognized

+12V ACC**

Ground

Le Rear (+)

Le Rear (-)

Illuminaon

OEM Camera Retenon

TO FACTORY

HARNESS

BLUE / Power Antenna

1 of 5

rev.122925
