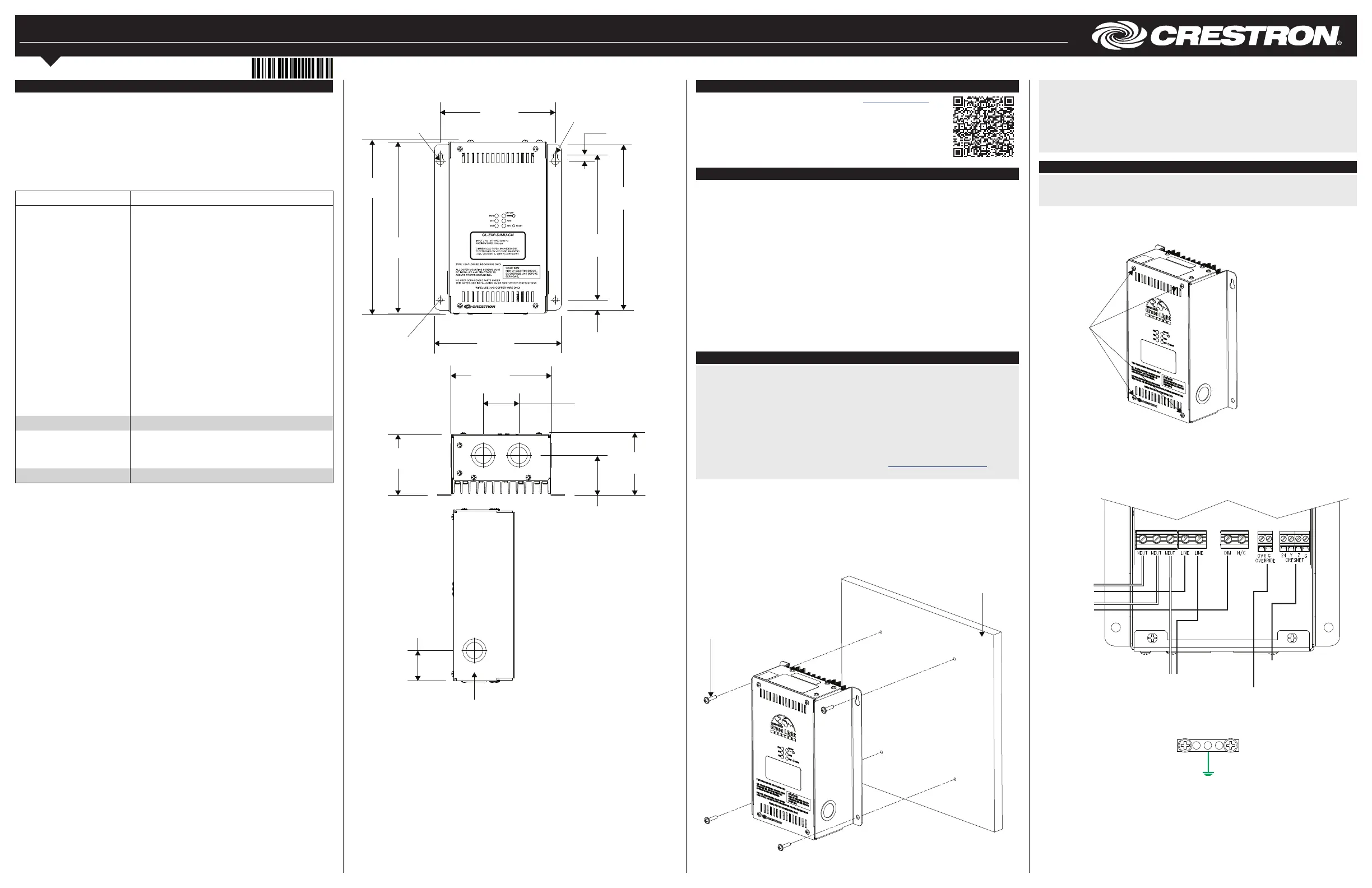

GL-EXP-DIM-CN/GL-EXP-DIMFDB-CN/GL-EXP-DIMFLV-CN/GL-EXP-DIMU-CN/GL-EXP-SW-CN
Crestron Green Light
®
Expansion Module with Cresnet
®
Communication
Installation Guide
Description
The GL-EXP-DIM-CN, GL-EXP-DIMFDB-CN, GL-EXP-DIMFLV-CN, GL-EXP-DIMU-CN,
and GL-EXP-SW-CN are single-channel Crestron Green Light expansion modules that are
controlled with Cresnet communication. They provide control for a variety of lighting loads.
A single module supports 100 to 277 volt loads up to 16 amps.
The Crestron
®
GL-EXP-DIM-CN, GL-EXP-DIMFDB-CN, GL-EXP-DIMFLV-CN,
GL-EXP-DIMU-CN, and GL-EXP-SW-CN share common features and functions and will be
referred to as “GL-EXP-*-CN” except where noted.
The specications for the GL-EXP-*-CN are listed below.
Specications
SPECIFICATION DETAILS
Load Ratings
Channels
Load Rating
Dimmed Load Types
Switched Load Types
1
16 A
GL-EXP-DIM-CN:
LED, incandescent, neon/cold cathode, magnetic
low-voltage, 2-wire dimmable uorescent
GL-EXP-DIMU-CN:
Incandescent, LED, electronic low-voltage, magnetic
low-voltage, neon/cold cathode, 2-wire uorescent
GL-EXP-DIMFDB-CN:
3-wire electronic uorescent dimming ballasts
GL-EXP-DIMFLV-CN:
LED, incandescent, uorescent, magnetic low-voltage,
electronic low-voltage, neon/cold cathode,
high-intensity discharge (HID), motor
GL-EXP-SW-CN:
LED, incandescent, uorescent, magnetic low-voltage,
electronic low-voltage, neon/cold cathode,
high-intensity discharge (HID), motor
Input Voltage 100 to 277 Vac, 50/60 Hz
Environmental
Temperature
Humidity
32° to 104 °F (0° to 40 °C)
10% to 90% RH (noncondensing)
Weight 3.4 lb (1.6 kg)
The dimensions for the GL-EXP-*-CN are shown in the following illustrations.
GL-EXP-*-CN Dimensions
5 13/16 in
(147 mm)
5/16 in
(9 mm)
8 5/16 in
(211 mm)
7 5/16 in
(186 mm)
8 5/8 in
(219 mm)
8 3/4 in
(223 mm)
1/2 in
(13 mm)
6 3/8 in
(163 mm)
(2x) Ø3/16 in
(5 mm)
(2x)
Ø3/18 in
(10 mm)
(2x) Ø1/4 in
(7 mm)
5 1/16 in
(129 mm)
3 13/16 in
(81 mm)
2 in
(52 mm)
Typ
1 13/16 in
(46 mm)
3 1/16 in
(78 mm)
(1-1/2 in
(39 mm)
Double ring knockout for 1/2 in and 3/4 in
conduit Ø.875 and Ø1.125 in after knockout
removal (typ).
Additional Resources
Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• Do not use outdoors.
• Do not mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not be
subjected to tampering by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause
an unsafe condition.
• Do not use this equipment for other than its intended use.
• All servicing should be performed by qualied service personnel.
• If any Emergency Circuits are fed or controlled from this panel, it must be located
electrically where fed from a UPS, generator, or other guaranteed source of power
during emergency and power outage situations.
SAVE THESE INSTRUCTIONS.
Installation
WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker(s) or
fuse and test that power is off before wiring!
NOTE: Observe the following points:
• This product must be installed and used in accordance with the appropriate
electrical codes and regulations.
• This product must be installed by a licensed electrician.
• Use 75°C copper wire or better.
NOTE: Before using the GL-EXP-*-CN, ensure the device is using the latest rmware.
Check for the latest rmware for the GL-EXP-*-CN at www.crestron.com/rmware. Load
the rmware onto the device using Crestron Toolbox™ software.
Preparing and Connecting Cresnet, 0-10V, and Override Ports
Strip the ends of the wires approximately 7/16 in (11 mm). Use care to avoid nicking the
conductors. Tighten the connector to 5 in-lb (0.5 to 0.6 N-m). The wire gauge should be
14 to 26 AWG.
Installation
Mount the GL-EXP-*-CN to any vertical surface using four screws. The screws must be
appropriate for the mounting surface.
Installing the GL-EXP-*-CN Module
Mounting surface
(Qty. 4) Mounting
screws, #8 (not
included)
NOTE: To prevent potential heat damage to the drywall, do not mount the
GL-EXP-*-CN directly onto drywall. Mount the GL-EXP-*-CN to a piece of plywood that
is at least 1/2 in (13 mm) thick, and then mount the GL-EXP-*-CN and plywood to the
drywall.
NOTE: To ensure proper ventilation, the device must be installed vertically on a vertical
surface. Install the device with 6 in (153 mm) of clearance from the top and bottom of
the device.
Wiring Diagrams
WARNING: RISK OF SERIOUS PERSONAL INJURY. Turn off power at the circuit
breaker(s) prior to installation. Installing with power on can result in serious personal
injury and damage to the device.
Wire the GL-EXP-*-CN.
1. Use a #2 Phillips screwdriver to remove the cover screws and then remove the cover.
Remove Cover Screws
Cover
screws
2. Wire the device as shown below. An additional LINE, NEUT, and GND connection is
supplied for power to pass through. Keep the following in mind while wiring:
• Wires should be 10 to 24 AWG.
• Wires should be stripped to 5/16 in (8 mm).
• Tighten the terminal screws to 4.5 in-lbs (0.5 Nm).

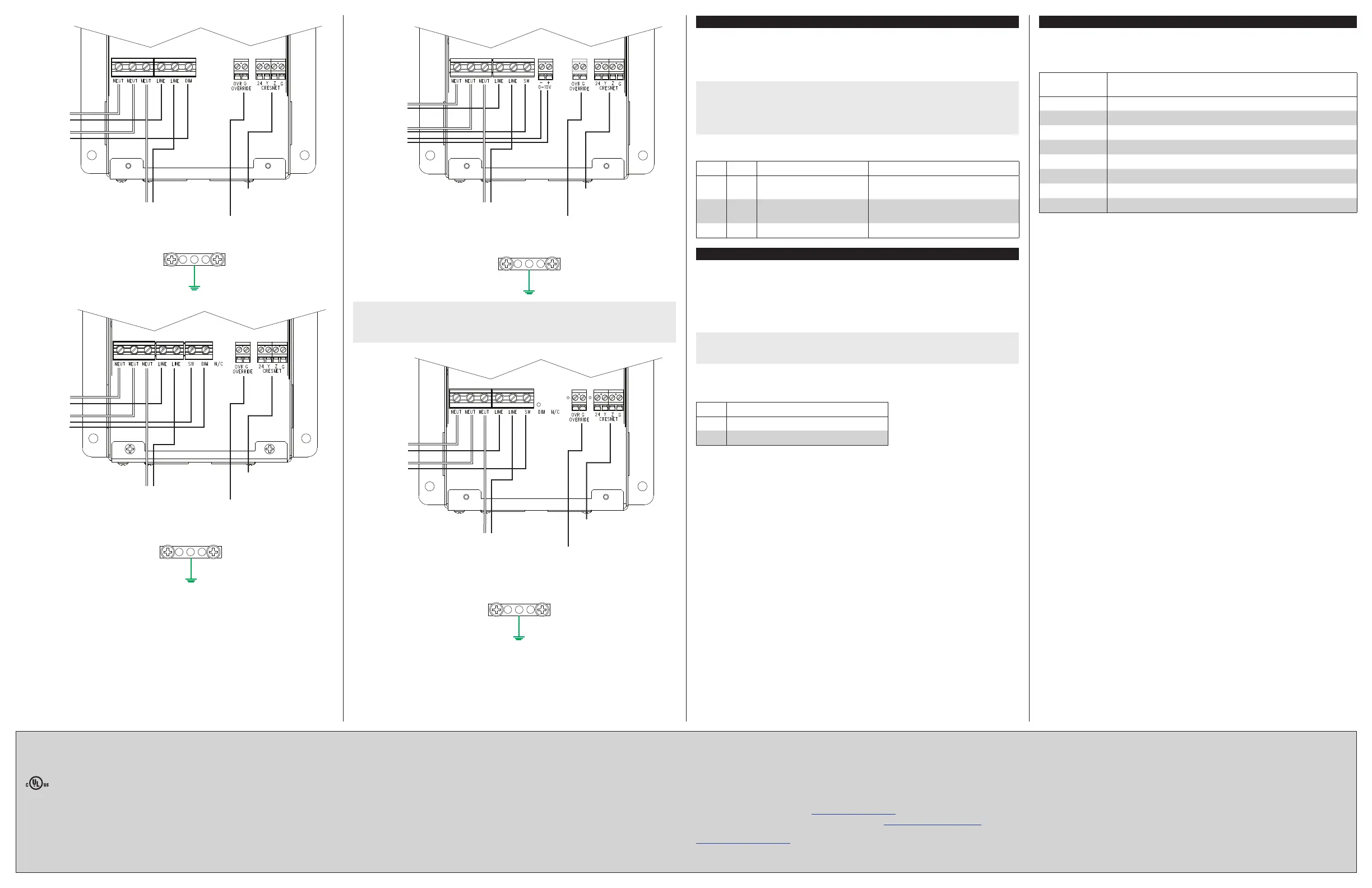

Wire the GL-EXP-DIM-CN
Pass-through to
additional
module
From circuit
breaker
To dimmed
load
From
Override
switch
From
Cresnet
Wire the GL-EXP-DIMU-CN
Pass-through to
additional module
From circuit
breaker
To dimmed
load
From
Override
switch
From
Cresnet
Wire the GL-EXP-DIMFDB-CN
Pass-through to
additional
module
From circuit
breaker
To dimmed
load
From
Override
switch
From
Cresnet
Wire the GL-EXP-DIMFLV-CN
Pass-through to
additional
module
From circuit
breaker
To dimmed
load
From
Override
switch
From
Cresnet
NOTE: When wiring the GL-EXP-DIMFLV-CN, the 0-10V control wires from the + and –
terminals can be wired as Class 1 or Class 2. The unit ships with a barrier to the right of
the 0-10V terminal block for Class 1 wiring. If using Class 2 wiring, move this barrier to
the left of the 0-10V terminal block.
Wire the GL-EXP-SW-CN
Pass-through to
additional
module
From circuit
breaker
To switched
load
From
Override
switch
From
Cresnet
3. Replace the cover and cover screws.
4. Apply power to the module. The power indicator LED lights indicating that power is
supplied to the module.
Dimming Mode (GL-EXP-DIMU-CN Only)
The GL-EXP-DIMU-CN uses Autodetect mode to determine the attached load type and
applies Forward Phase (leading edge) or Reverse Phase (trailing edge) dimming mode.
Autodetect mode can be overridden to force a dimming mode. Disabling Autodetect mode
should not be necessary and is not recommended unless suggested by a Crestron technical
support representative.
WARNING: RISK OF SERIOUS PERSONAL INJURY. Turn off power at the circuit
breaker(s) prior to changing any switch settings. Changing settings with the power on
can result in serious personal injury and damage to the device.
WARNING: Incorrectly setting these switches to force the wrong mode can cause
damage to the dimmer and lighting xture.
The dimming mode can be changed by adjusting the SW3 and SW4 DIP switches as
detailed below.
SW3 SW4 DIMMING MODE LOAD TYPES
OFF OFF Autodetect
(default, recommended)
All
ON OFF Forward-phase Magnetic low-voltage, neon/cold
cathode, 2-wire dimmable uorescent
OFF ON Reverse phase Incandescent, electronic low-voltage
Zero-Cross Mode
Zero-cross mode is available for the GL-EXP-DIM-CN, GL-EXP-DIMFDB-CN, and
GL-EXP-DIMU-CN only.
The GL-EXP-DIM-CN, GL-EXP-DIMFDB-CN, and GL-EXP-DIMU-CN ship with SW1 set
to OFF. The dimmers should generally be left in this state. If unusual line conditions are
occurring (for example, a 3-1 ash pattern described in “Error States”) contact Crestron
Technical Support. Crestron Technical Support may recommend setting this switch to ON
for Filtered Zero-cross mode.
WARNING: RISK OF SERIOUS PERSONAL INJURY. Turn off power at the circuit
breaker(s) prior to changing any switch settings. Changing settings with the power on
can result in serious personal injury and damage to the device.
The Zero-cross mode is set using the SW1 DIP switch. Refer to the following table when
setting the Zero-cross mode.
Switch Settings for the SW1 DIP Switch
SW1 DESCRIPTION
OFF Simple Zero-cross mode.
ON Filtered Zero-cross mode.
Error States
The ERR LED ashes a specic pattern to indicate an error. The ash patterns are
described in the table below as, for example, 1-1 or 2-1. A 1-2 ash pattern means that
the LED ashes one time, pauses for one second, ashes two times, pauses for ve
seconds, and then repeats until the error is corrected.
LED FLASH
PATTERN
ERROR STATE
1-1 The slave processor is in bootloader.
1-2 The slave processor is unresponsive.
1-3 The slave processor rmware update failed.
2-1 There is an over-current error.
2-2 A FET is shorted.
2-3 An over-temperature error exists.
2-4 An over-voltage error exists.
3-1 A zero-cross sync error exists.
This product is Listed to applicable UL
®
Standards and requirements tested by Underwriters
Laboratories Inc.
Ce produit est homologué selon les normes et les exigences UL applicables par Underwriters
Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:(1)
This device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3(A)/NMB-3(A)
These products have been tested by Intertek Testing Services NA Inc. and comply with ANSI/UL
2043, the Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products and Their
Accessories Installed in Air-Handling Spaces-Third Edition.
The product warranty can be found at www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specic information, please visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Green Light, Cresnet, and Crestron Toolbox are either trademarks
or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. UL
and the UL logo are either trademarks or registered trademarks of Underwriters Laboratories, Inc. in the
United States and/or other countries. Other trademarks, registered trademarks, and trade names may
be used in this document to refer to either the entities claiming the marks and names or their products.
Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible
for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2017 Crestron Electronics, Inc.
Crestron Electronics, Inc. Installation Guide - DOC. 7583B
15 Volvo Drive, Rockleigh, NJ 07647 (2043187)
Tel: 888.CRESTRON 11.17
Fax: 201.767.7576 Specications subject to
www.crestron.com change without notice.
Product specificaties
| Merk: | Crestron |
| Categorie: | Niet gecategoriseerd |
| Model: | Green Light GL-EXP-DIMFLV-CN |
Heb je hulp nodig?
Als je hulp nodig hebt met Crestron Green Light GL-EXP-DIMFLV-CN stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Niet gecategoriseerd Crestron
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
15 Augustus 2025
14 Augustus 2025
14 Augustus 2025
14 Augustus 2025
Handleiding Niet gecategoriseerd
- Vello
- Needit
- Edimax
- LOKUKA
- Monitor Audio
- OP/TECH
- AZZA
- Robern
- Earthquake Sound
- Contemporary Research
- Klauke
- Waterstone
- Troy-Bilt
- Ibanez
- Omnires
Nieuwste handleidingen voor Niet gecategoriseerd
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
8 September 2025
